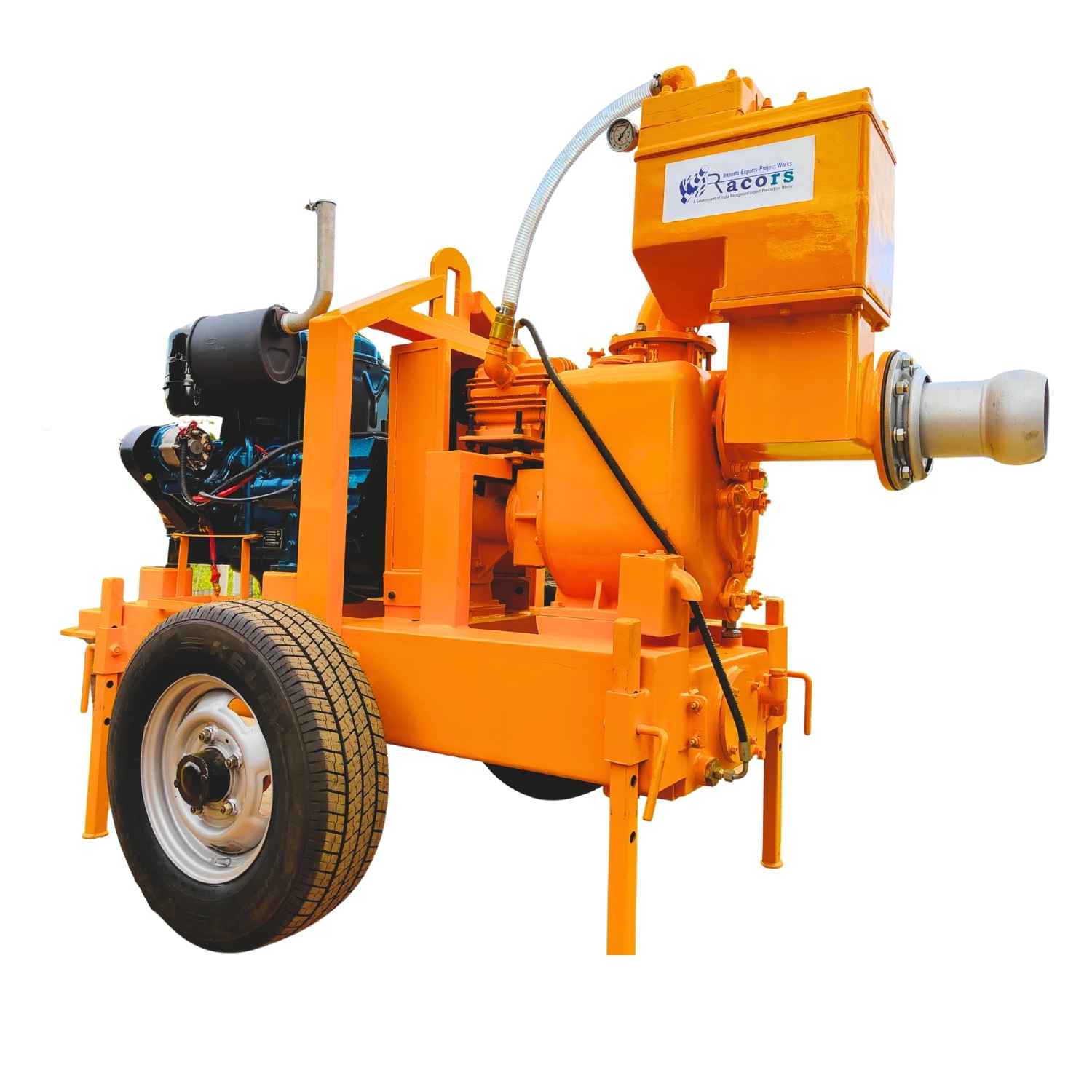

6" Vs dewatering pump
6 inch Vs dewatering pump
These pumps are designed for various applications including dewatering, sewage over pumping, drainage pumping, irrigation, mining, wastewater treatment, and rainwater management, as well as wellpoint and deepwell dewatering. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6” vs type dewatering pumps are given below
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 VS |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |
Racors 6-inch Vs type dewatering pumps, designated with model number Racors-150VS, feature a priming tank constructed from aluminum and are equipped with a two-wheel trolley for mounting. We have delivered 50 units of Vs type dewatering pumps for various government projects in Iraq. The Vs type pumps are highly sought after in African nations such as Nigeria, Kenya, South Africa, Uganda, and Namibia. Racors is recognized as a specialist in dewatering solutions, having supplied Vs type dewatering pumps, spare parts, and accessories to numerous sectors in Iraq. We have established ourselves as one of the leading suppliers of dewatering pumps in Iraq.
