6" dewatering pump

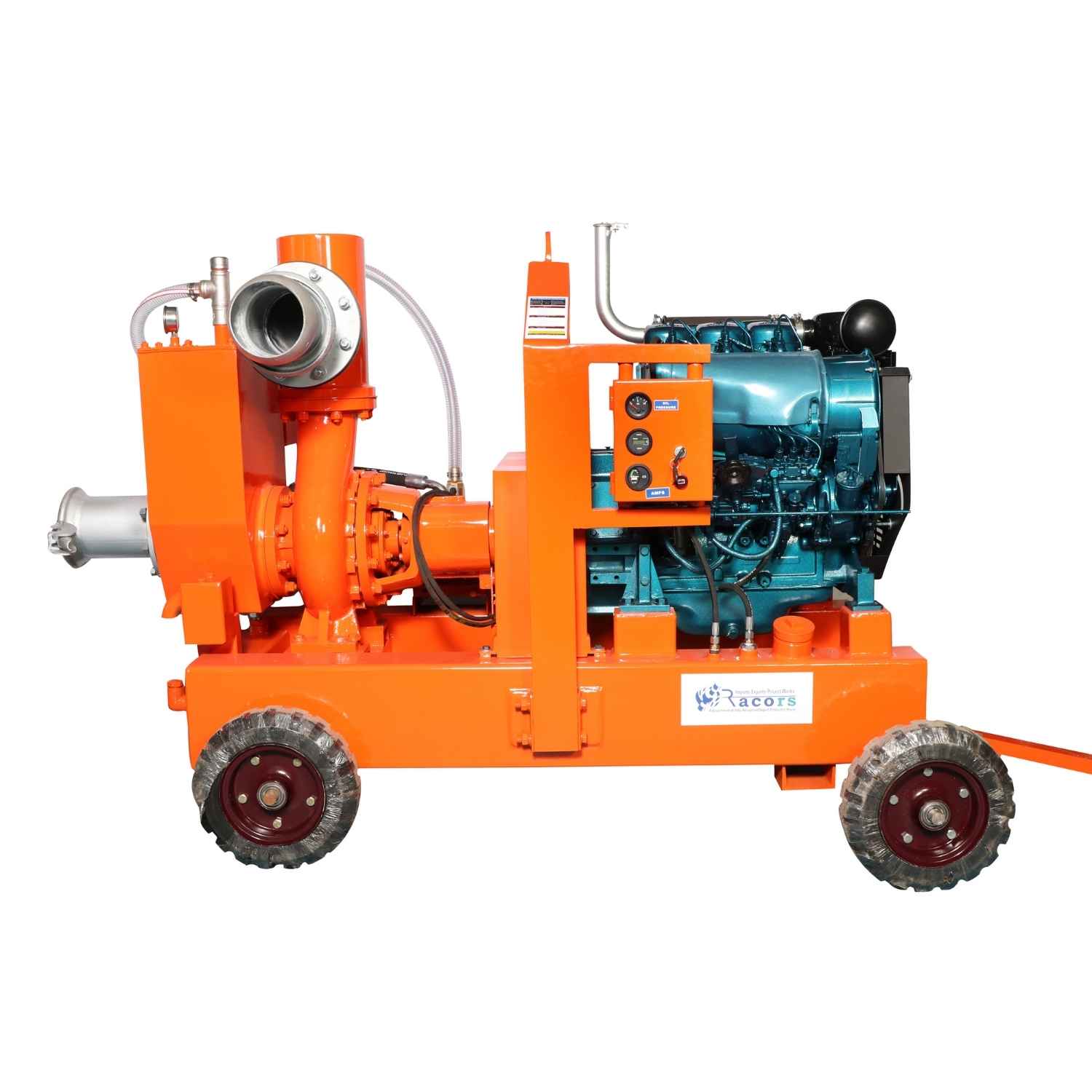

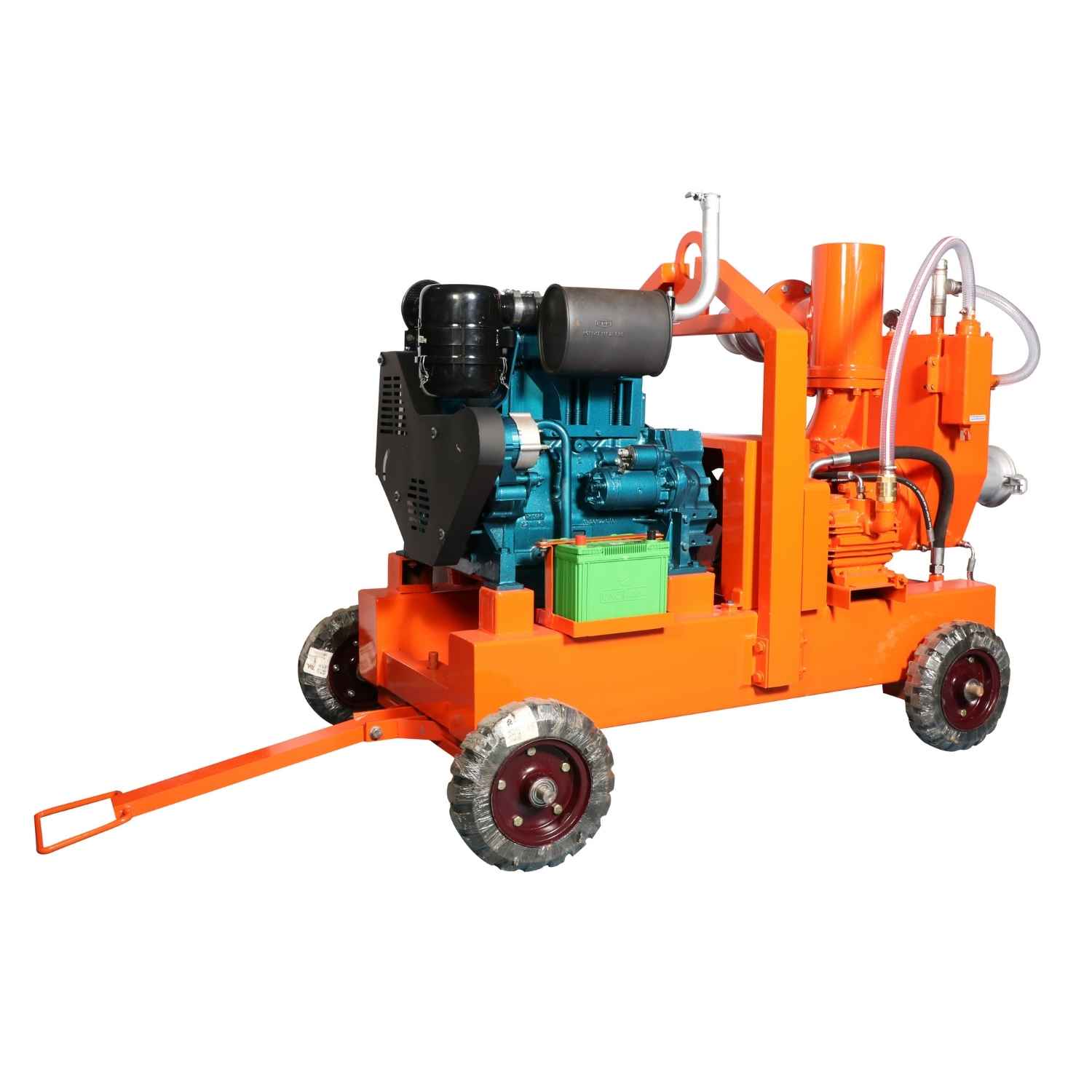

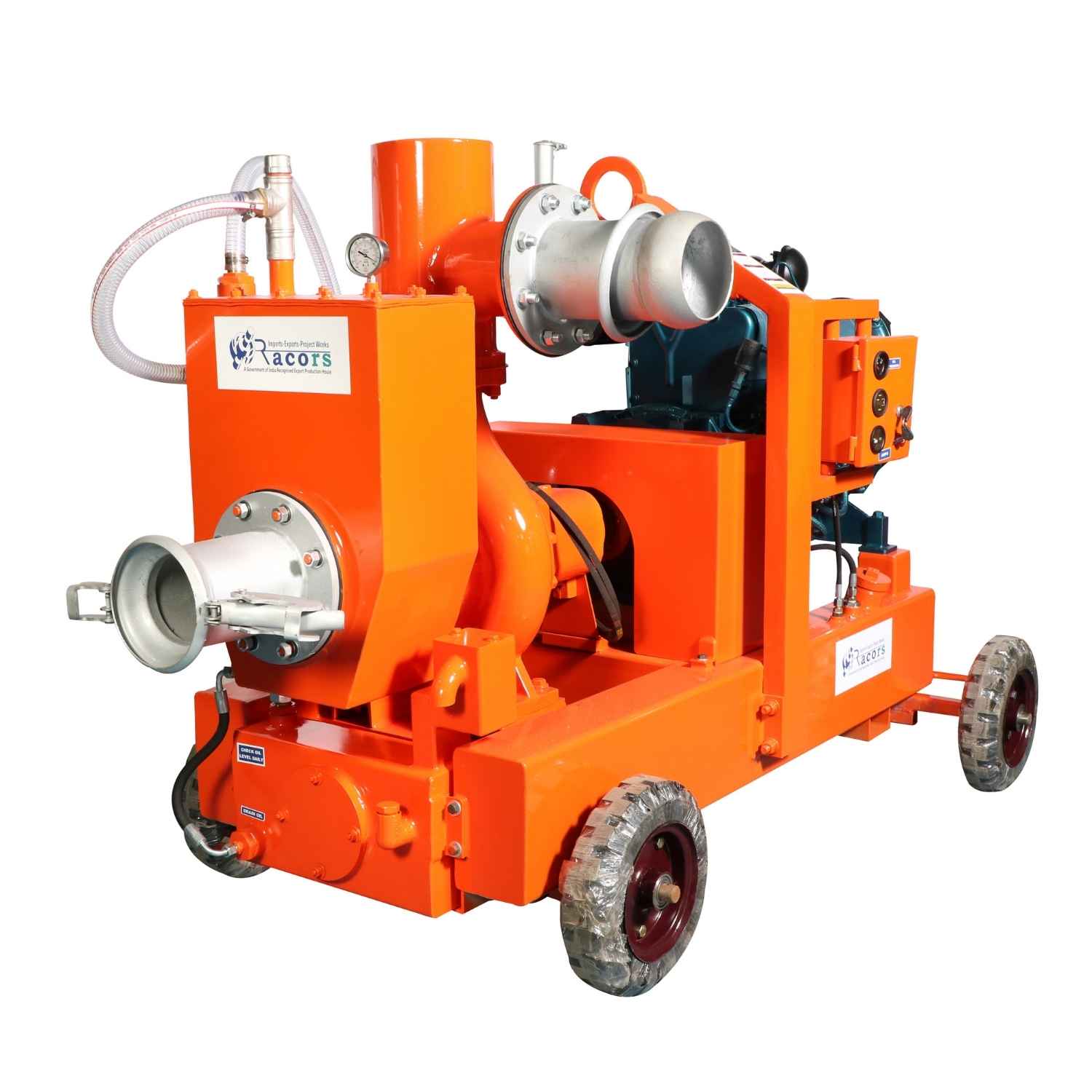

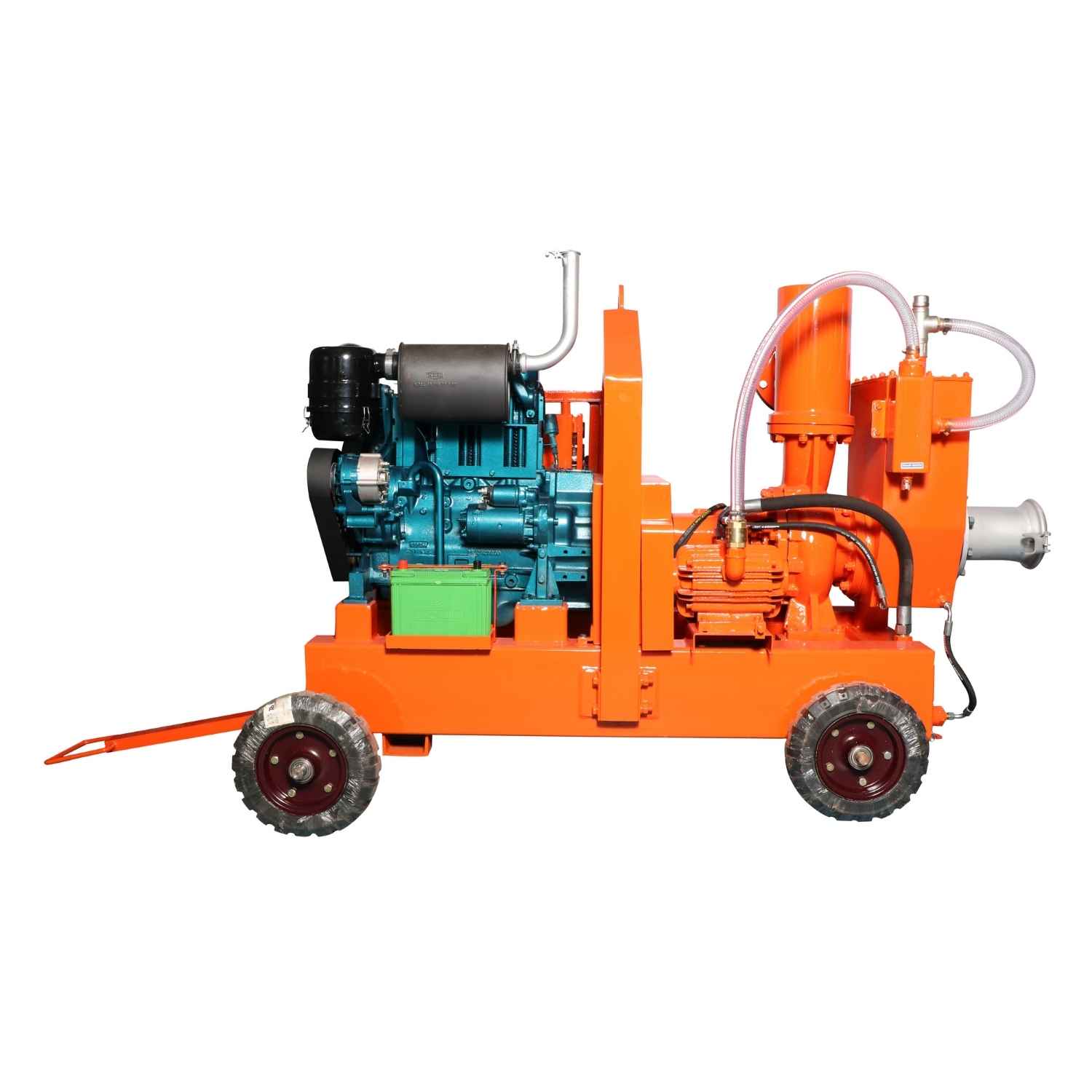

6 inch mi dewatering pump
These pumps are appropriate for dewatering, sewage over pumping, drainage pumping, irrigation, mining, sludge dewatering, and flood control. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6-inch miller type dewatering pumps are provided below
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Additionally, other engine brands such as Deutz, Eicher, and electric motors can be provided upon request.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |
Racors 6-inch dewatering pumps, identified by model number Racors-150, feature a priming tank constructed from Mild Steel or Stainless Steel (with Aluminium also available). The internal components are made of Teflon and Stainless Steel, which enhance the pump's longevity and efficiency. The volute casing is crafted from cast iron (with Stainless Steel also available) and is designed to optimize discharge through its shape. The shaft, impeller, stuffing box, and all other internal components are manufactured from stainless steel. Additionally, we produce pumps tailored to customer specifications, including Open Impeller pumps, electric motor-driven pumps, available in 2 or 4 wheel types, as well as skid-mounted variants. We have successfully supplied over 250 units of 6-inch dewatering pumps, along with essential dewatering spare parts such as mechanical seals, F80 tyres, bearings, rotor vanes, floats, shafts, and impellers, to leading construction industries. We are recognized as one of the premier vendors of dewatering pumps in Qatar, having supplied pumps for the FIFA WORLD CUP 2022, which is set to take place in Qatar. These pumps are utilized in various applications, including drainage systems, groundwater control, water treatment facilities, piling, and shoring in Doha, Qatar.
