6" dewatering pump

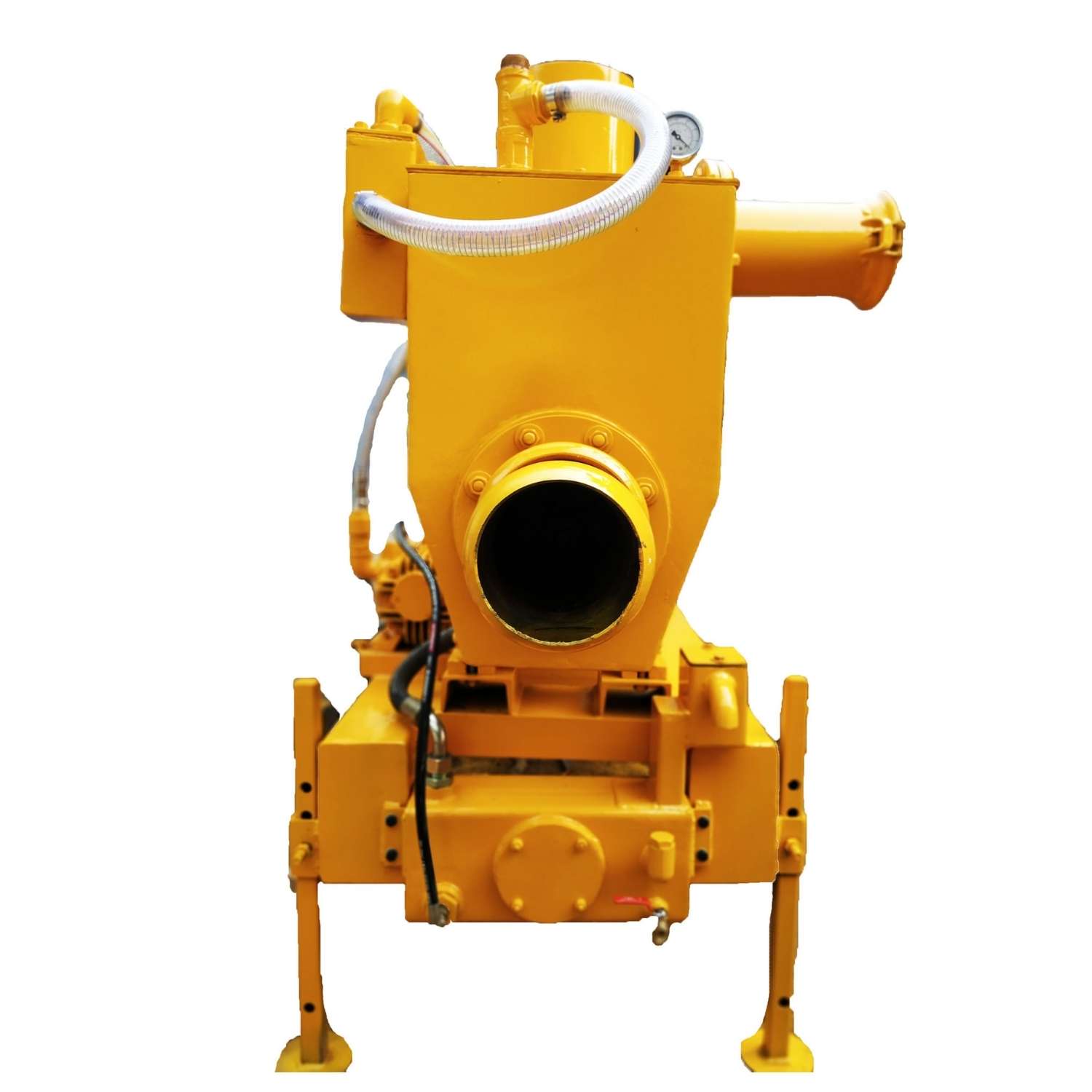

6 inch dewatering pump with water cooled engine
These pumps are appropriate for dewatering, bypass pumping, sewage treatment, oil and gas, chemical industries, irrigation facilities, mining sectors, and rainwater removal. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6-inch dewatering pumps are provided below.
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |

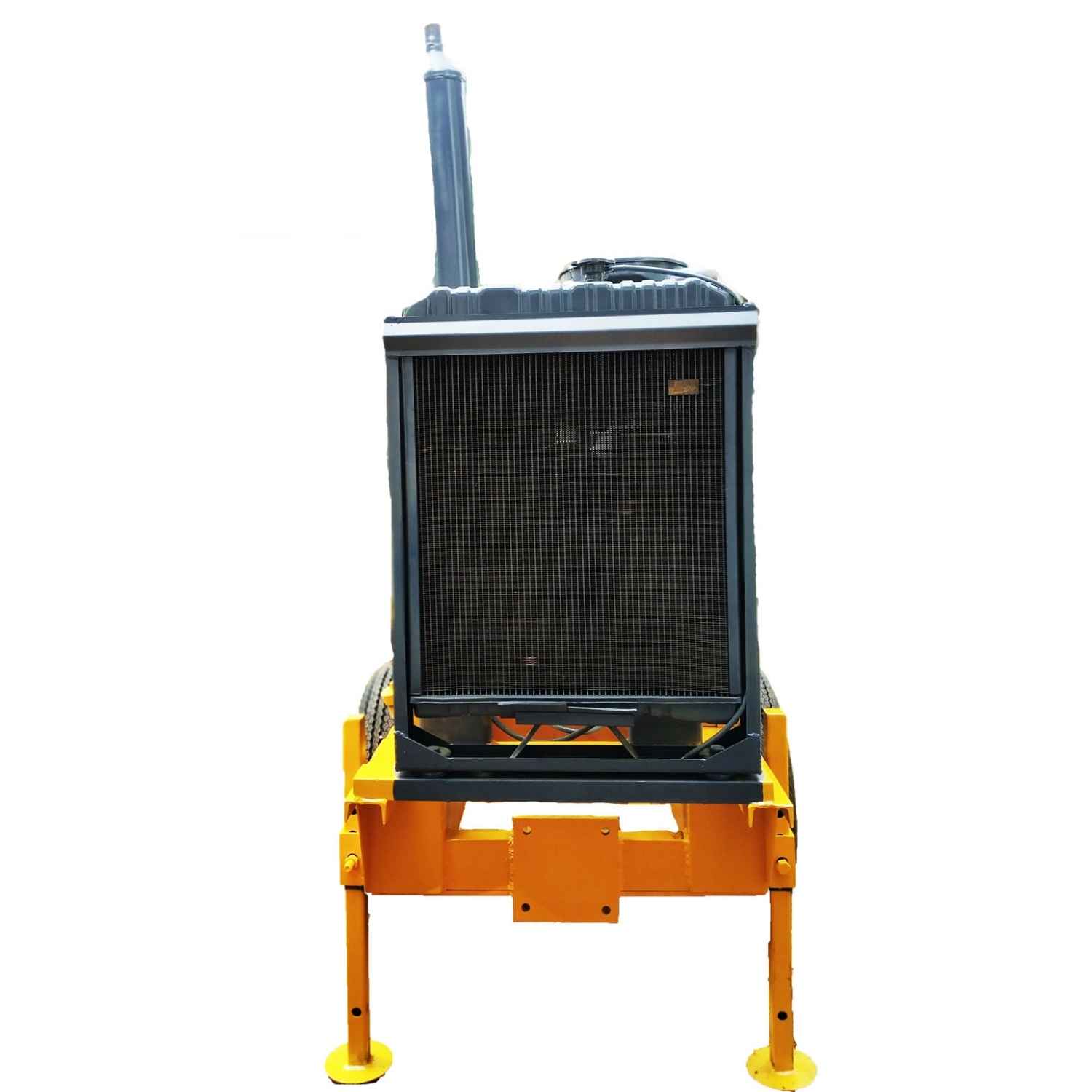

Racors 6-inch dewatering pumps equipped with a water-cooled engine, specifically model no. Racors-150WC, utilize the Kirloskar water-cooled engine to connect with the dewatering pump. We have provided these dewatering pumps to mining projects across India. Racors stands as one of the leading suppliers of dewatering pumps to the mining sector in India, serving various projects in Telangana, Andhra Pradesh, Maharashtra, Odisha, Rajasthan, New Delhi, Bihar, Karnataka, Gujarat, Tamil Nadu, and Kerala.
Categories : Dewatering pumps, Mining, Mining pumps, Mining industries, Mining in India, High head pumps, water cooled engine.
