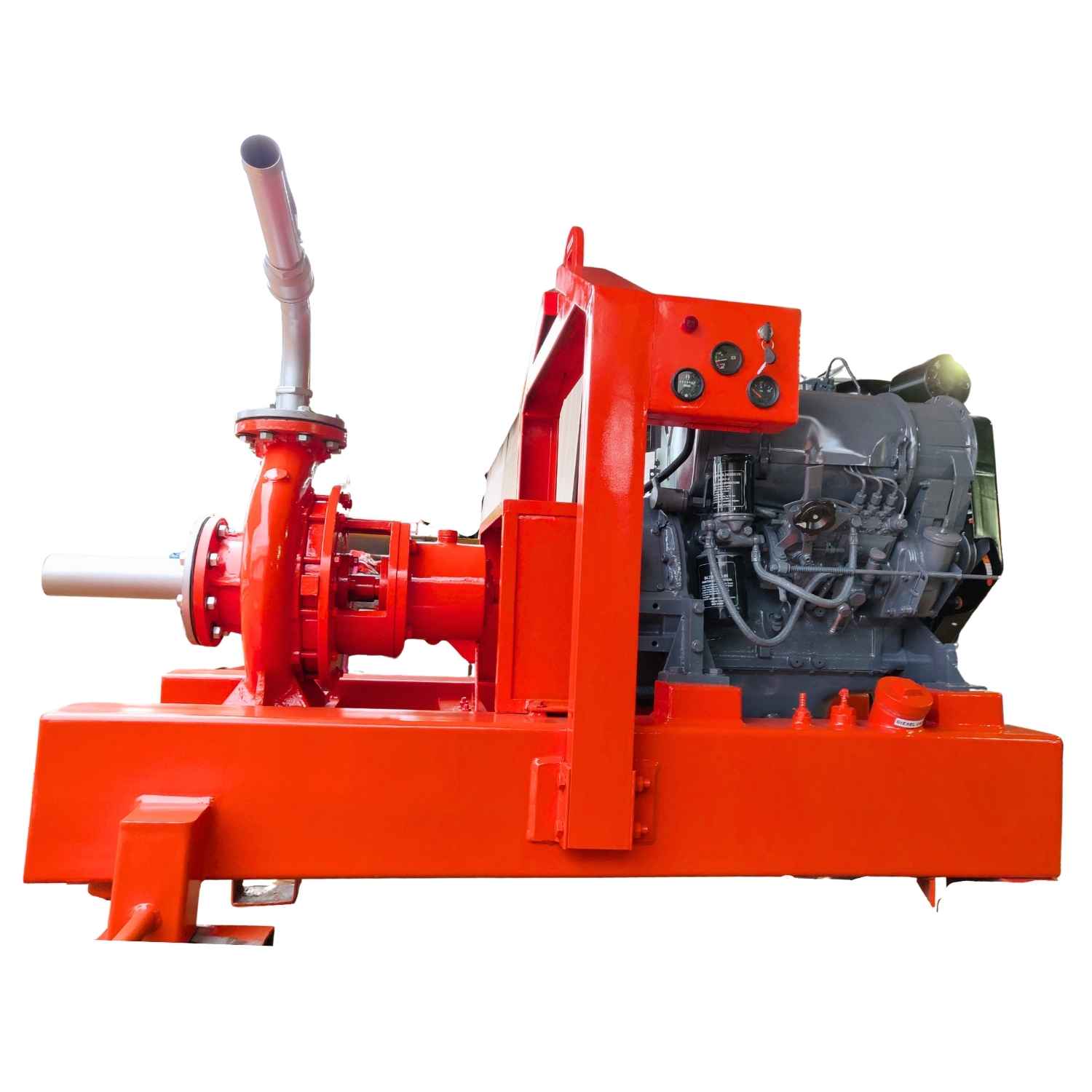

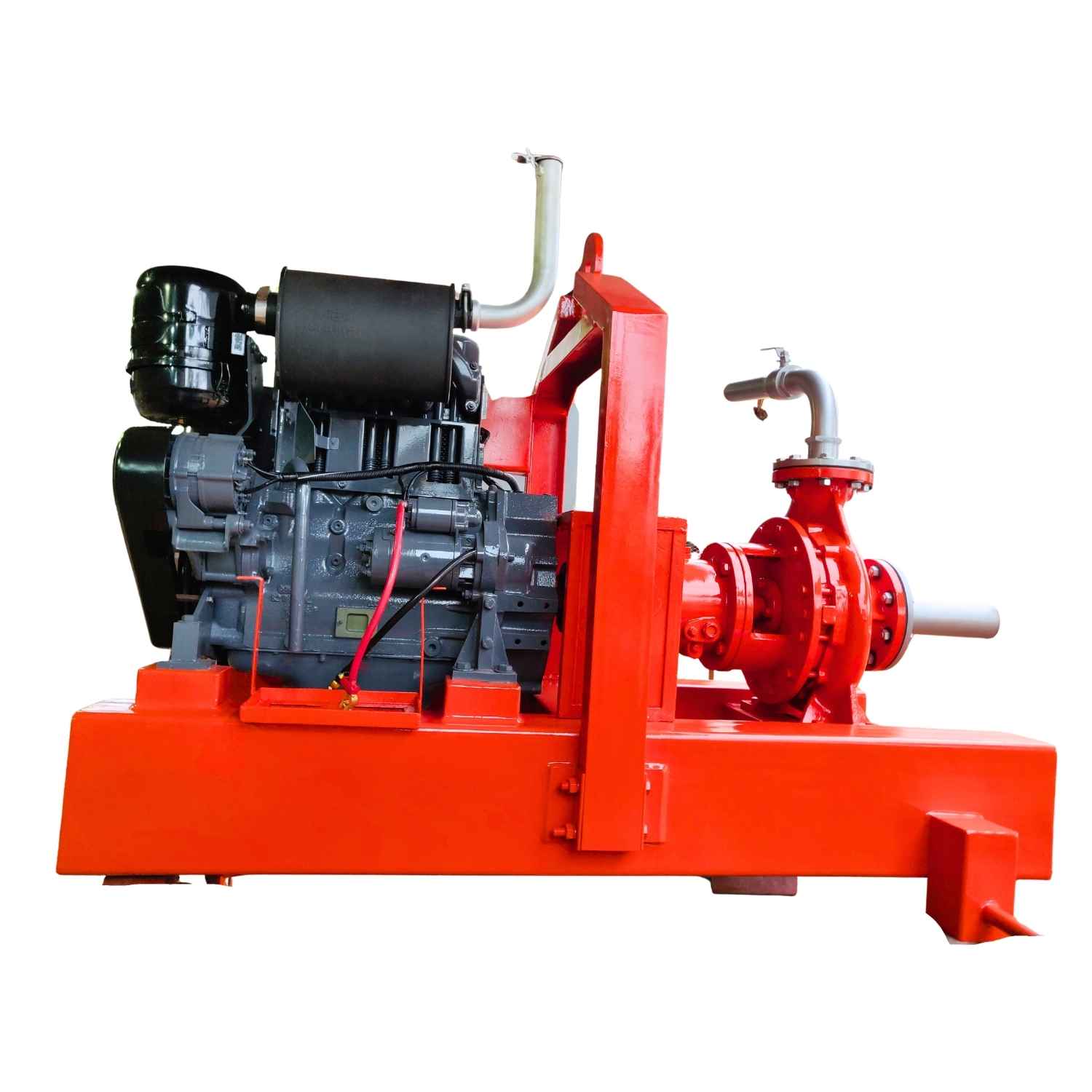

3" jetting pump
Pump Specification
3 inch jetting pump data sheet
Download pdf
The technical specifications for 3” jetting dewatering pumps are given below
| Pump Make | Racors |
|---|---|
| Model | Racors - 75 J |
| Suction x Discharge | 3” x 3” (75 mm x 50 mm) |
| Max. Head | 40 mtr. |
| Working pressure | 5 to 10 bar |
Engine Specification
By default, the pumps are coupled with Kirloskar engines. Upon special request, other engine manufacturers like Deutz, Eicher, and electric motors can also be supplied.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 41 HP |
| Speed | 2000 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting panel |
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 120 liters. |
Weight & Dimensions
| Weight without engine | 500 kg |
|---|---|
| Weight with engine | 850 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 4 nos |
| 40 ft container | 8 nos |
The Racors 3-inch jetting pump, designated as model number Racors-75J, is offered in both diesel and electric variants. Additional options and sizes can be provided based on customer specifications. Racors is recognized as one of the leading suppliers of jetting pumps in the UAE, particularly for applications where well points must be established without the need for drilling.
