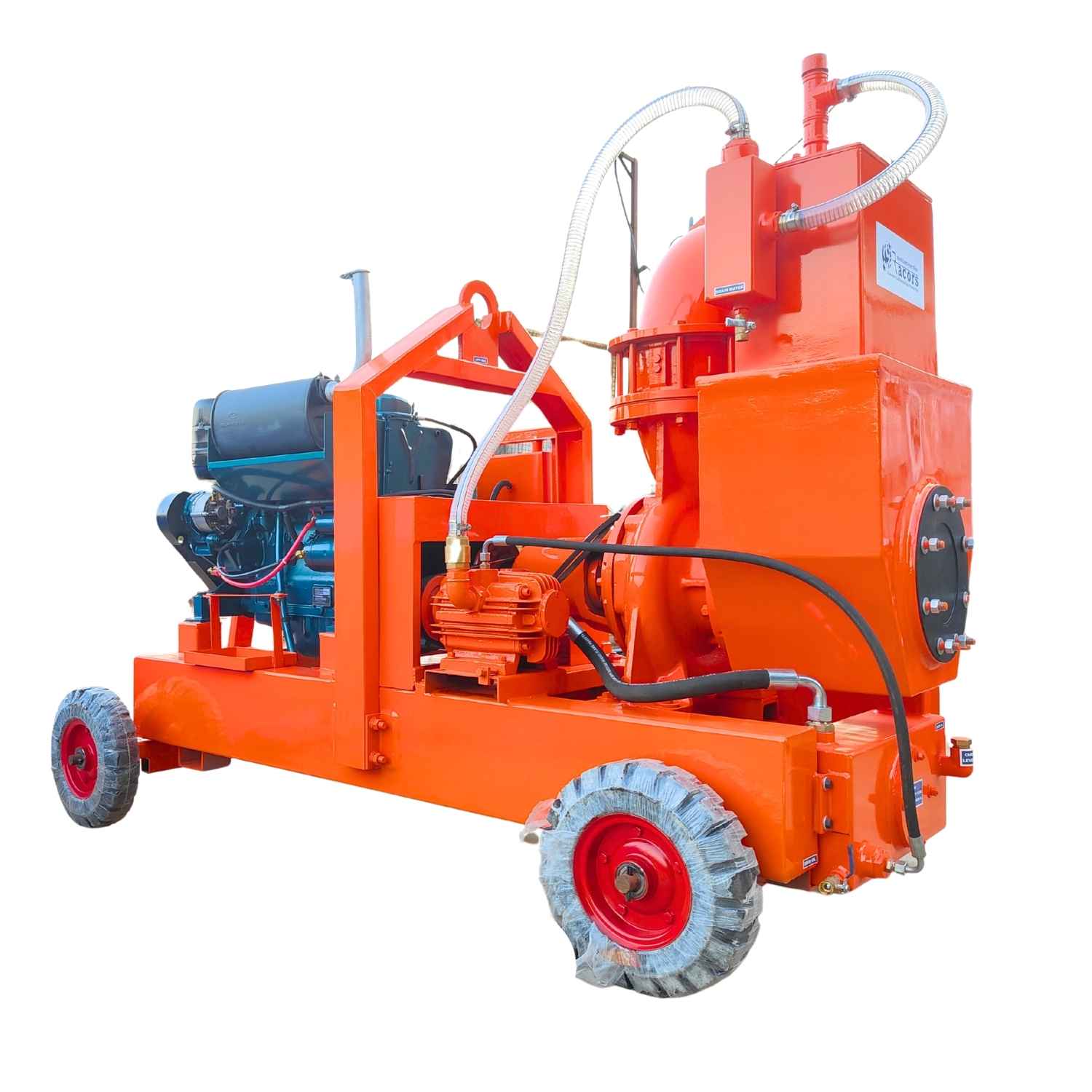

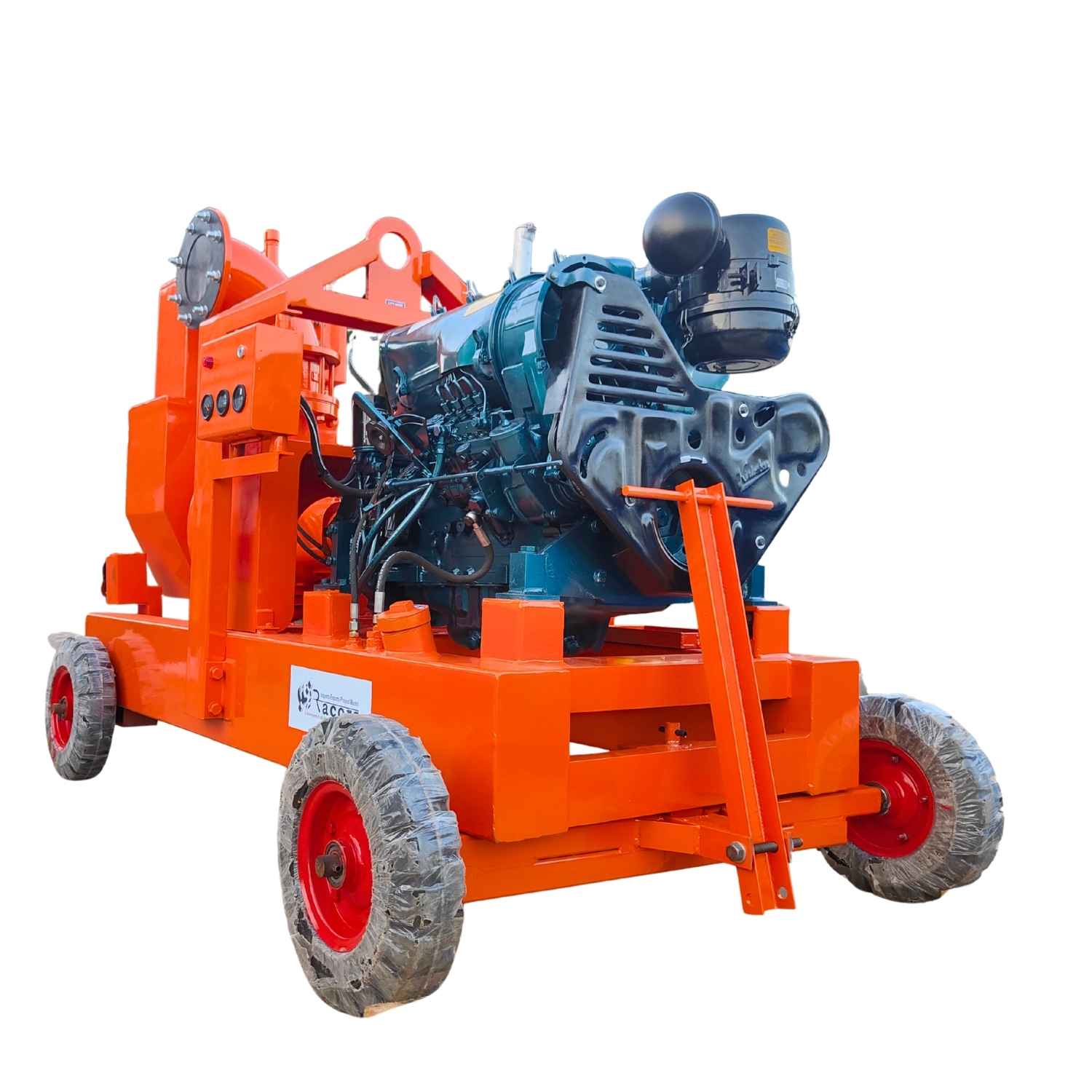

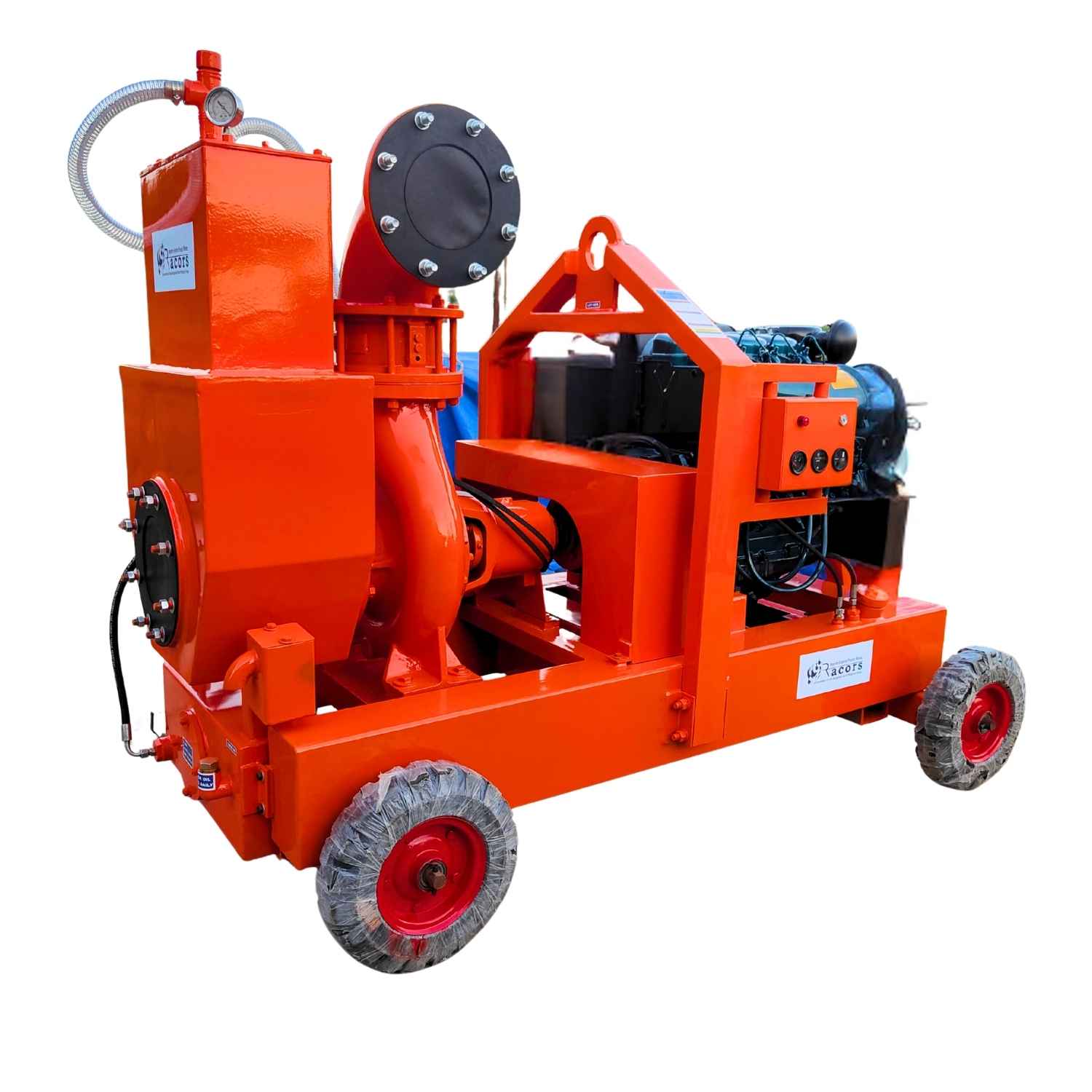

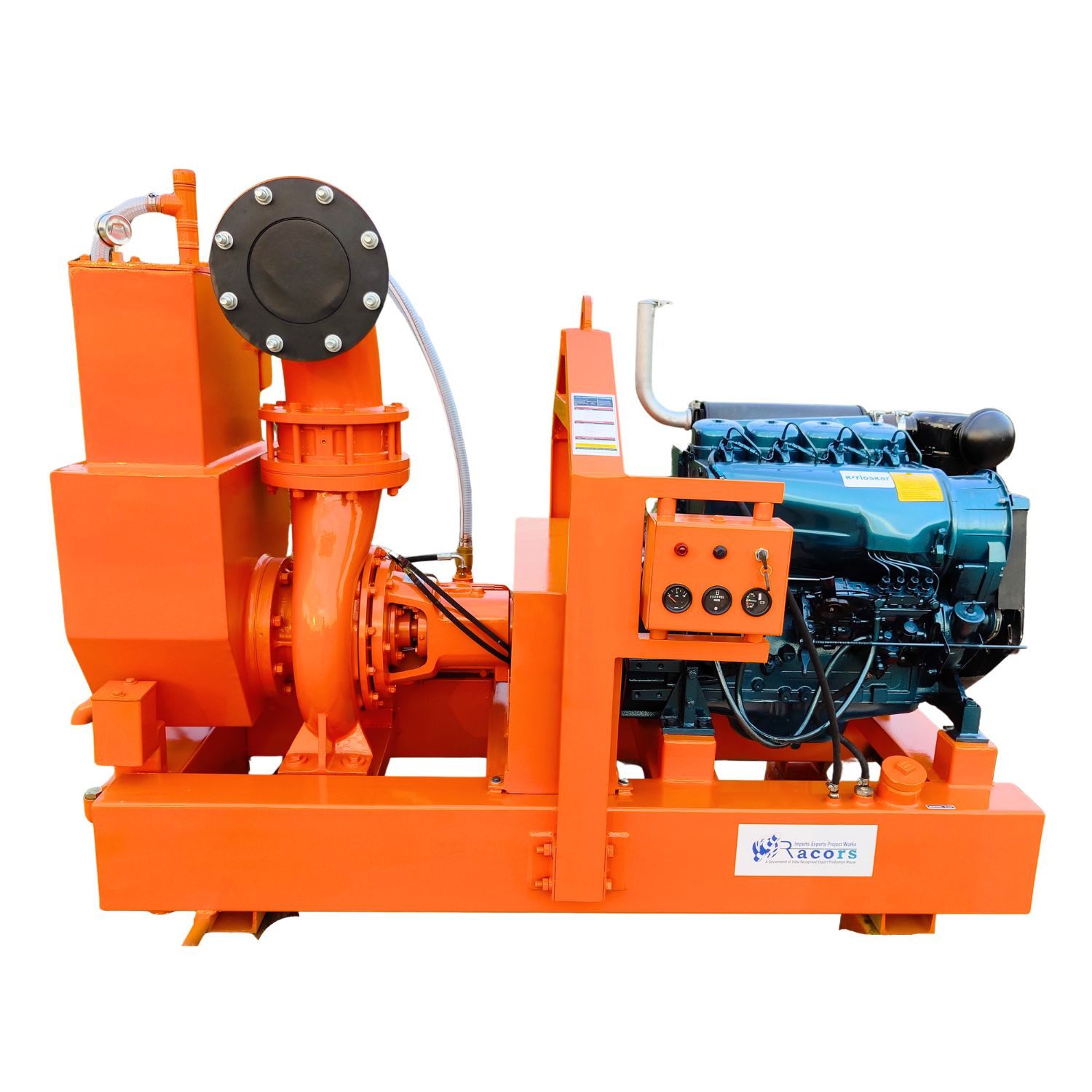

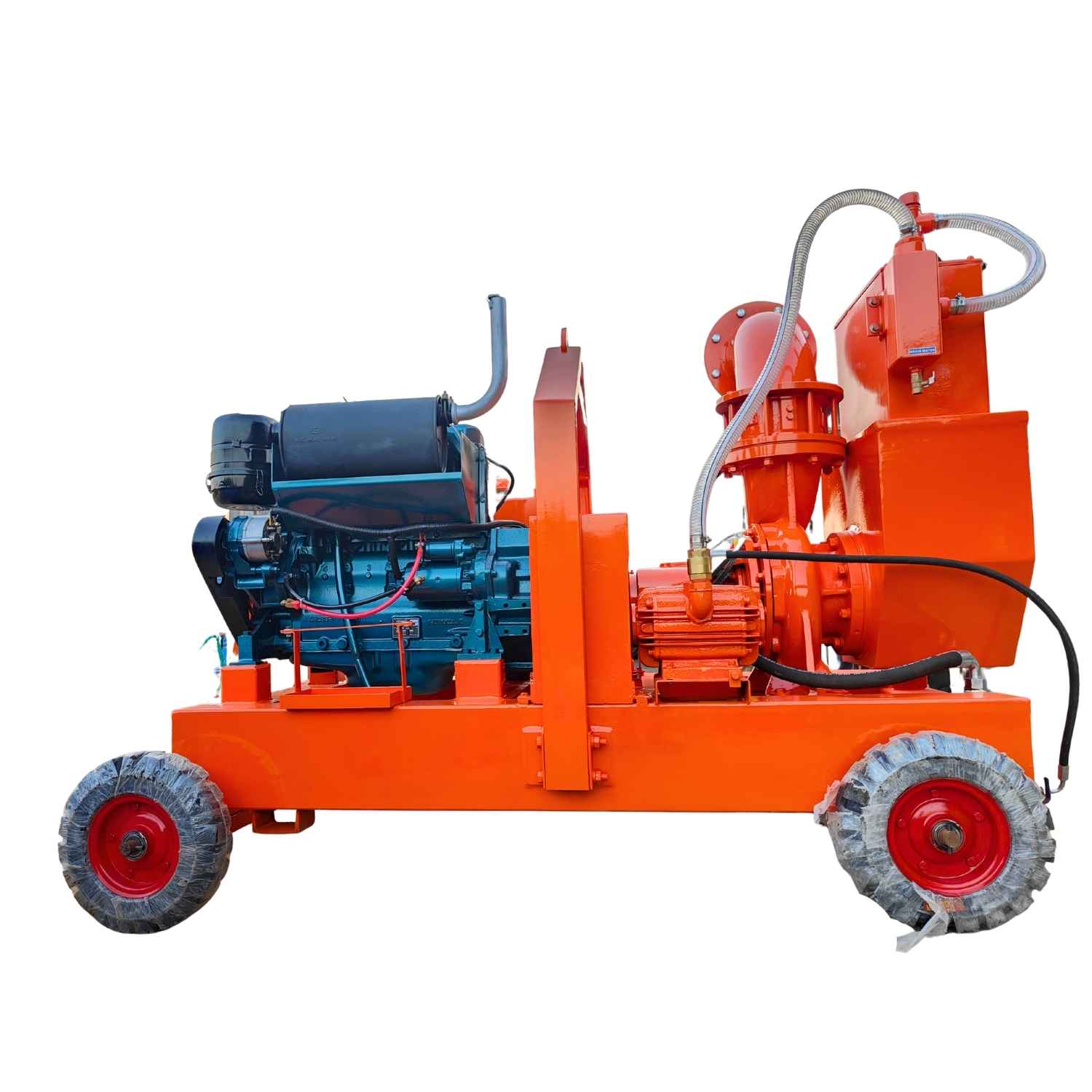

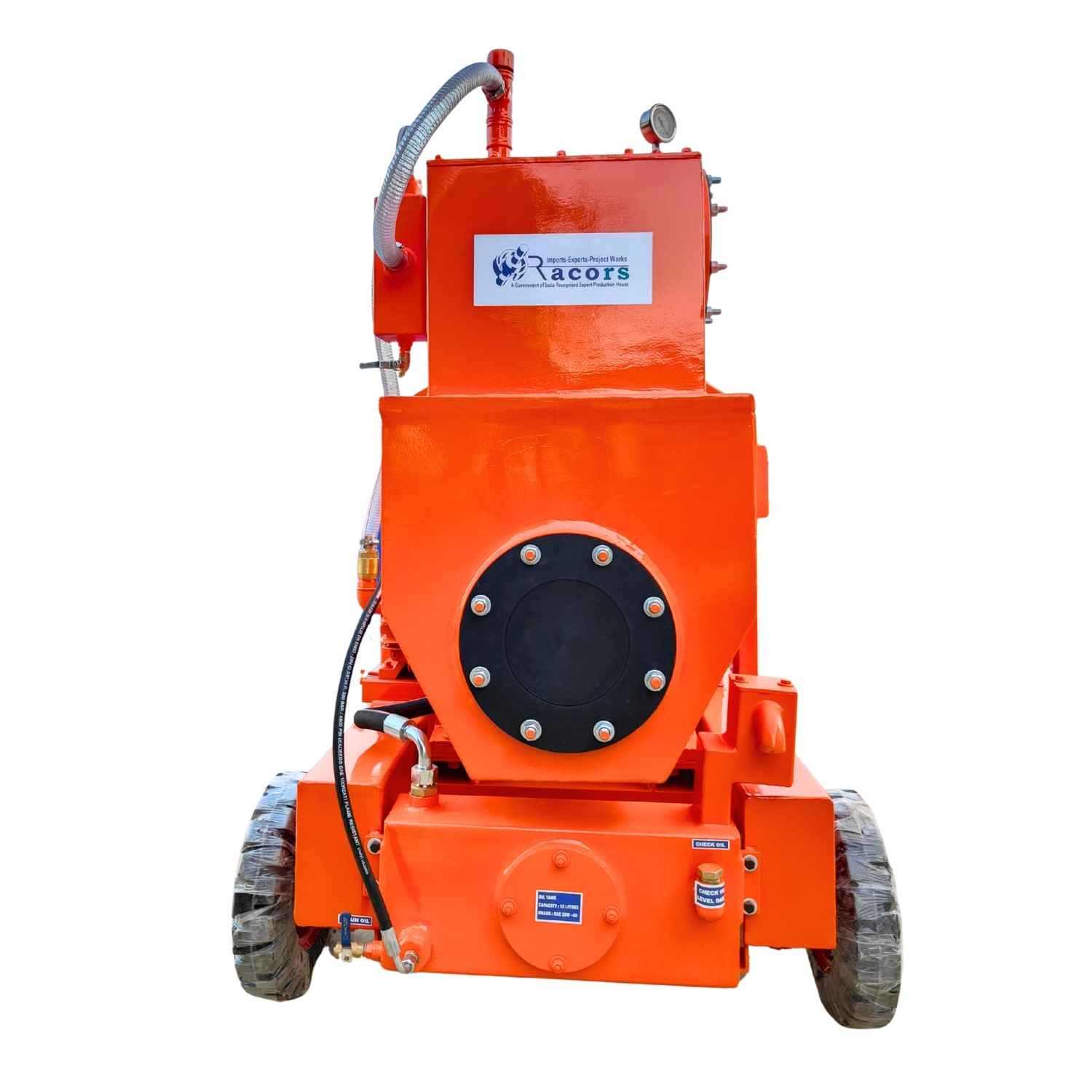

8" Mi dewatering pump
8 inch mi dewatering pump
These pumps are appropriate for applications such as dewatering, wellpoint, deep well, mining, shoring, piling, offshore, marine, and water treatment. The suction and discharge dimensions are 200 x 200 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
8 inch dewatering pump data sheet
Download pdf
The technical specifications for 8” dewatering pumps are given below
| Pump Make | Racors |
|---|---|
| Model | Racors - 200 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 550 m3/hr |
| Suction x Discharge | 8” x 8” (200 mm x 200 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
By default, the pumps are connected to Kirloskar engines. Upon request, other brands of engines such as Deutz and Eicher, as well as electric motors, can also be provided.
| Engine | Kirloskar HA 494, 4 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 52 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 183 liters. |
Weight & Dimensions
| Weight without engine | 600 kg |
|---|---|
| Weight with engine | 1100 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 4 nos |
| 40 ft container | 8 nos |
Racors 8-inch Mi type dewatering pumps, designated with model number Racors-200, have a priming tank made from either Mild Steel or Stainless Steel. Racors is recognized as a premier vendor of dewatering pumps in the Middle East, regularly supplying 8" dewatering pumps for high discharge applications.
