14" dewatering pump
14 inch dewatering pump
These pumps are appropriate for dewatering, flood water removal, oil and gas applications, marine operations, sea water transfer, the chemical industry, and mining sectors. The suction and discharge dimensions are 300 x 300 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
14 inch dewatering pump data sheet
Download pdf
The technical specifications for 14-inch dewatering pumps are outlined below
| Pump Make | Racors |
|---|---|
| Model | Racors - 350 |
| Flow rate | 1500 m3/hr |
| Head | 30 mtr. |
| Size | 350 mm x 300 mm |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Engine | KIRLOSKAR 6SL8800TA, Water cooled Diesel Engine |
|---|---|
| Capacity | 313 HP |
| Speed | 1800 RPM |

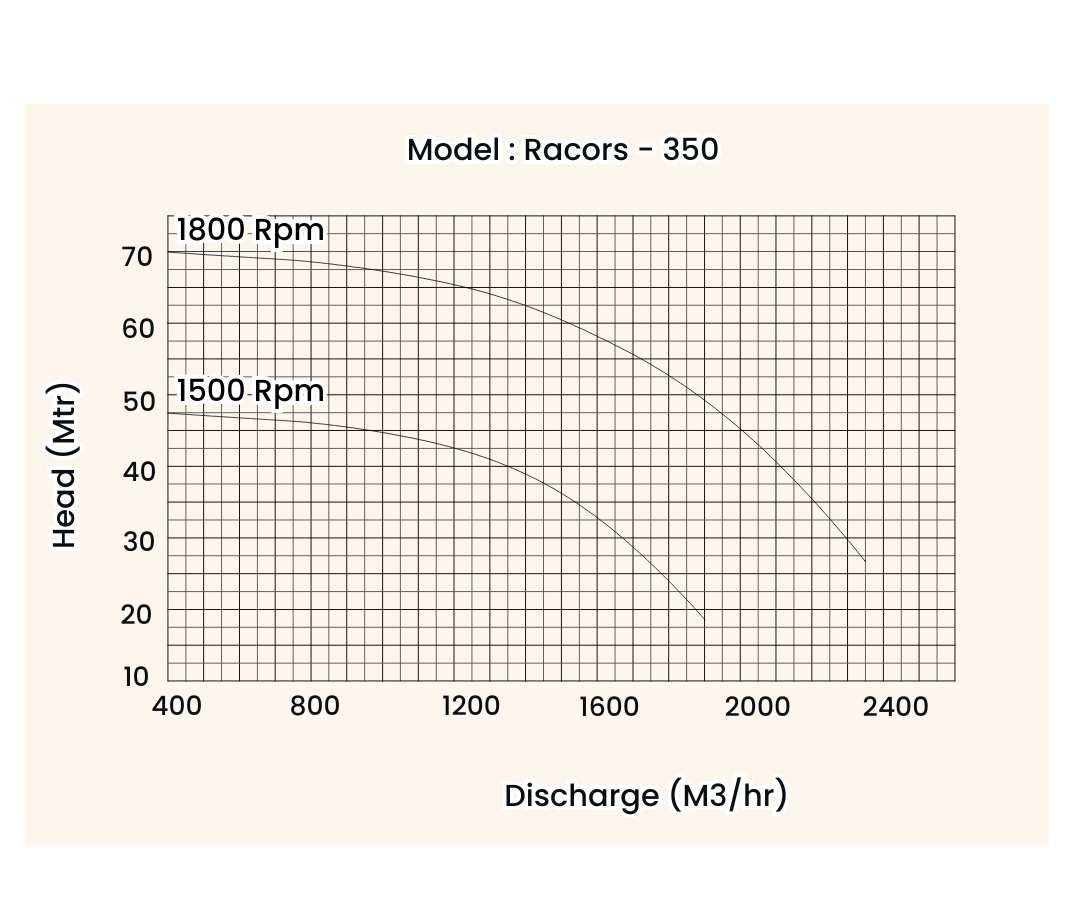

Performance curve
Weight & Dimensions
| Weight without engine | 2960 kg |
|---|---|
| Weight with engine | 3960 kg |
| Length x width x height(cm) | 365 x 152 x 252cm |
| 20ft container | 1 nos |
| 40 ft container | 2 nos |
The Racors 14-inch dewatering pump, designated as model no. Racors-350, is designed for high discharge applications reaching up to 1500 m3/hr. We have provided 5 units of the 14" dewatering pumps to the Jeddah municipality for drainage purposes, during which the Saudi Government recognized Racors as one of the leading suppliers of dewatering pumps in the Kingdom of Saudi Arabia.
