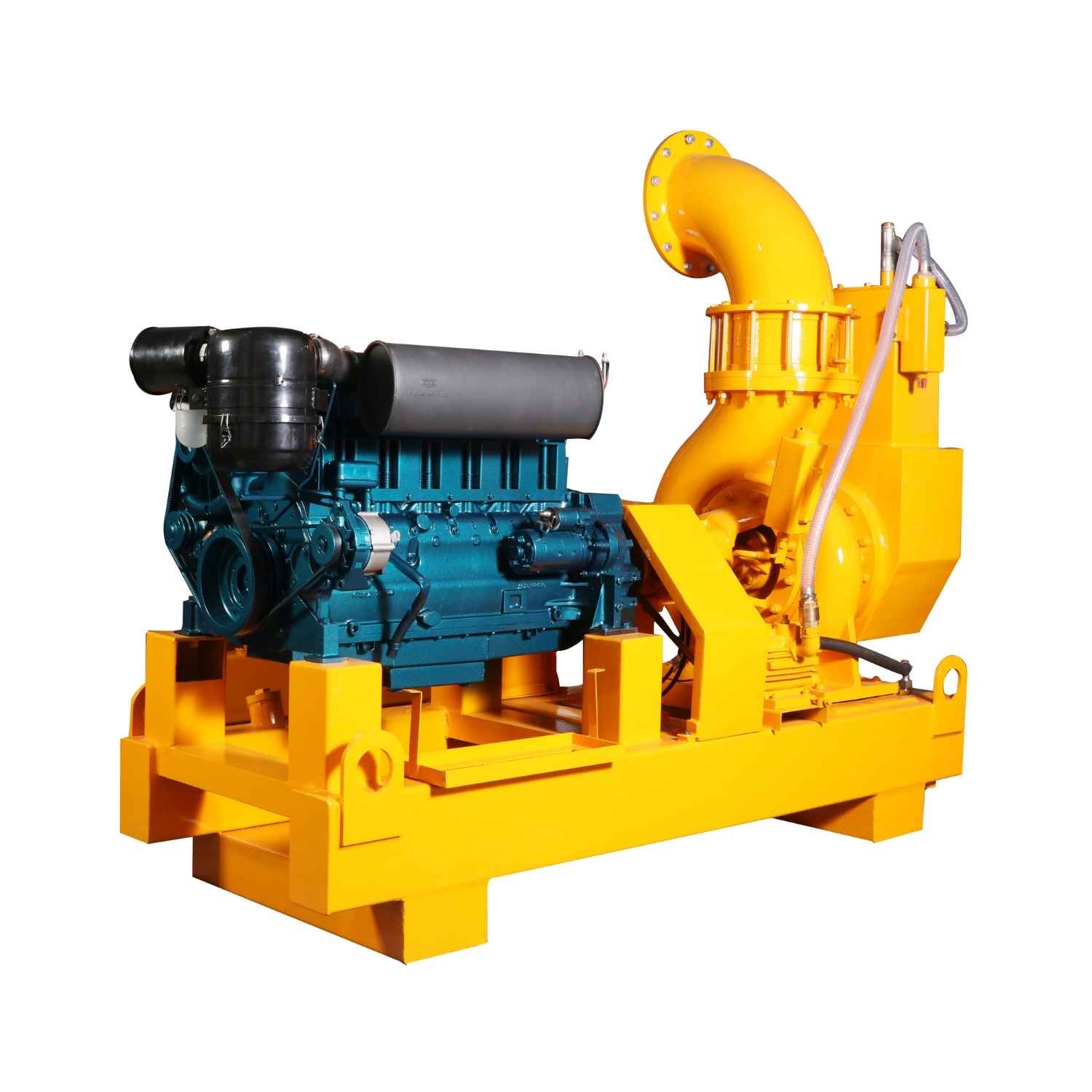

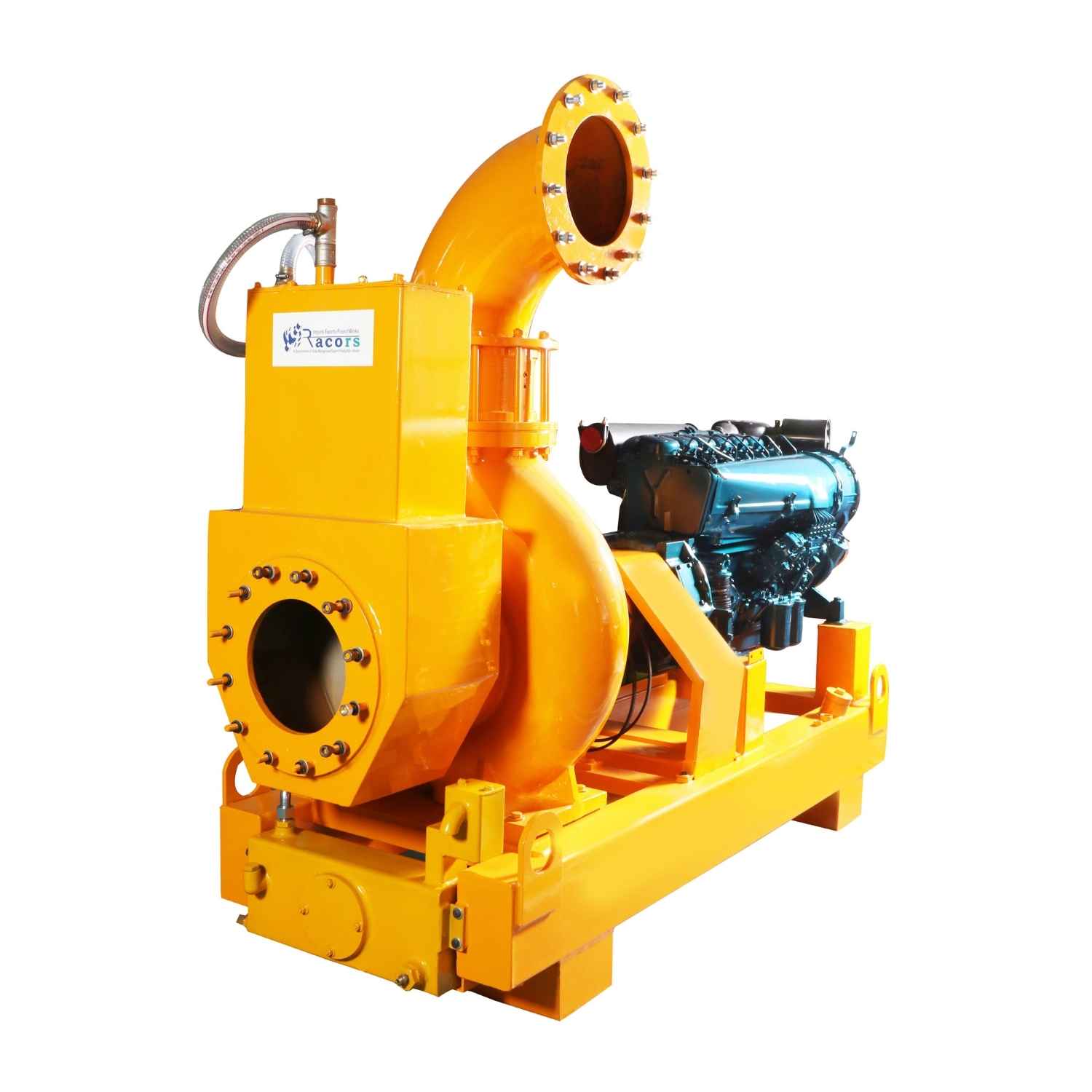

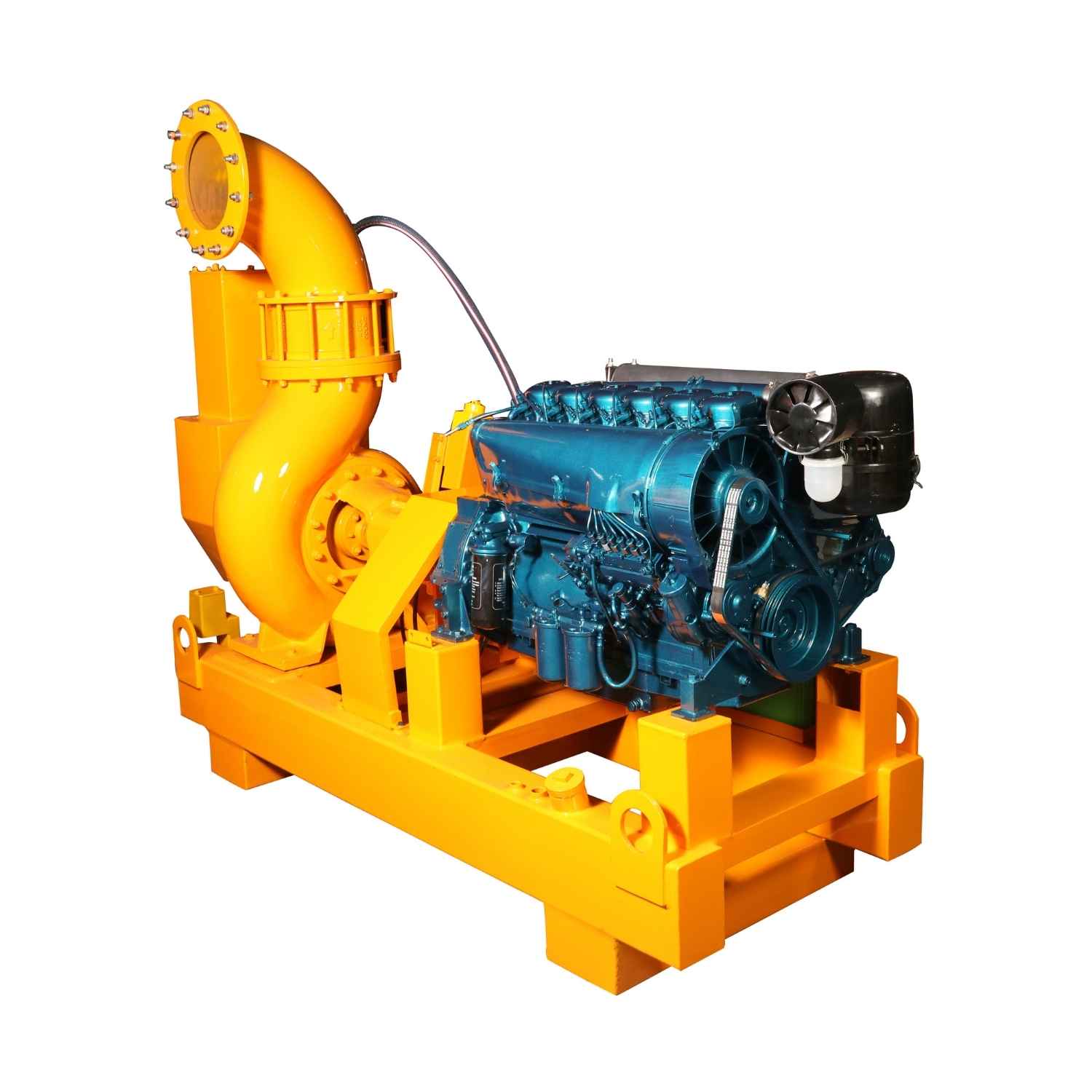

12" dewatering pump
12 inch dewatering pump
These pumps are appropriate for dewatering, flood water removal, oil and gas applications, marine operations, sea water transfer, the chemical industry, and mining sectors. The suction and discharge dimensions are 300 x 300 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
12 inch dewatering pump data sheet
Download pdf
The technical specifications for 12-inch dewatering pumps are outlined below
| Pump Make | Racors |
|---|---|
| Model | Racors - 300 |
| Vacuum Capacity | 70 cfm (Double Vacuum motor) |
| Max. Water Flow | 1250 m3/hr |
| Suction x Discharge | 12” x 12” (300 mm x 300 mm) |
| Max. Head | 30 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Engine | Kirloskar HA 694, 6 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 78 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 220 liters. |
Weight & Dimensions
| Weight without engine | 700 kg |
|---|---|
| Weight with engine | 1200 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 2 nos |
| 40 ft container | 4 nos |
The Racors 12-inch Miller type dewatering pump, designated as model no. Racors-300, is designed for high discharge applications reaching up to 1250 m3/hr. We have provided 10 units of the 12" dewatering pumps to the Jeddah municipality for drainage purposes, during which the Saudi Government recognized Racors as one of the leading suppliers of dewatering pumps in the Kingdom of Saudi Arabia.
