8" dewatering pump

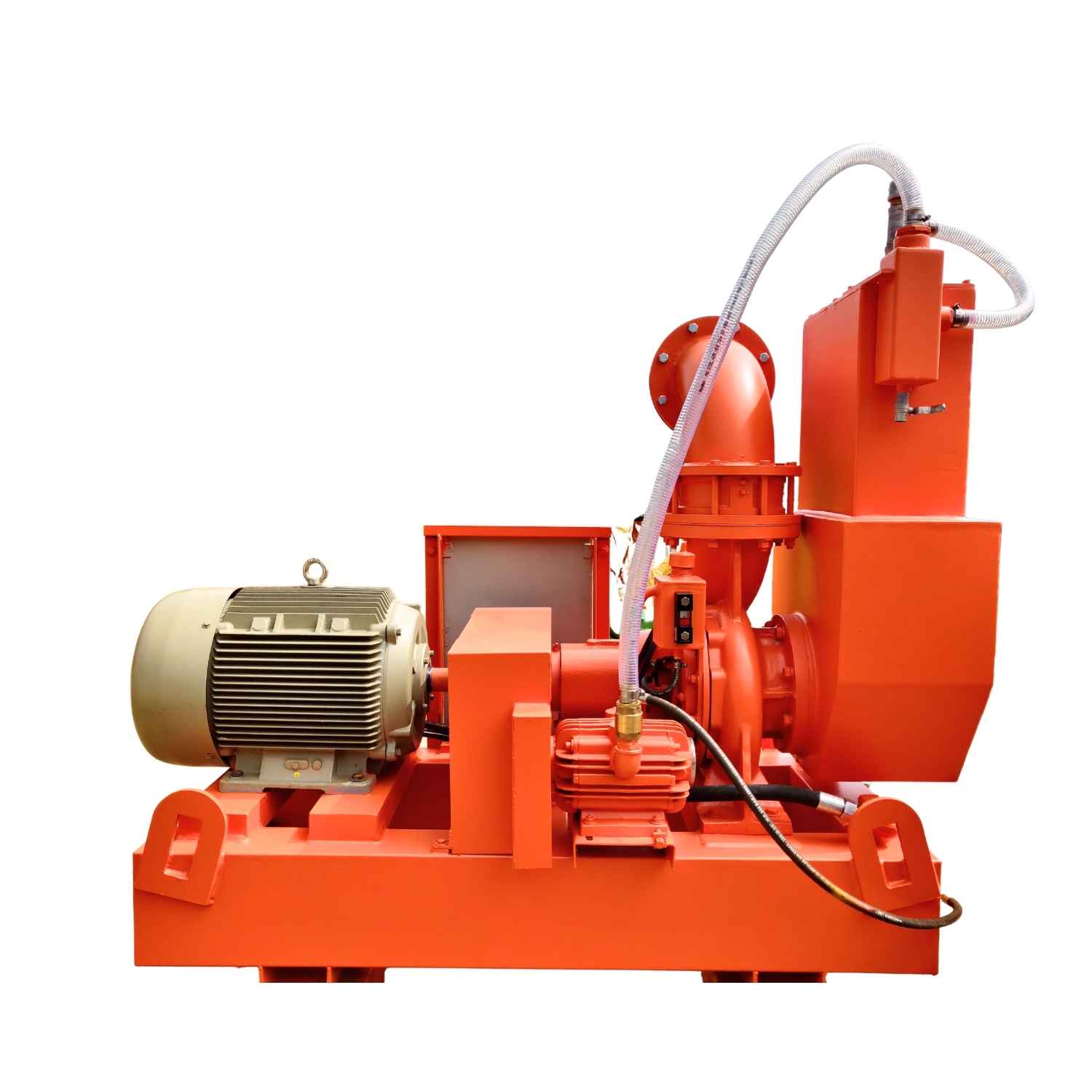

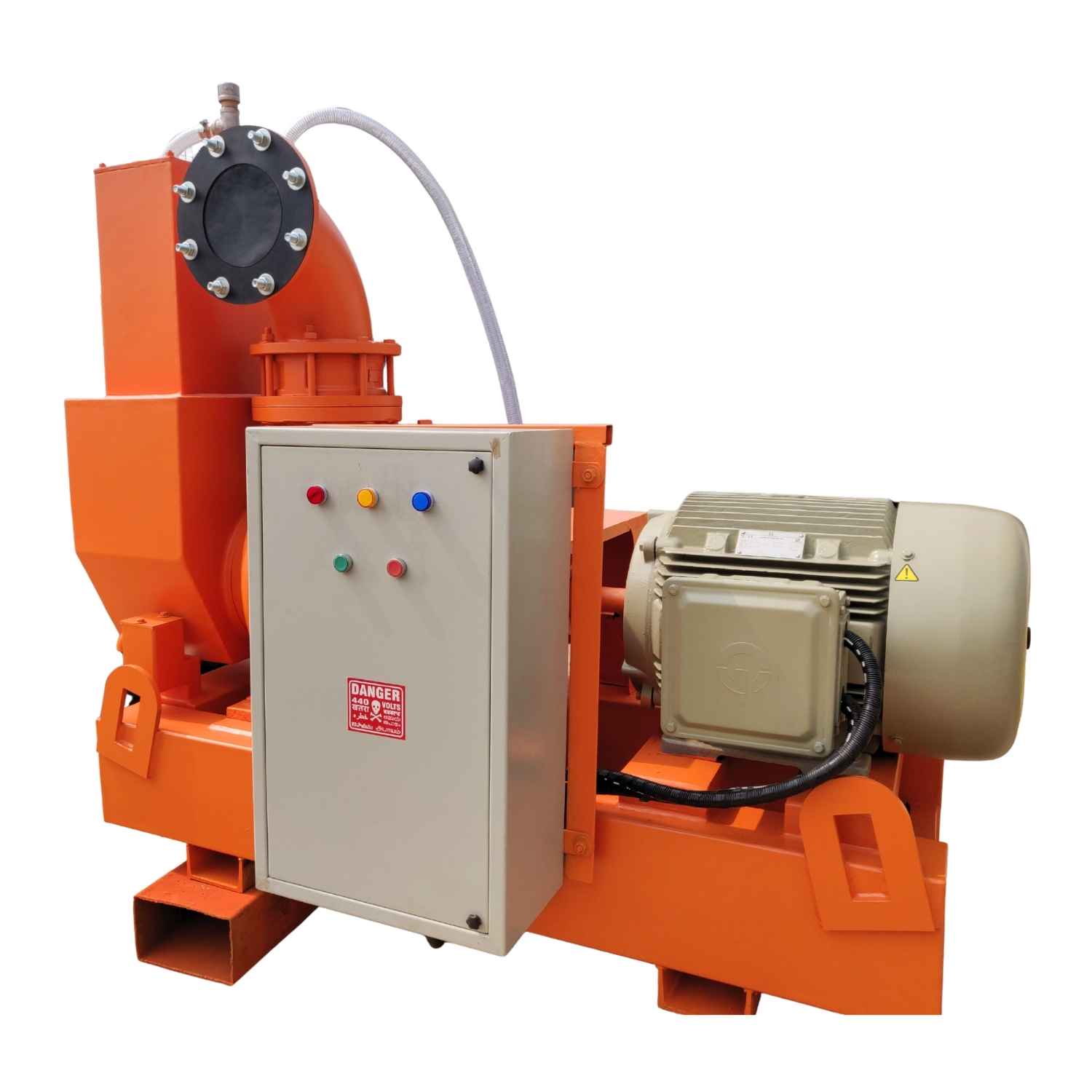

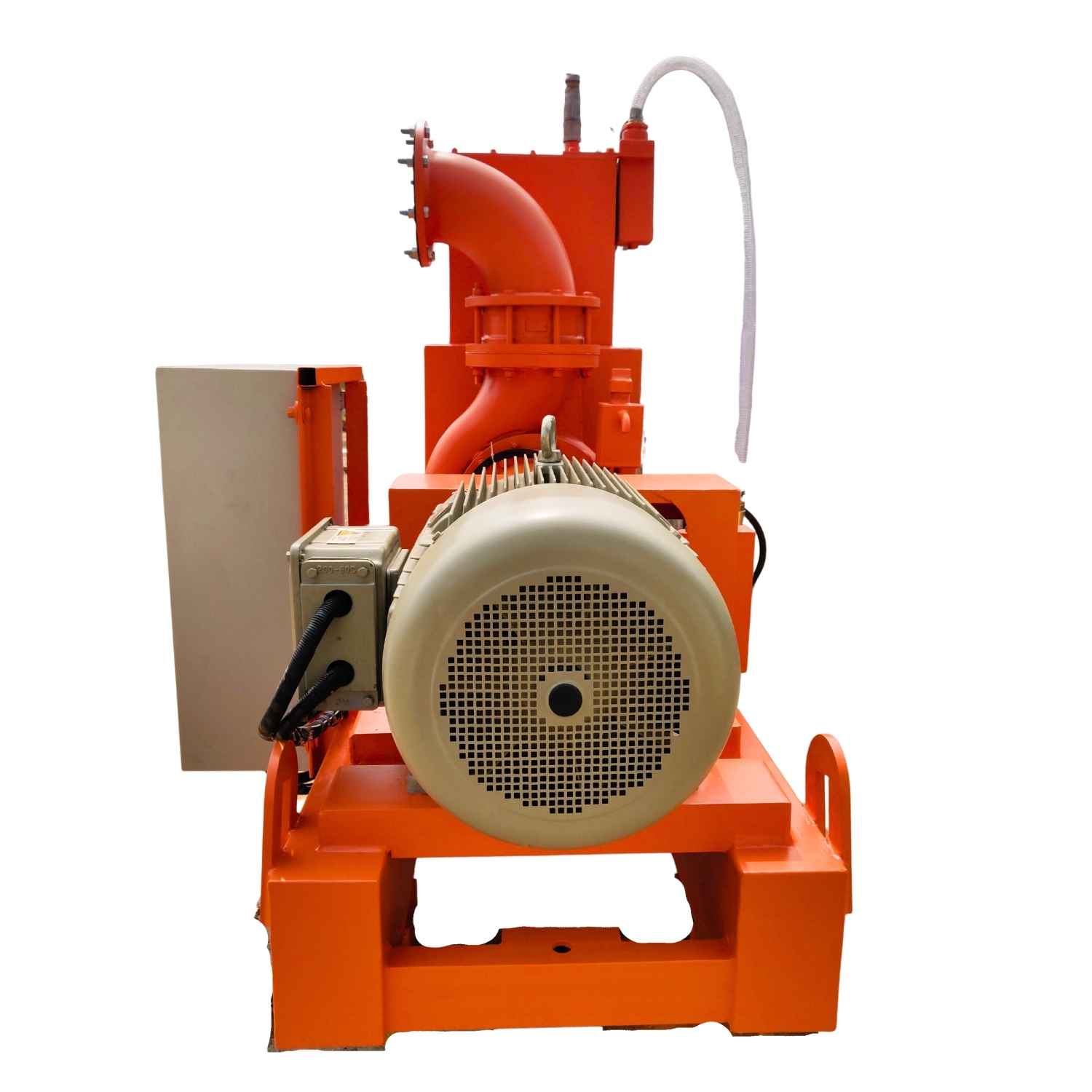

8 inch dewatering pump with electric motor
These pumps are appropriate for applications such as dewatering, wellpoint, deep well, mining, shoring, piling, offshore, marine, and water treatment. The suction and discharge dimensions are 200 x 200 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
8 inch dewatering pump data sheet
Download pdf
The technical specifications for 8” dewatering pumps with electric motor are given below
| Pump Make | Racors |
|---|---|
| Model | Racors - 200 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 550 m3/hr |
| Suction x Discharge | 8” x 8” (200 mm x 200 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
By default, the pumps are connected to Kirloskar engines. Additionally, other engine manufacturers like Deutz, Eicher, and electric motors are available if requested.
| Engine | Kirloskar HA 494, 4 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 52 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |

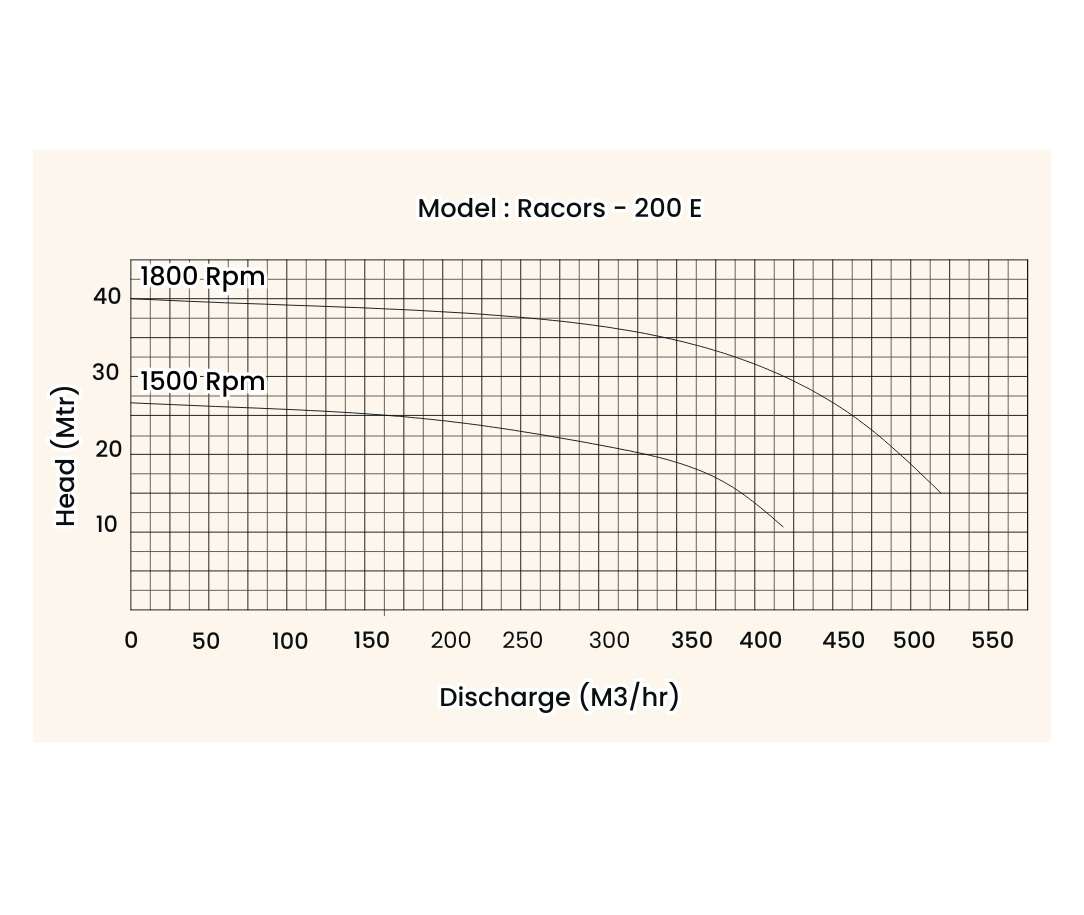

Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 183 liters. |
Weight & Dimensions
| Weight without engine | 600 kg |
|---|---|
| Weight with engine | 1100 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 4 nos |
| 40 ft container | 8 nos |
The Racors 8-inch dewatering pump, equipped with an electric motor and designated model number Racors-200EM, utilizes a Kirloskar/Crompton manufactured electrical motor as its prime mover. Racors supplies electrically driven dewatering pumps tailored to meet customer specifications. In the realm of dewatering, Racors delivers a comprehensive dewatering solution.
