6" piston pump
Pump Specification
6 inch piston dewatering pump data sheet
Download pdf
Characteristics: Resilient coating, Elevated durability, Convenient transportation, Minimal upkeep, Reduced operational interruptions
| Pump Make | Racors |
|---|---|
| Model | Racors - PP 150 |
| Max. Water Flow | 100 m3/h |
| Max. Head | 20 mtr. |
| Vacuum lift | 9.4 mtr. |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands and electric motors can also be provided.
| Engine | (i) KIRLOSKAR DAF10, Single Cylinder Air cooled Engine (ii) FIELD MARSHAL GFA5D, Single Cylinder Air cooled Engine |
|---|---|
| Capacity | 10 HP |
| Speed | 1500 RPM |
Performance curve
Material of construction
| Pump casing | High Grade cast Iron |
|---|---|
| Cylinders | Stainless steel,304 |
| Piston rods | Stainless Steel,304 |
Weight & Dimensions
| Weight without engine | 1850 kg |
|---|---|
| Weight with engine | 2050 kg |
| Length x width x height(cm) | 295 x 131 x 176cm |
| 20ft container | 4 nos |
| 40 ft container | 8 nos |

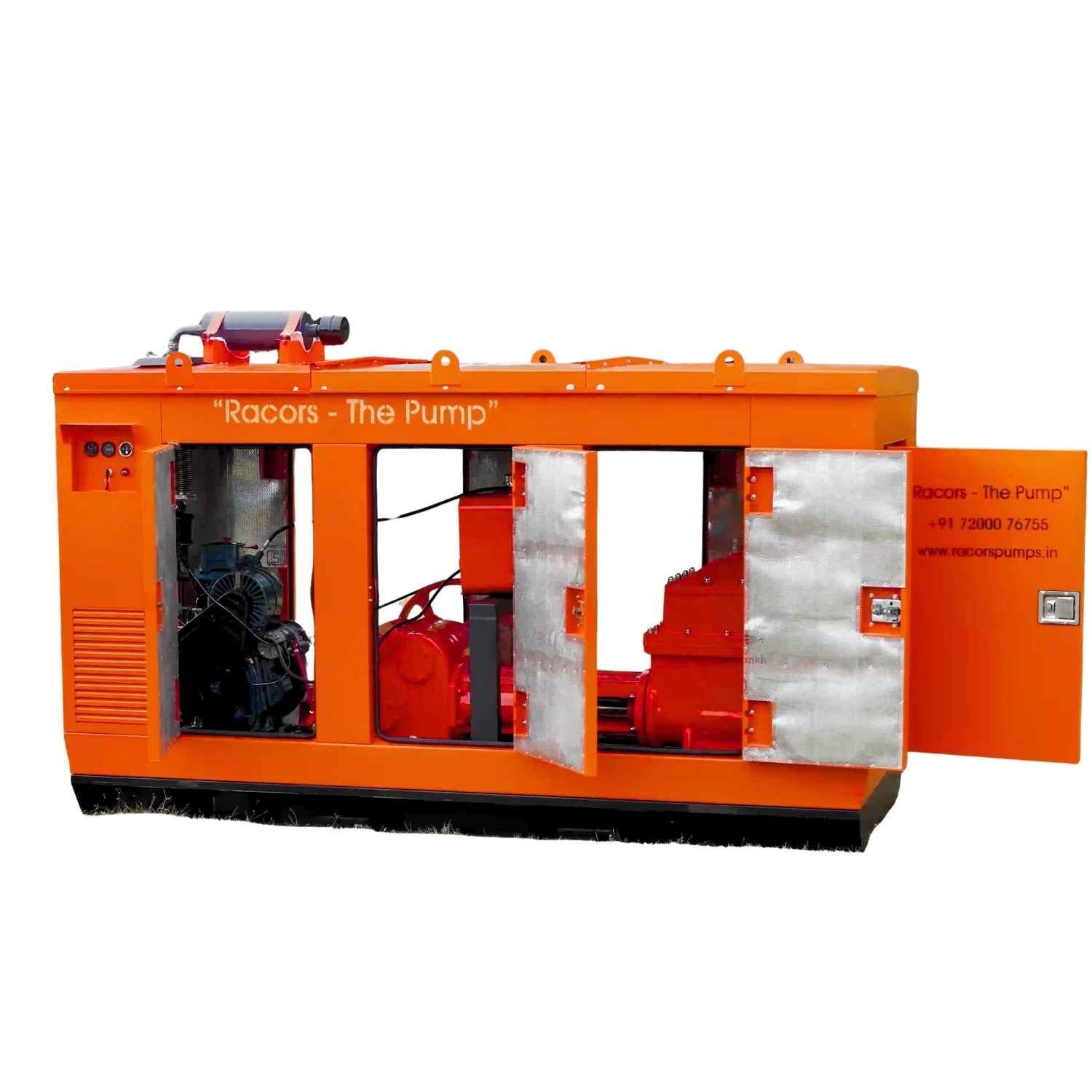

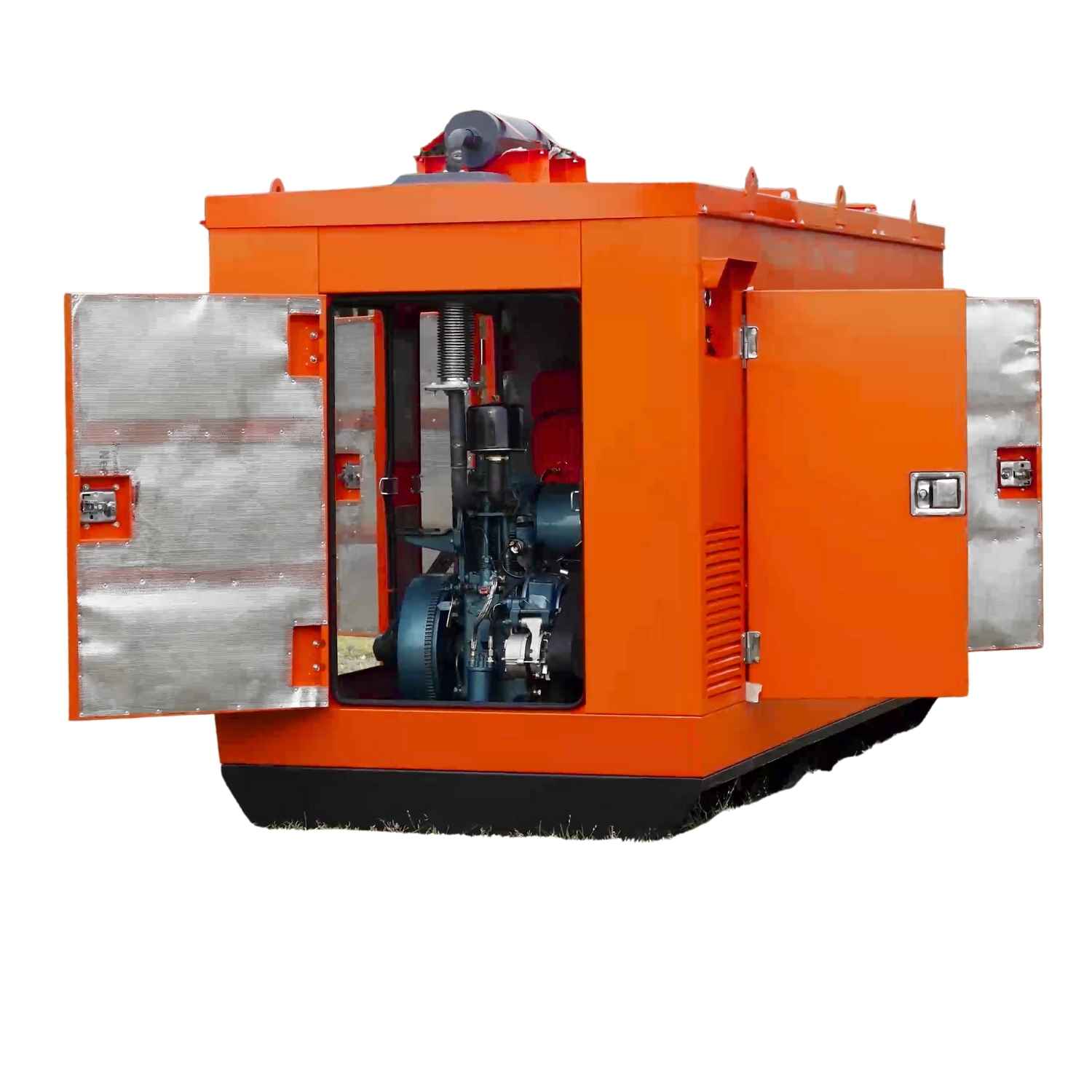

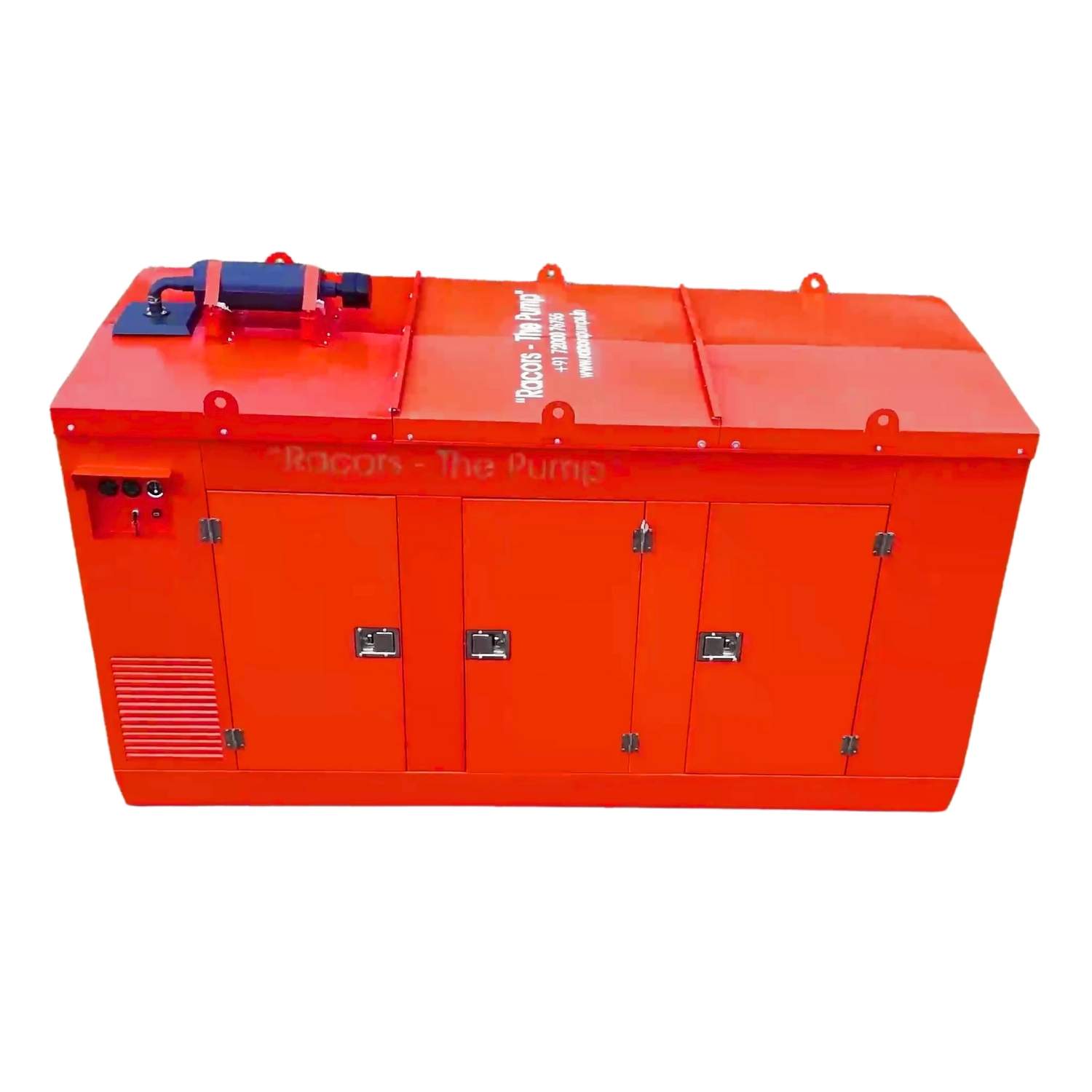

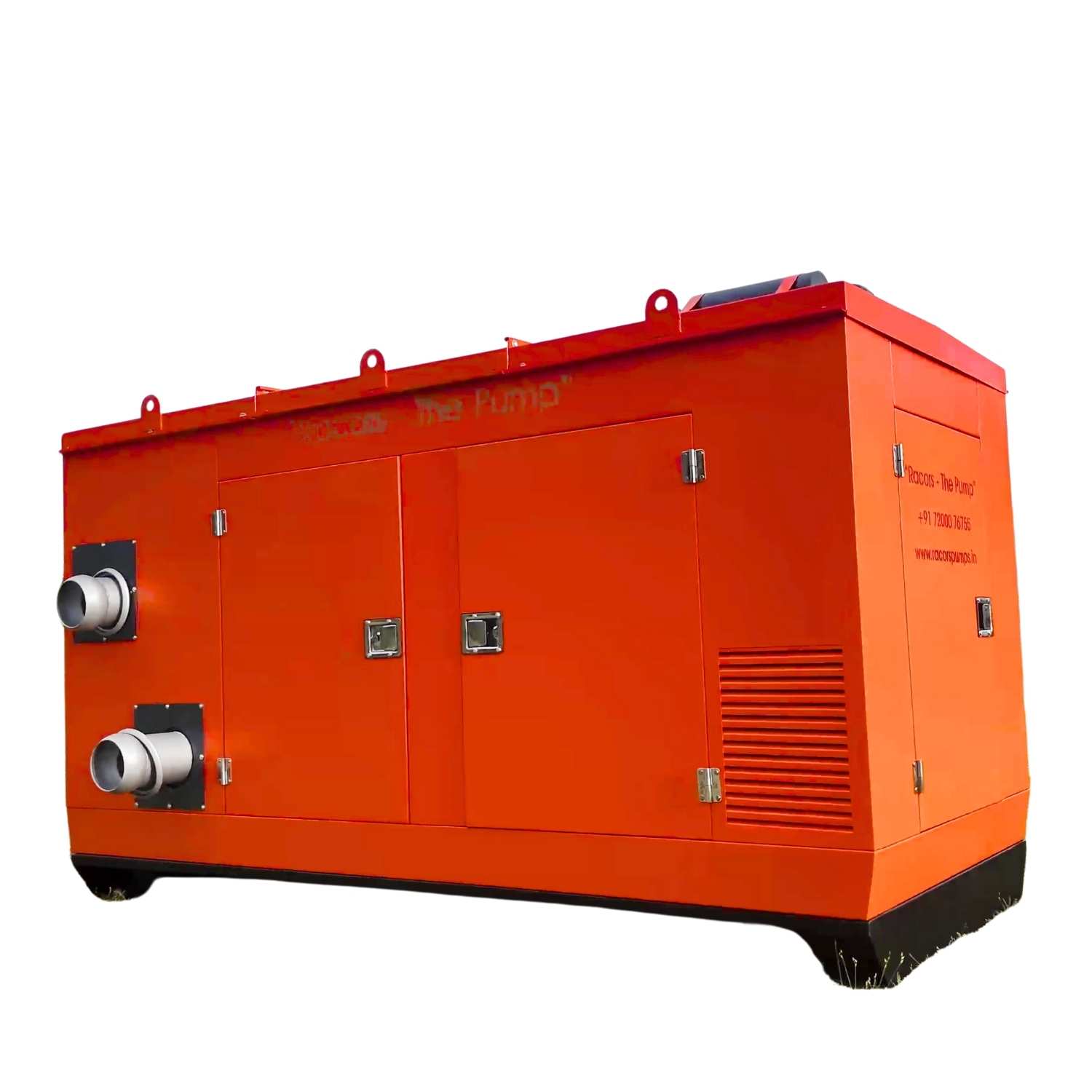

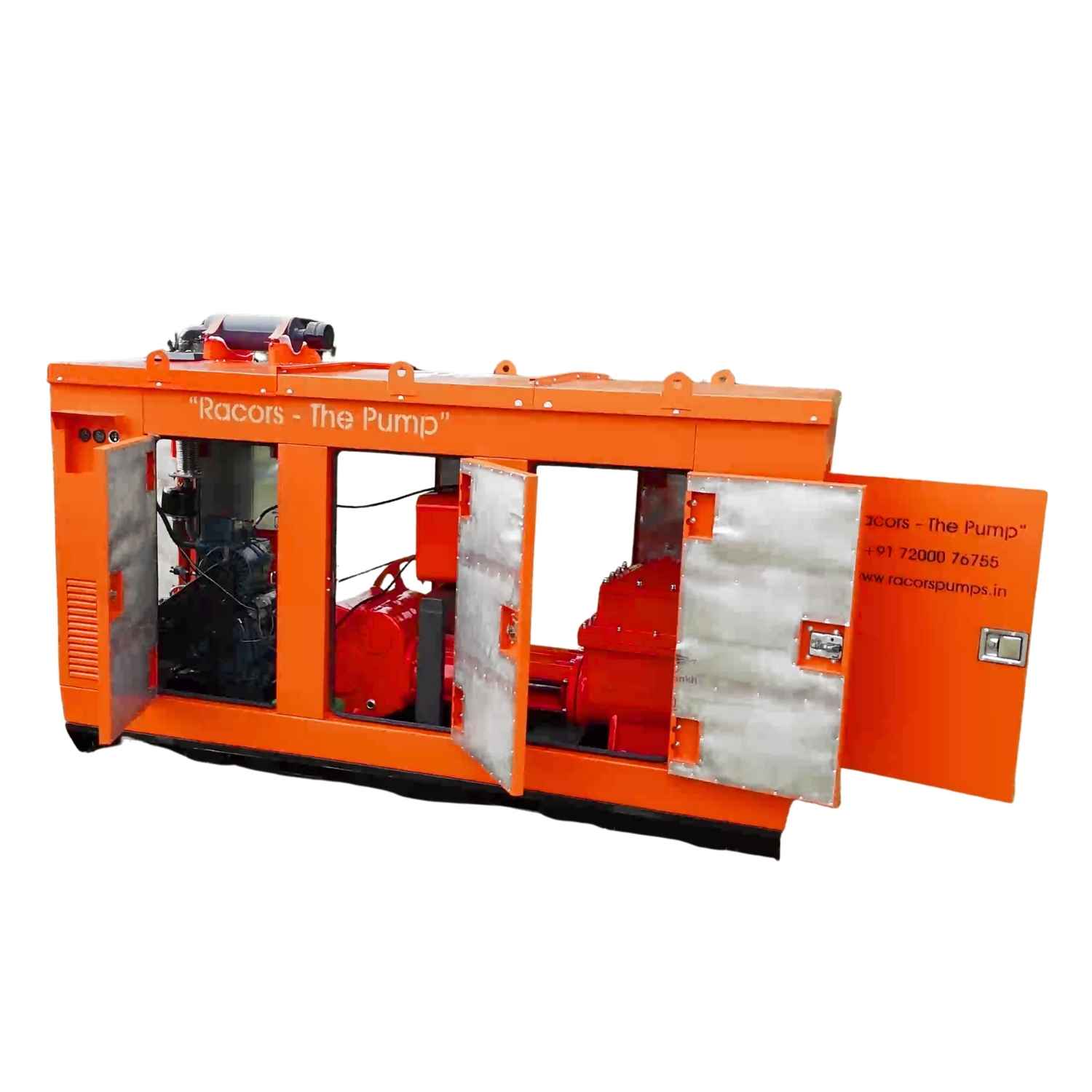

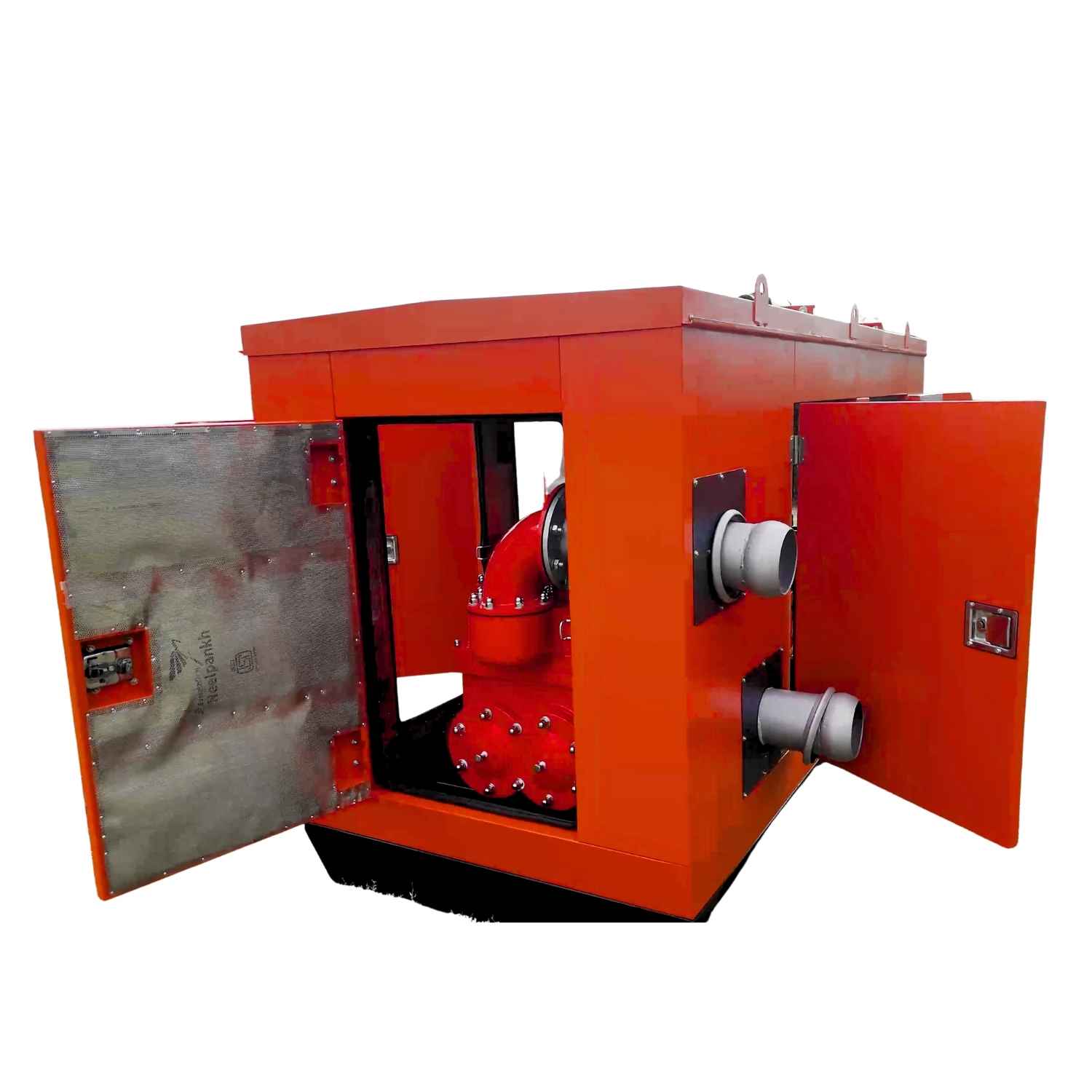

The Racors 6-inch piston type dewatering pump, designated as the canopy type and identified by model number Racors ZD-900C, is utilized in applications where quiet operation of the pumps is desired. Due to the distinctive design of Racors piston pumps, our distribution network extends extensively throughout European countries. The pumps can be paired with either a diesel engine or an electric motor, depending on the specific needs of the customer.
Categories : Piston pumps, pumps equipped with a canopy, silent pumps, Piston pumps available in the UK, construction piston pumps, suppliers of pumps in Europe
