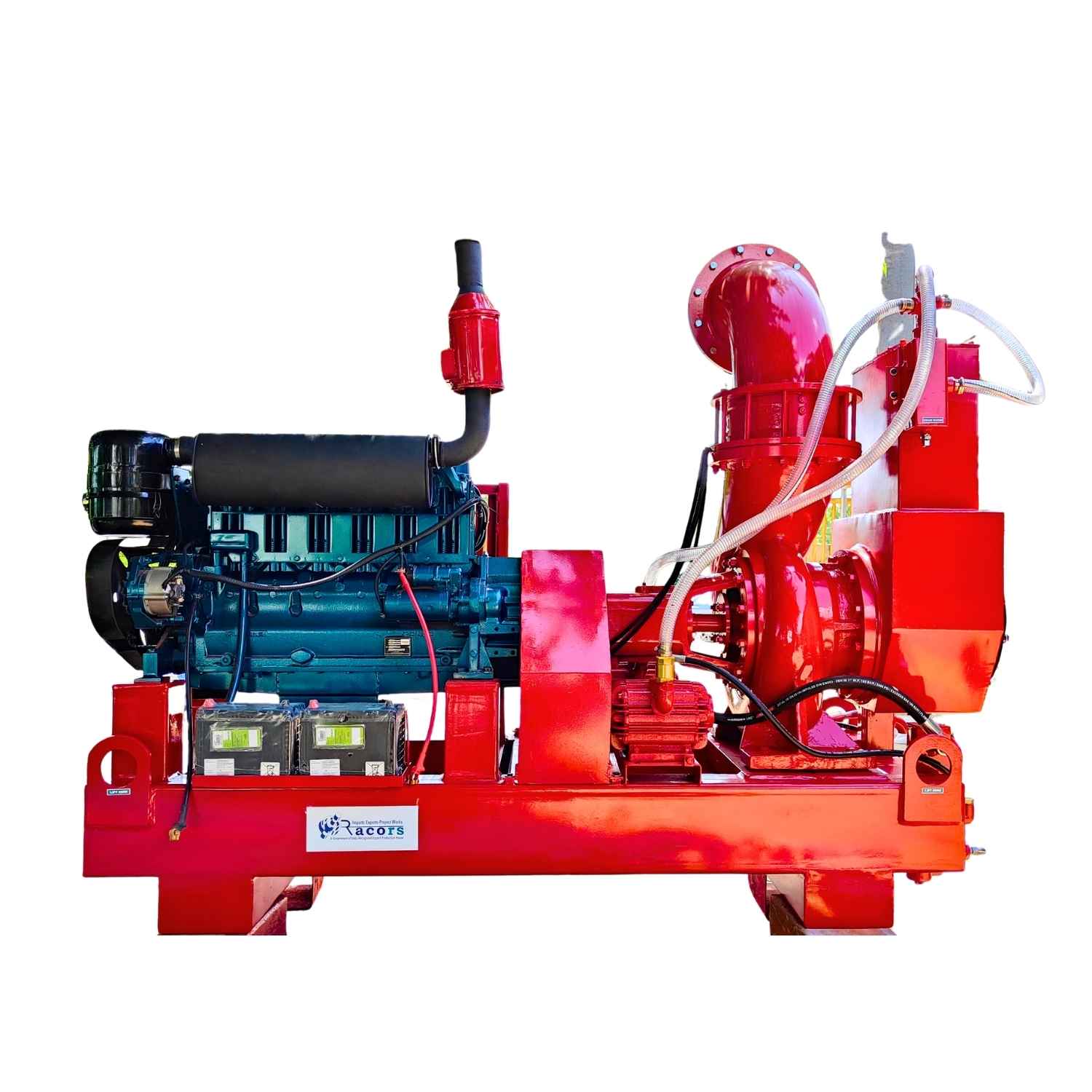

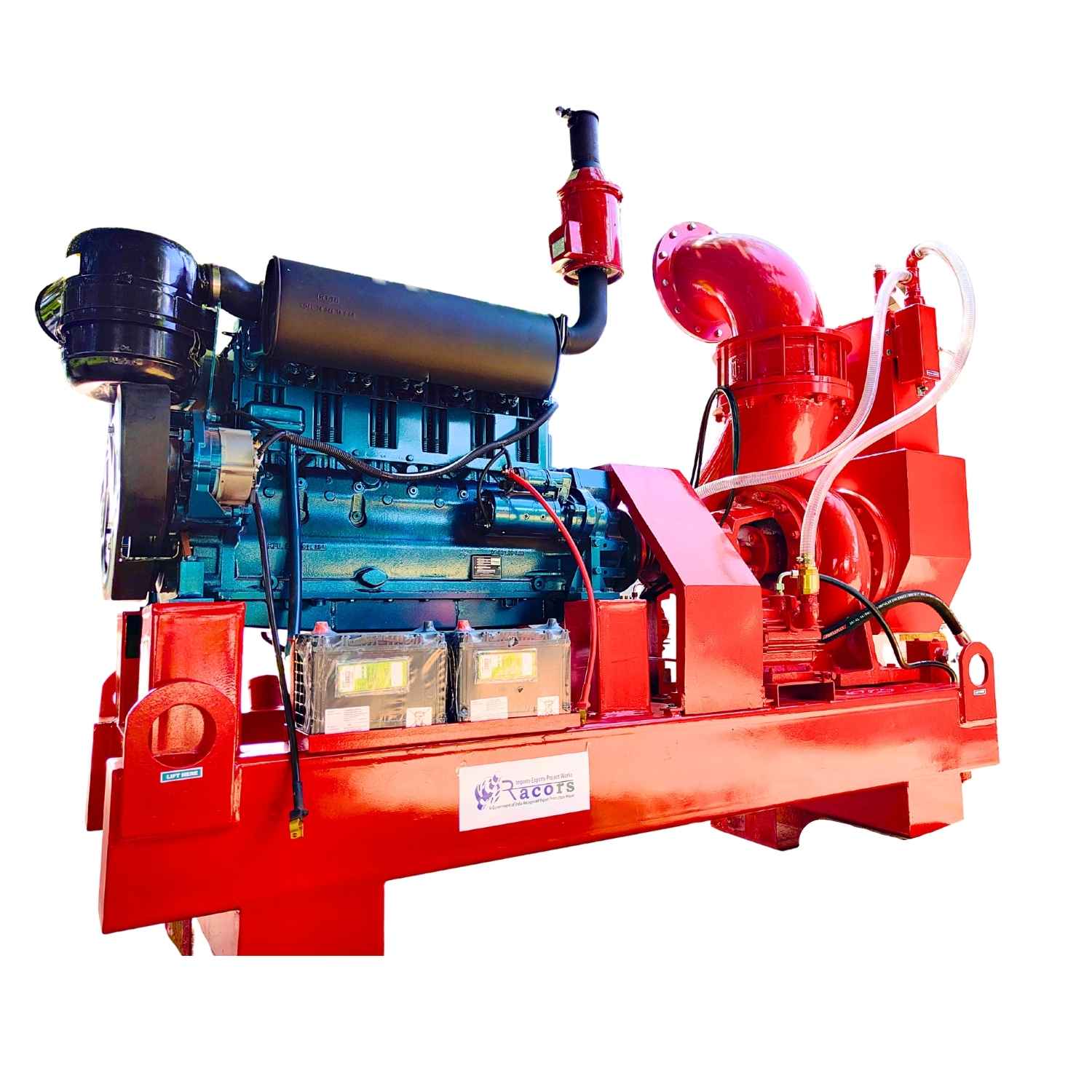

12" dewatering pump
12 inch dewatering pump special edition
These pumps are appropriate for dewatering, flood water removal, oil and gas applications, marine operations, sea water transfer, the chemical industry, and mining sectors. The suction and discharge dimensions are 300 x 300 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
12 inch dewatering pump data sheet
Download pdf
The technical specifications for 12” dewatering pumps are given below
| Pump Make | Racors |
|---|---|
| Model | Racors - 300 |
| Vacuum Capacity | 70 cfm (Double Vacuum motor) |
| Max. Water Flow | 1250 m3/hr |
| Suction x Discharge | 12” x 12” (300 mm x 300 mm) |
| Max. Head | 30 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are by default connected with Kirloskar engines. However, alternative engine brands such as Deutz and Eicher, as well as electric motors, can be provided upon request.

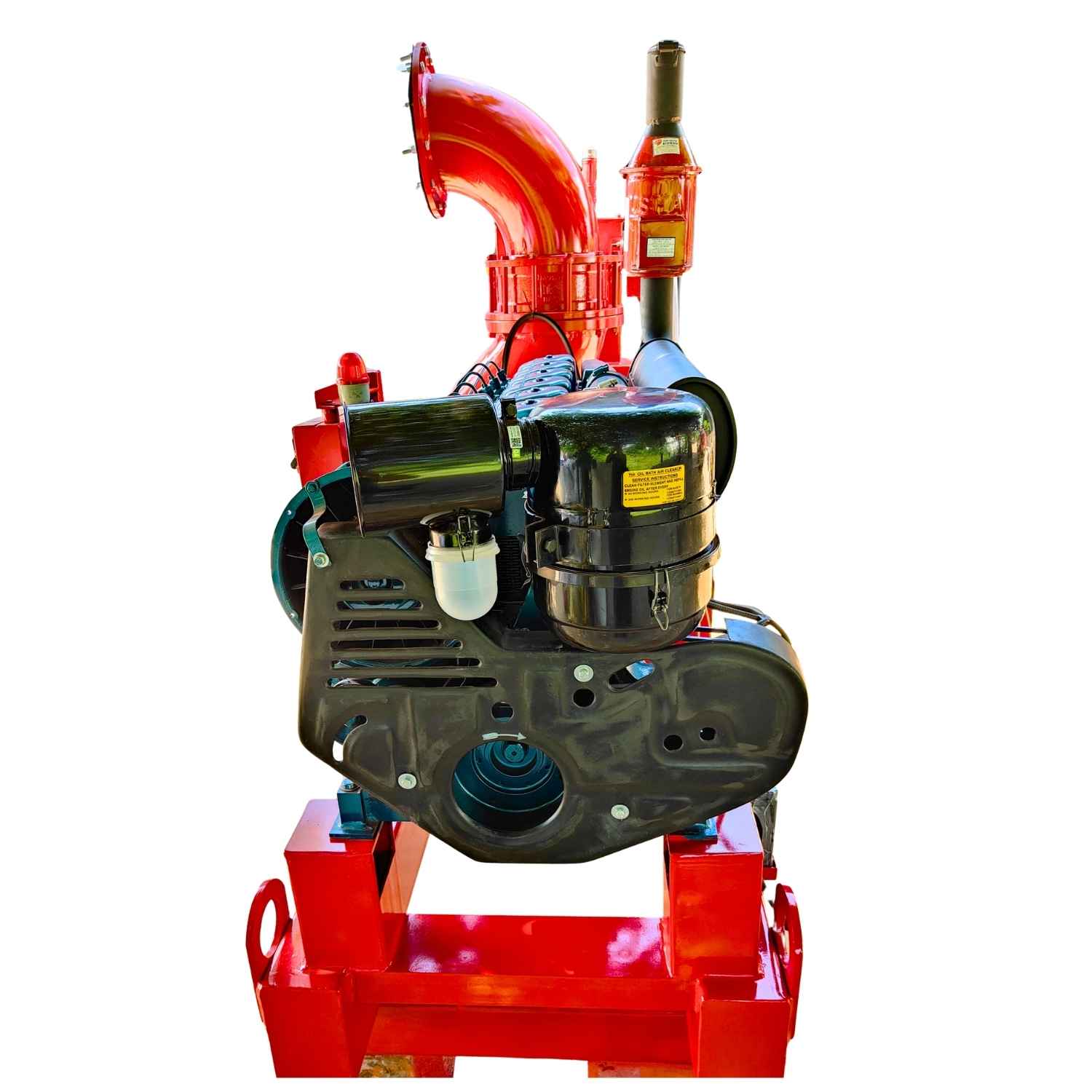

| Engine | Kirloskar HA 694, 6 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 78 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 220 liters. |
Technical Specification
| Weight without engine | 630 kg |
|---|---|
| Weight with engine | 860 kg |
| Length x width x height(mm) | 100 m3/hr |
| 20ft container | 2 nos |
| 40 ft container | 4 nos |
Racors 12-inch dewatering pump special edition, model no. Racors-300SE, features a priming tank, volute casing, and other internal components constructed from stainless steel, specifically engineered for use in the oil and gas sector. This special edition pump includes additional features such as a belt failure alarm, dry running protection, and an automatic shutdown system, adhering to the standards set by oil and gas companies including ADNOC, KNPC, KOC, Qatar Petroleum, and Saudi Aramco.
