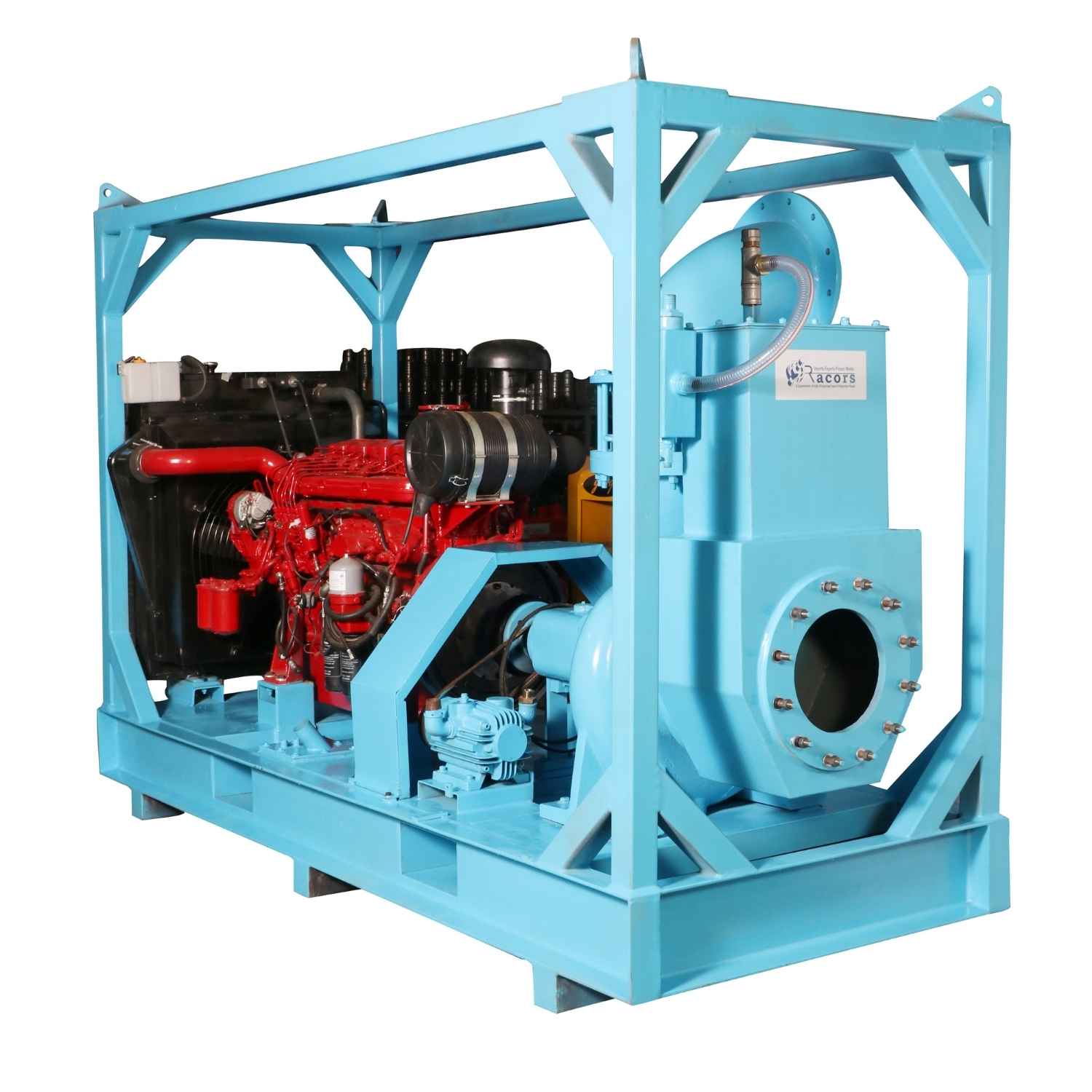

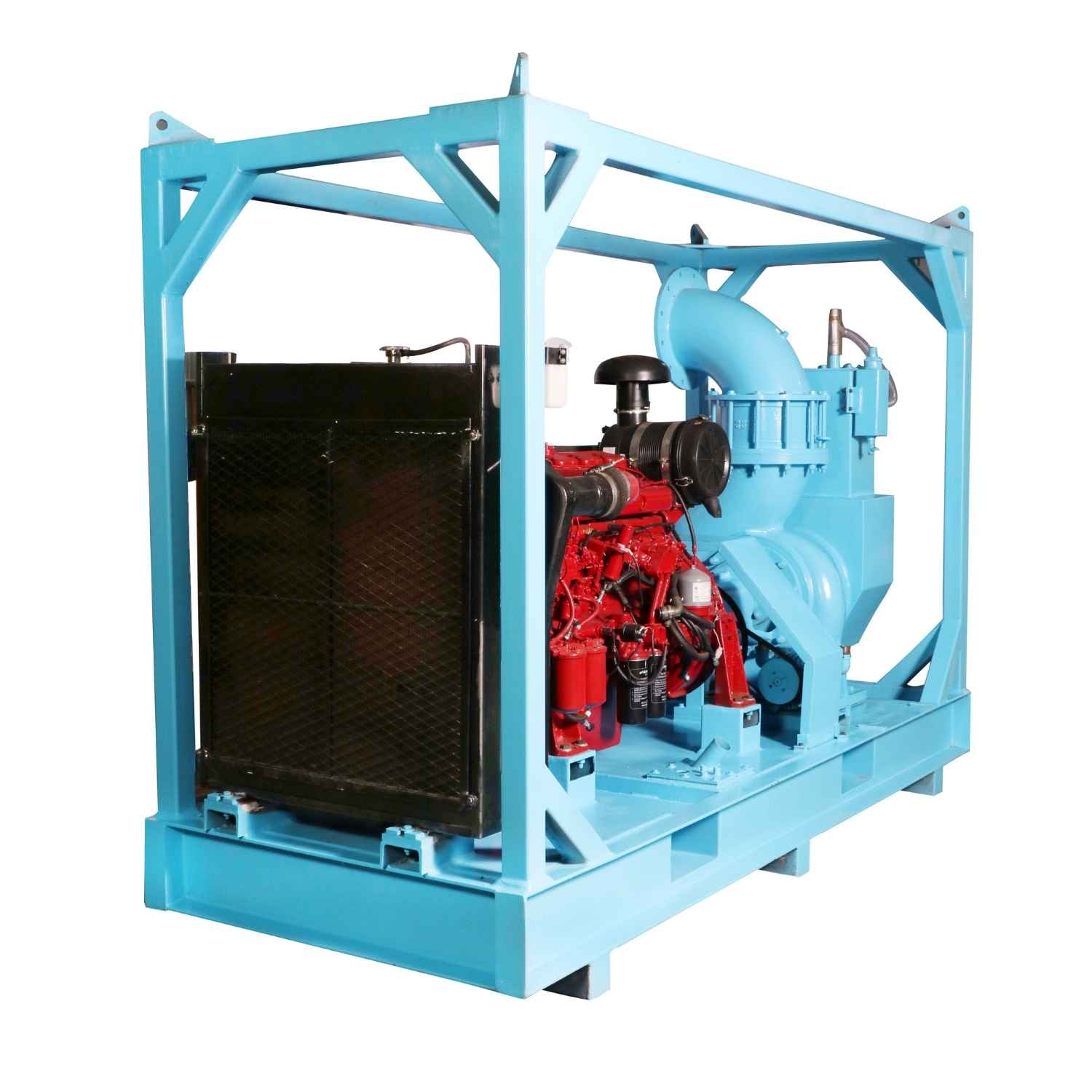

12" dewatering pump with frame
12 inch dewatering pump with frame
These pumps are appropriate for dewatering, flood water removal, oil and gas applications, marine operations, sea water transfer, the chemical industry, and mining sectors. The suction and discharge dimensions are 300 x 300 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
12 inch dewatering pump data sheet
Download pdf
The technical specifications for 12-inch dewatering pumps are outlined below
| Pump Make | Racors |
|---|---|
| Model | Racors - 300 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 1250 m3/hr |
| Suction x Discharge | 12” x 12” (300 mm x 300 mm) |
| Max. Head | 30 mtr. |
| Max. suction Lift | 9 mtr. |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Engine | KIRLOSKAR 6R1080T, 6 Cylinder, Water cooled Diesel Engine |
|---|---|
| Capacity | 150 HP |
| Speed | 2200 RPM |

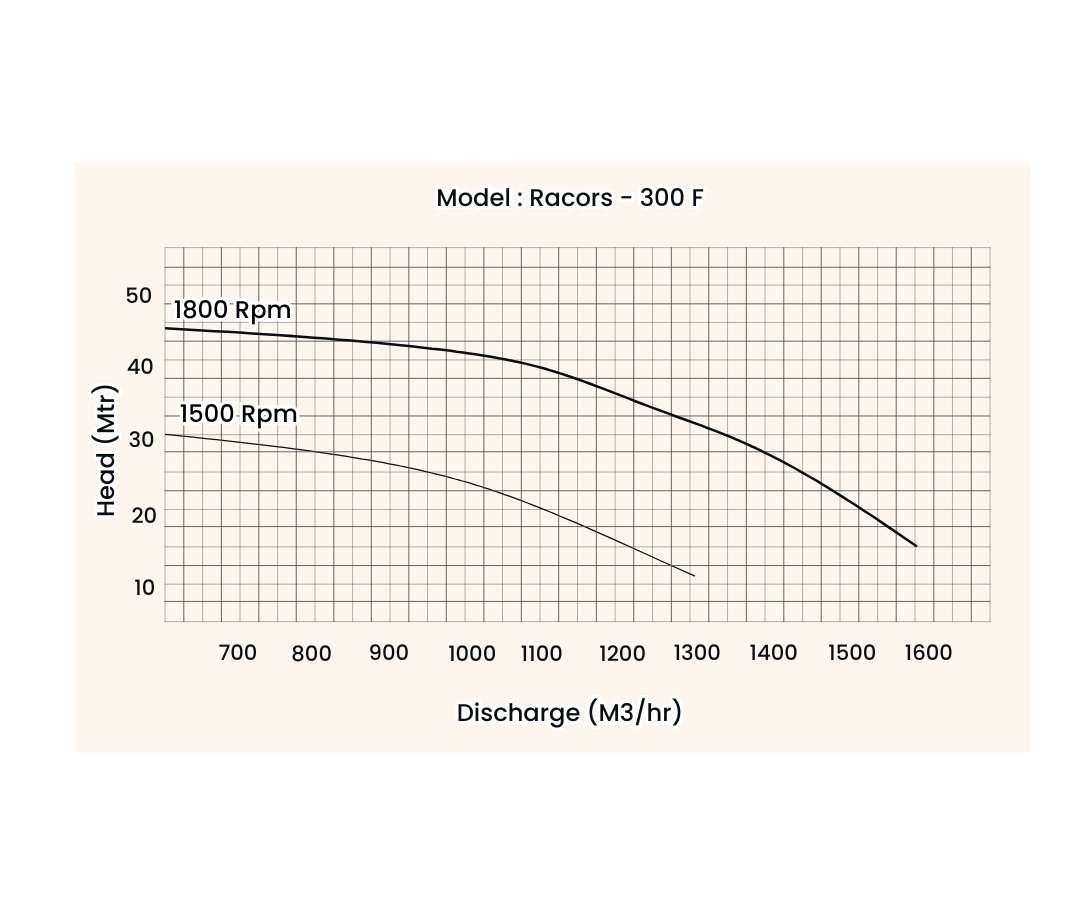

Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS - 304 |
| Stuffing Box | High Grade cast Iron |
| Priming Tank | Mild Steel |
| Mounting | Skid mounted with built in fuel tank having a fuel capacity of 220 liters. |
Weight & Dimensions
| Weight without engine | 2600 kg |
|---|---|
| Weight with engine | 3500 kg |
| Length x width x height(cm) | 305 x 106 x 229cm |
| 20ft container | 2 nos |
| 40 ft container | 4 nos |
The Racors 12-inch Miller type dewatering pump, designated as model no. Racors-300, is designed for high discharge applications reaching up to 1250 m3/hr. We have provided 10 units of the 12" dewatering pumps to the Jeddah municipality for drainage purposes, during which the Saudi Government recognized Racors as one of the leading suppliers of dewatering pumps in the Kingdom of Saudi Arabia.
