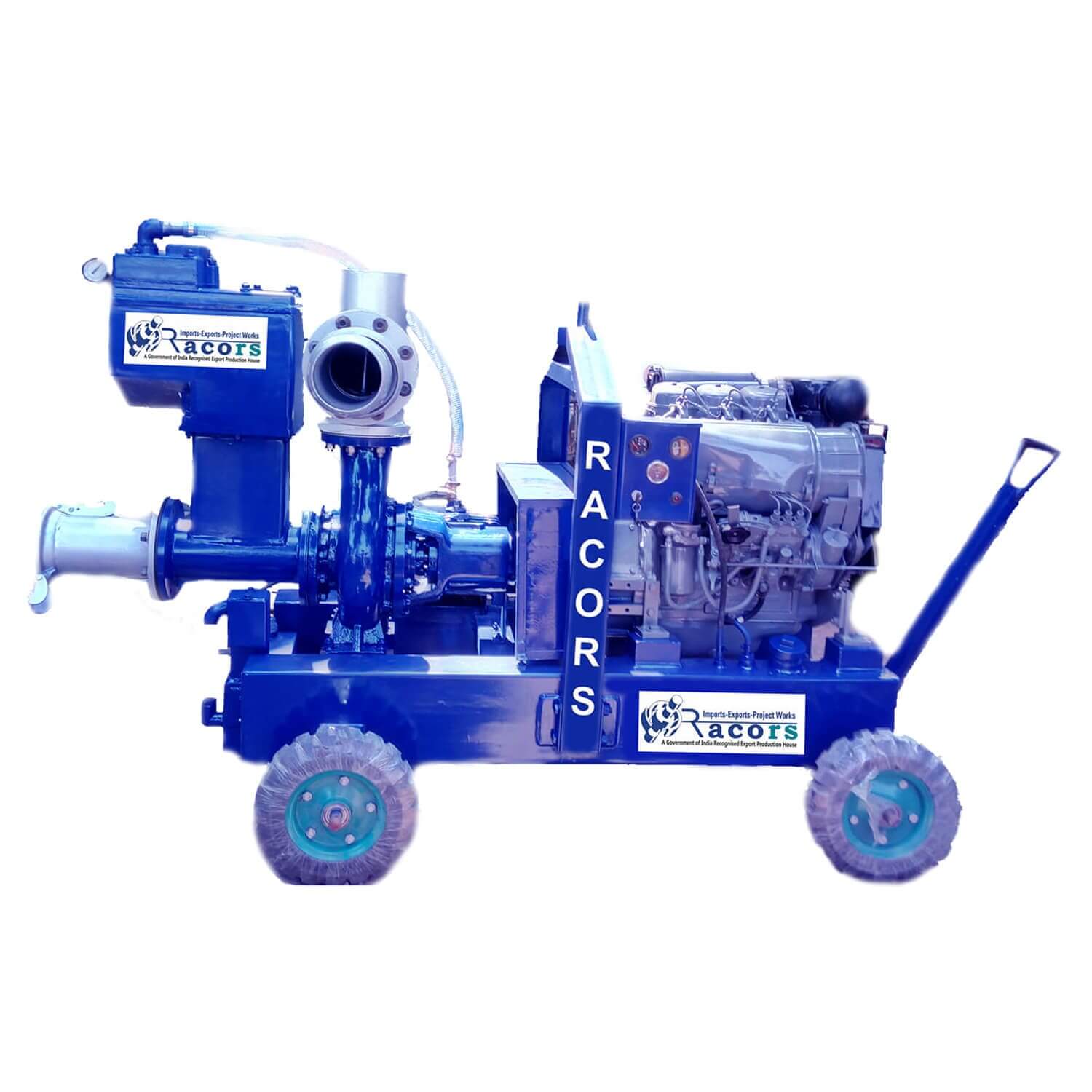

6" dewatering pump
6 inch sy dewatering pump
These pumps are ideal for applications such as dewatering, sewage over pumping, drainage pumping, irrigation, mining, infrastructure projects, sludge dewatering, wellpoint dewatering, and flood control. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6-inch sy type dewatering pumps are provided below
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are typically paired with Kirloskar engines. However, other engine brands such as Deutz, Eicher, and electric motors can be provided upon request.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |

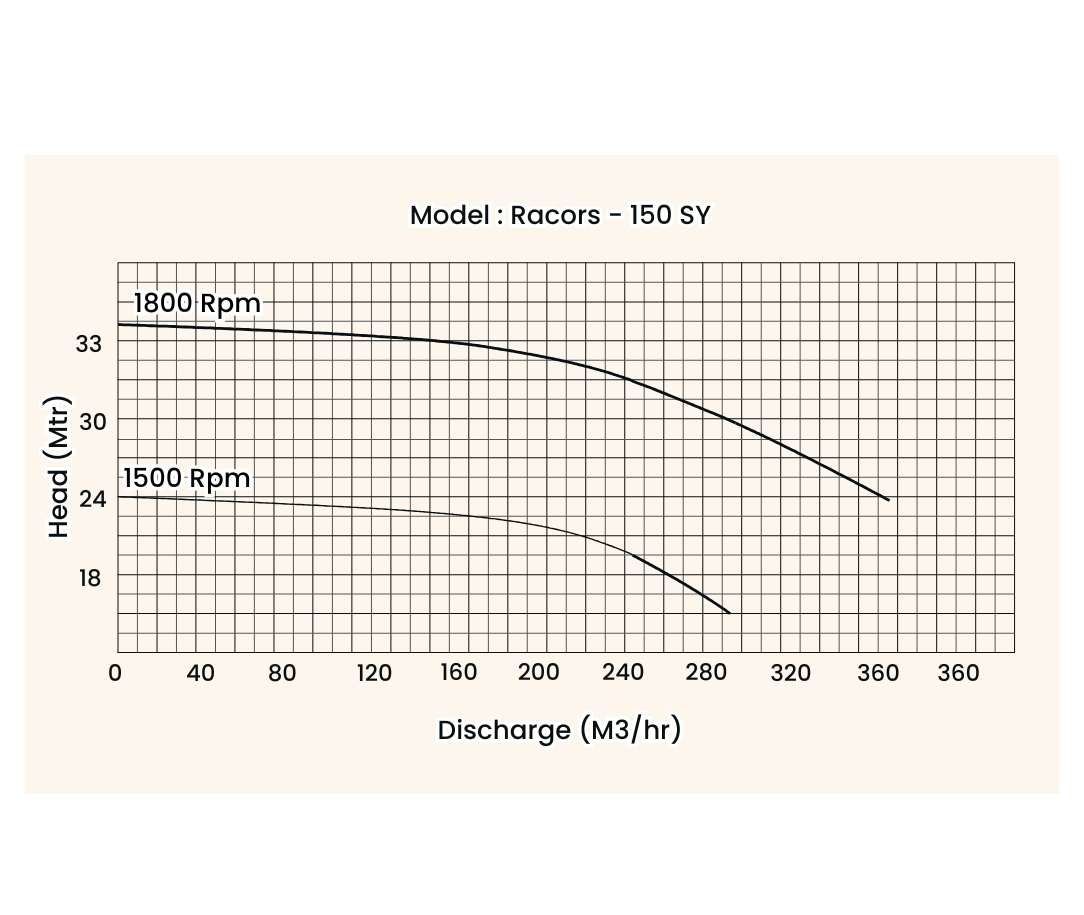

Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |
Racors 6-inch Sy type dewatering pumps, identified by model number Racors-150AL, feature a priming tank constructed from aluminum. This specialized dewatering pump is utilized within the dewatering industry. These pumps are employed for well point dewatering and various groundwater control applications. Last month, we supplied 12 centrifugal type dewatering pumps to Dubai, UAE, for a bridge construction project. Additionally, we provided a substantial quantity of Sy type vacuum motors to leading dewatering contractors in Abu Dhabi, Sharjah, and Dubai. Racors ranks among the top five dewatering service providers in the UAE, having delivered over 100 dewatering pumps in the previous calendar year across multiple sectors in the United Arab Emirates. Our pumps are accompanied by superior quality and exceptional technical support. Our dewatering division in the UAE is highly active, offering clients prompt dewatering solutions, which positions us ahead of our competitors in the dewatering industry.
