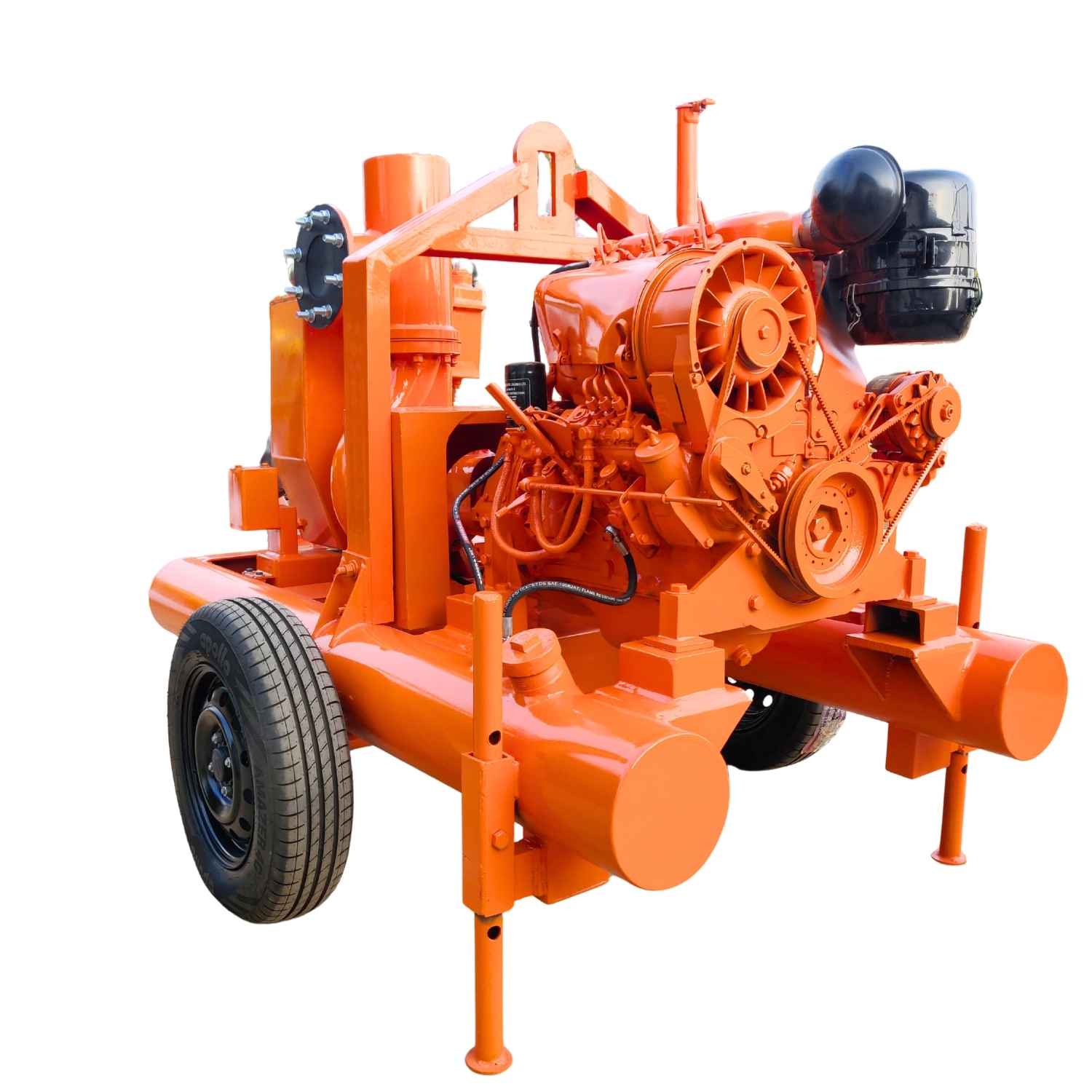

6" Hd dewatering pump
6 inch Hd type dewatering pump
These pumps are ideal for dewatering, over-pumping sewage, drainage water, irrigation water, as well as for use by mining and oil & gas companies, and for flood clearing. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6-inch HD type dewatering pumps are outlined below
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 HD |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Additionally, other engine brands such as Deutz, Eicher, and electric motors can be provided upon request.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |

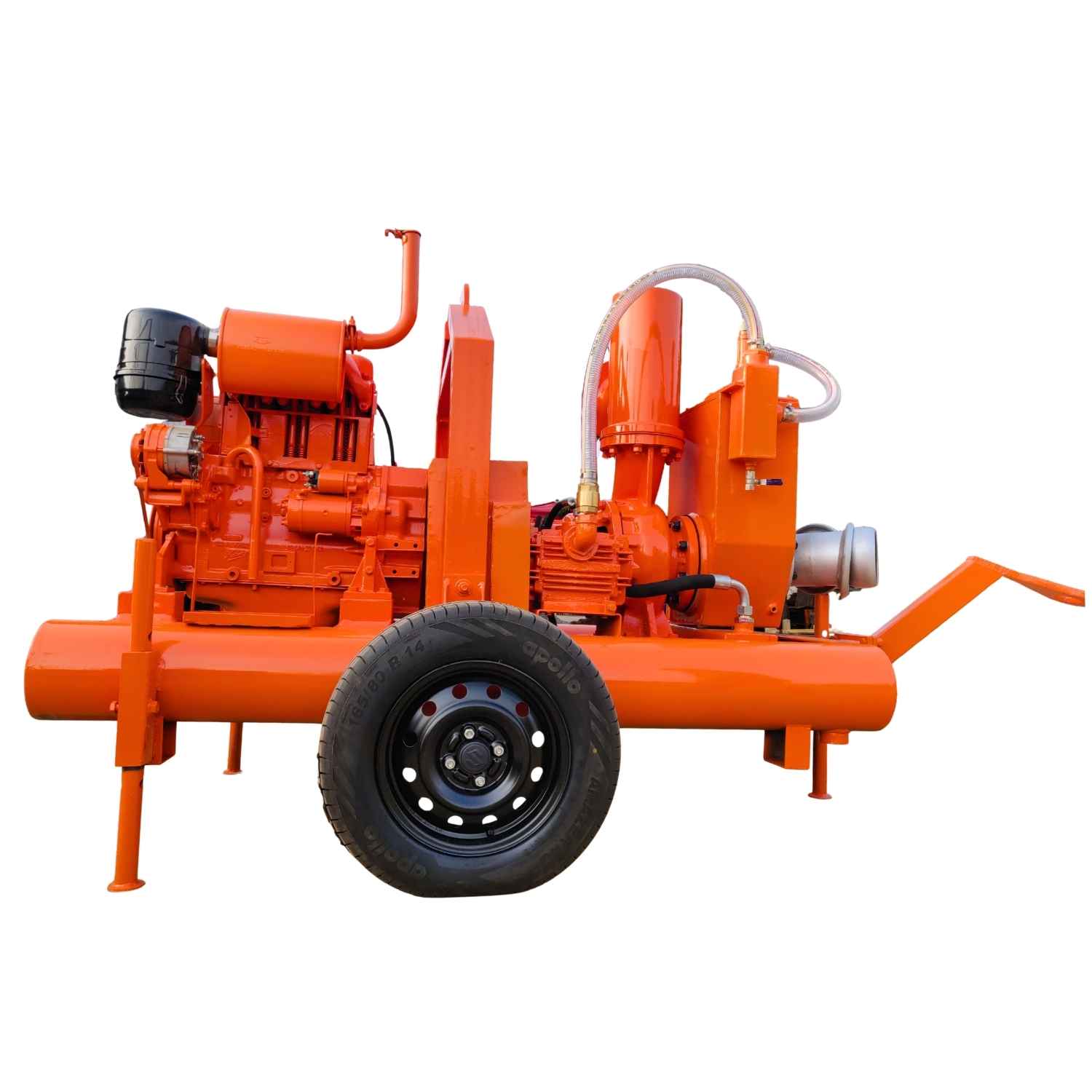

Racors 6-inch HD type dewatering pumps, designated by model number Racors-150HD, feature a priming tank constructed from mild steel or stainless steel. Recently, we delivered 24 units of HD type dewatering pumps to prominent construction contractors in Saudi Arabia. HD type pumps are rapidly gaining popularity in Europe, particularly in Germany, the Netherlands, and Russia. We offer comprehensive dewatering solutions across all Middle Eastern countries and supply dewatering pumps and accessories for major projects.
