6" dewatering pump
6 inch dewatering pump Special edition
These pumps are appropriate for dewatering, agricultural sectors, sewage cleaning, drainage maintenance, irrigation, environmental modifications, mining, oil and gas operations, and flood water removal. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6-inch dewatering pumps are provided below.
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are coupled with Kirloskar engines by default. Other engine makes like Deutz, Eicher etc. & electric motors are also available upon request.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |

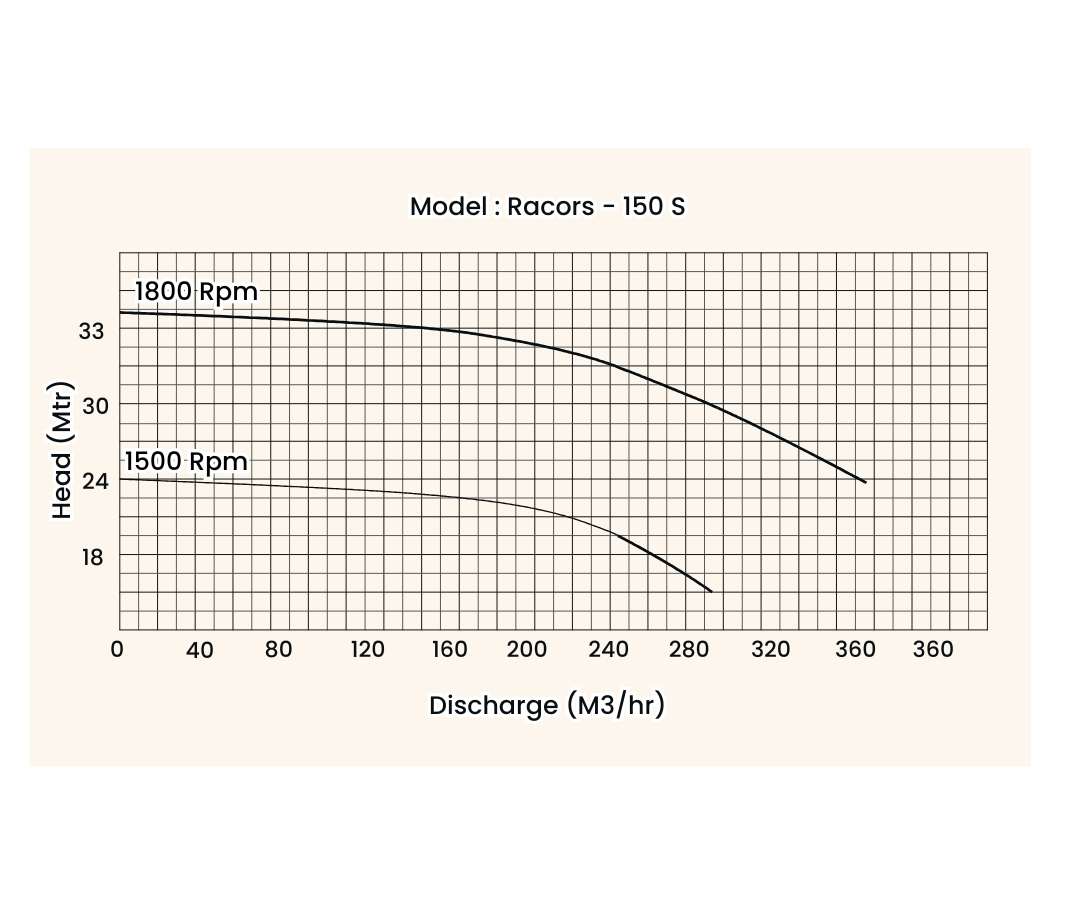

Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |

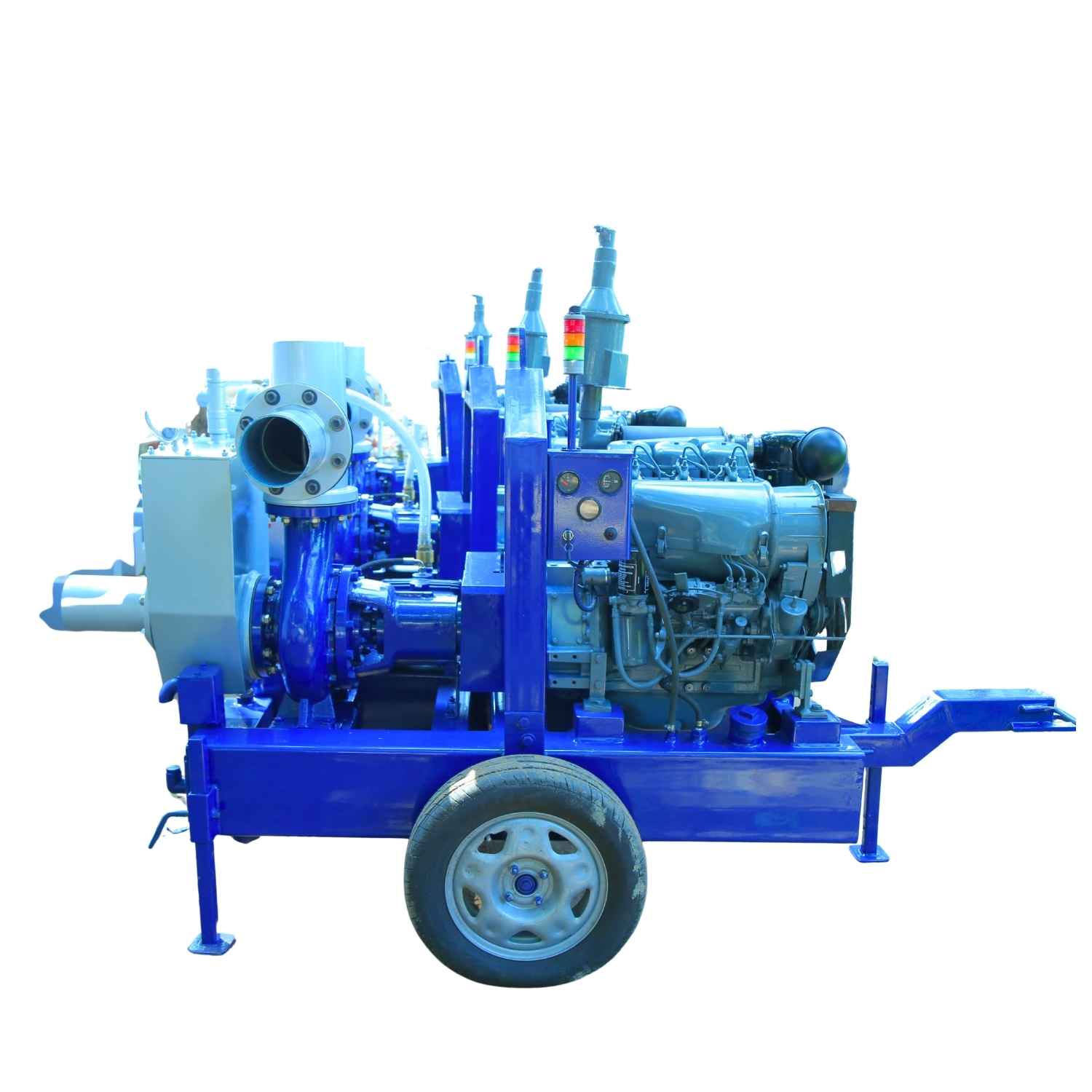

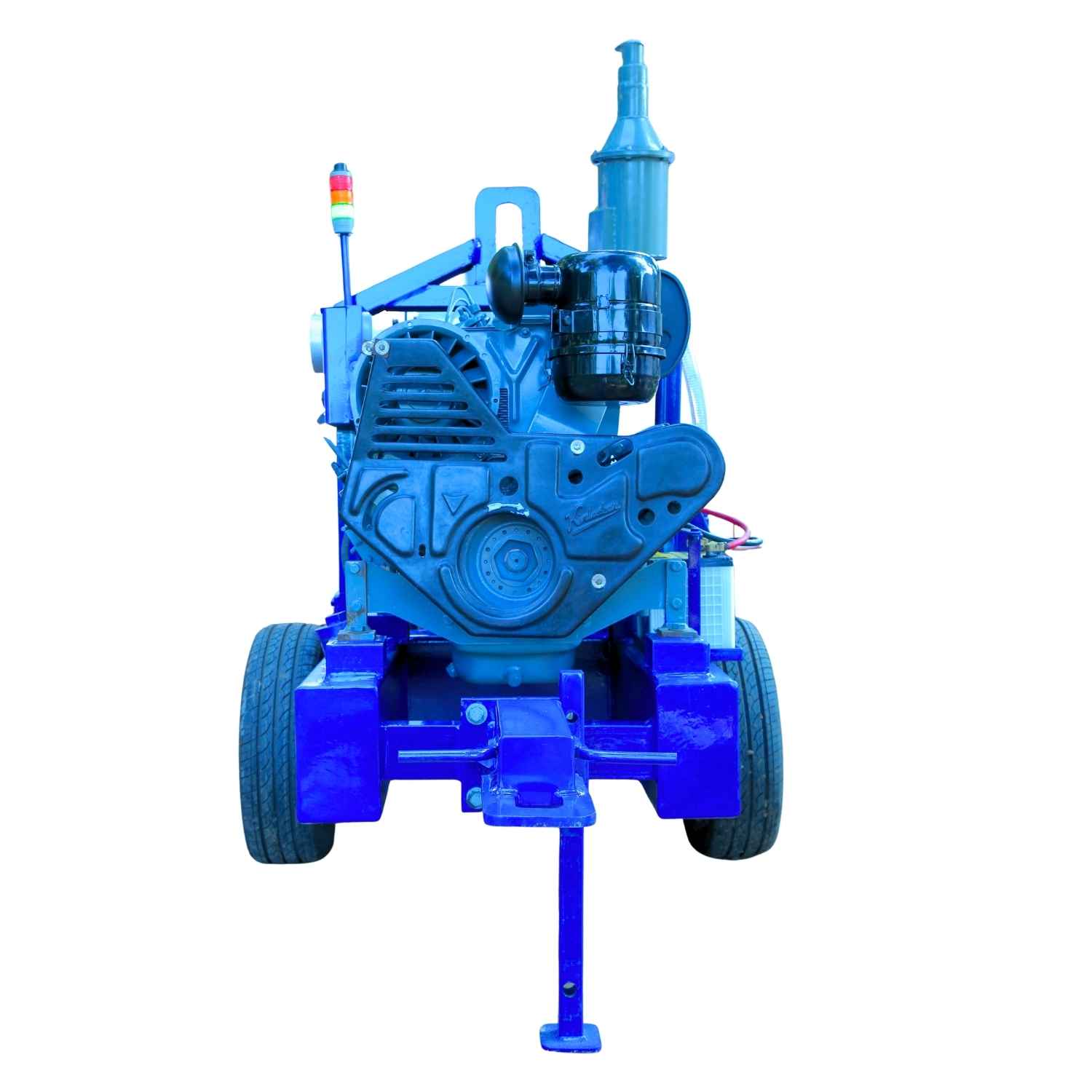

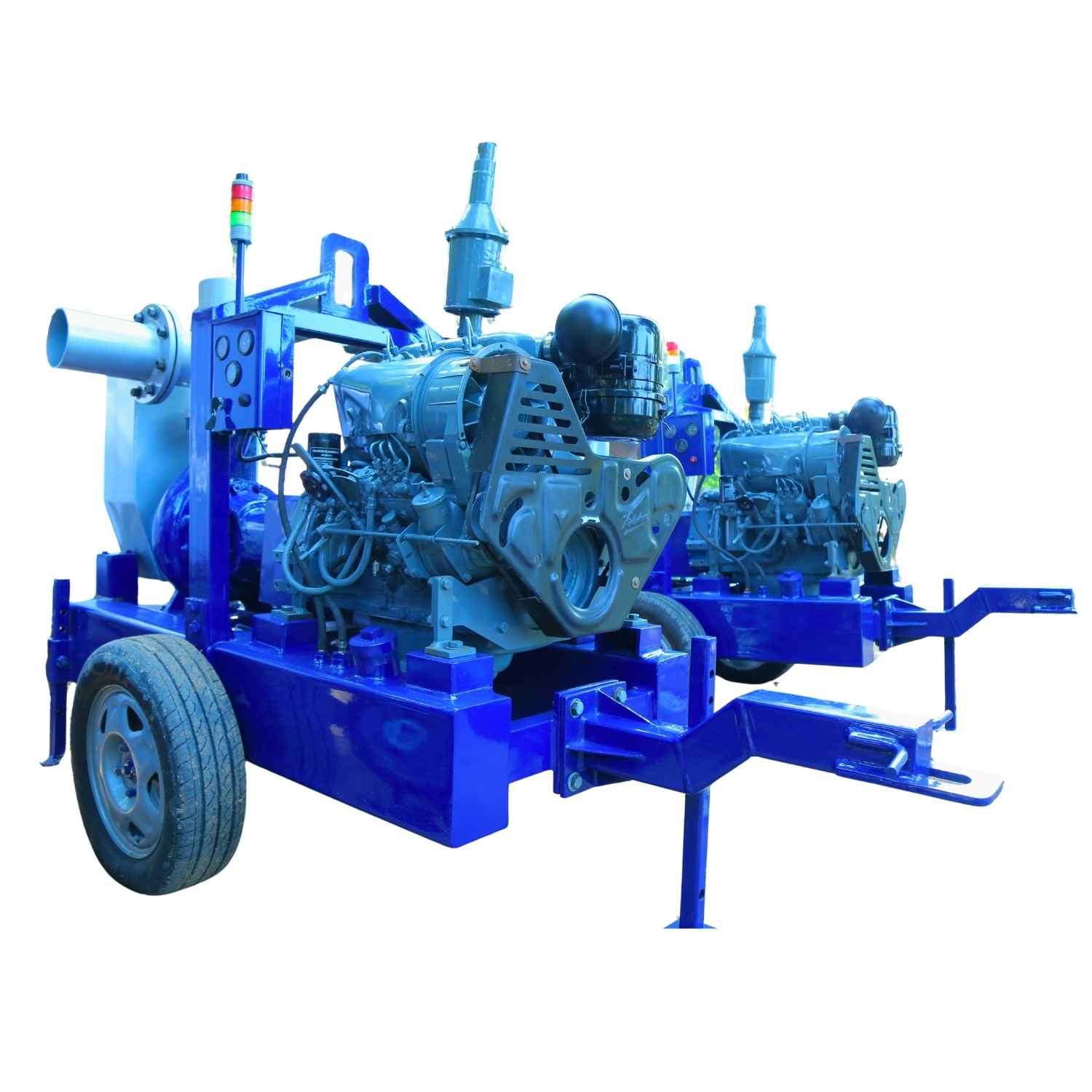

Racors 6-inch special edition dewatering pumps, designated with model number Racors-150SE, feature a priming tank constructed from stainless steel and are equipped with a two-wheel type trolley for mounting. We have delivered fifty units of these special edition dewatering pumps to the oil and gas industries in Kuwait. These uniquely designed pumps are specifically tailored for applications in the oil and gas sector. Recently, we have provided special edition dewatering pumps to various oil and gas companies, including Kuwait National Petroleum Company (KNPC), Kuwait Oil Company (KOC), and Abu Dhabi National Oil Company (ADNOC), which include additional features such as a belt failure alarm, dry running protection, and an automatic shutdown system.
