6" Op dewatering pump
6 inch Op type dewatering pump
These pumps are designed for various applications including dewatering, sewage over pumping, drainage pumping, irrigation, mining, sea water transfer, construction industries, and flood water removal. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller equipped with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 OP |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are coupled with Kirloskar engines by default. Other engine makes like Deutz, Eicher etc. & electric motors are also available upon request.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |

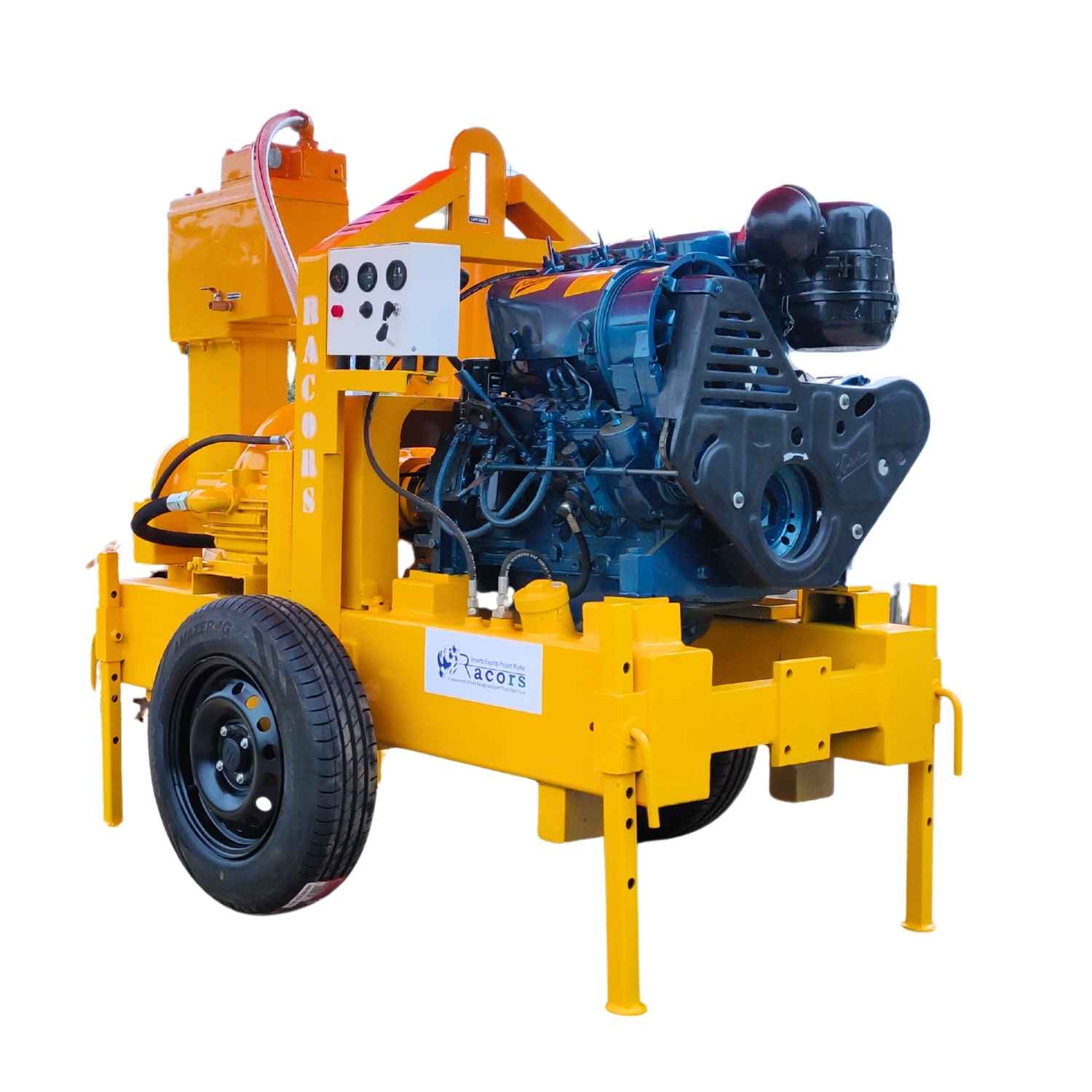

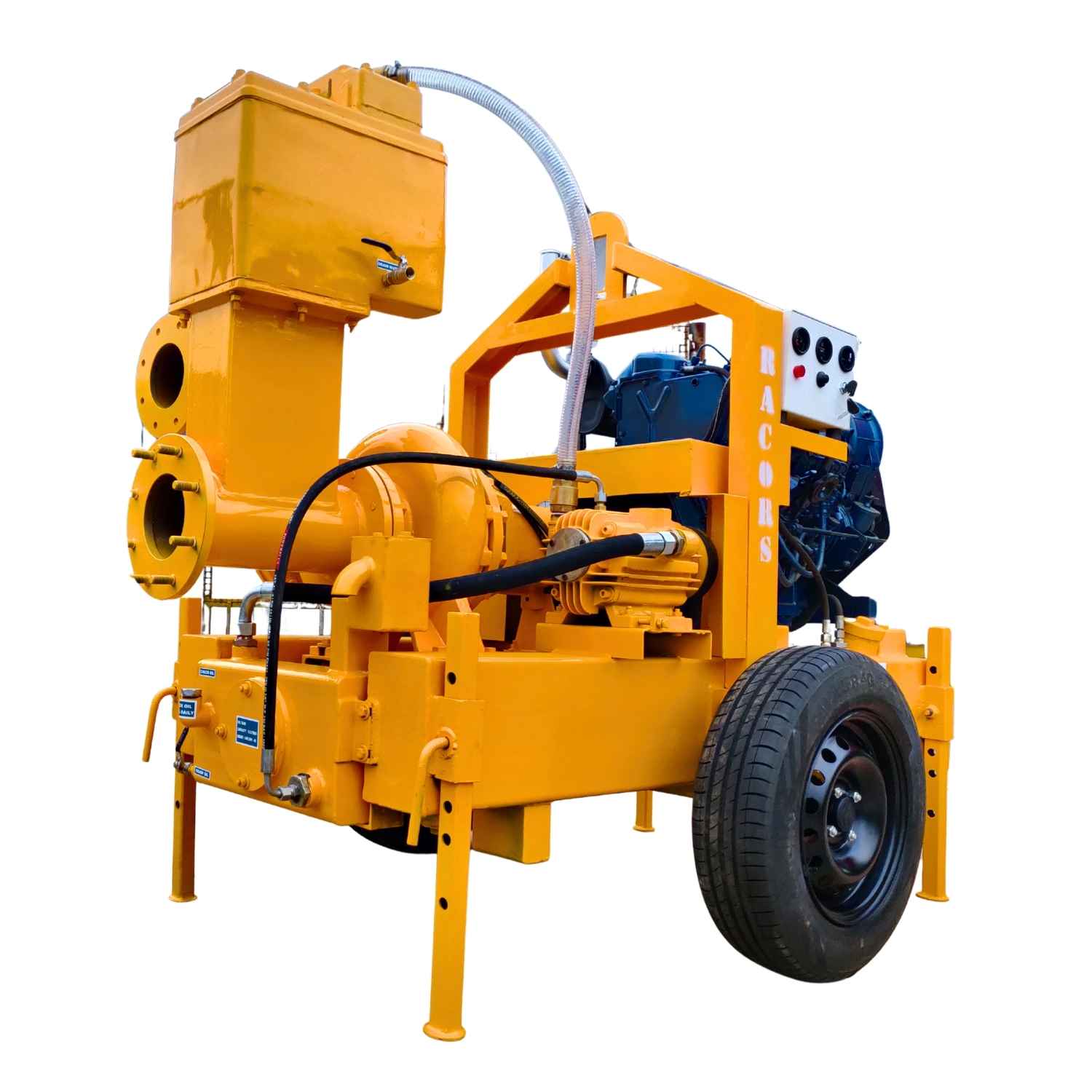

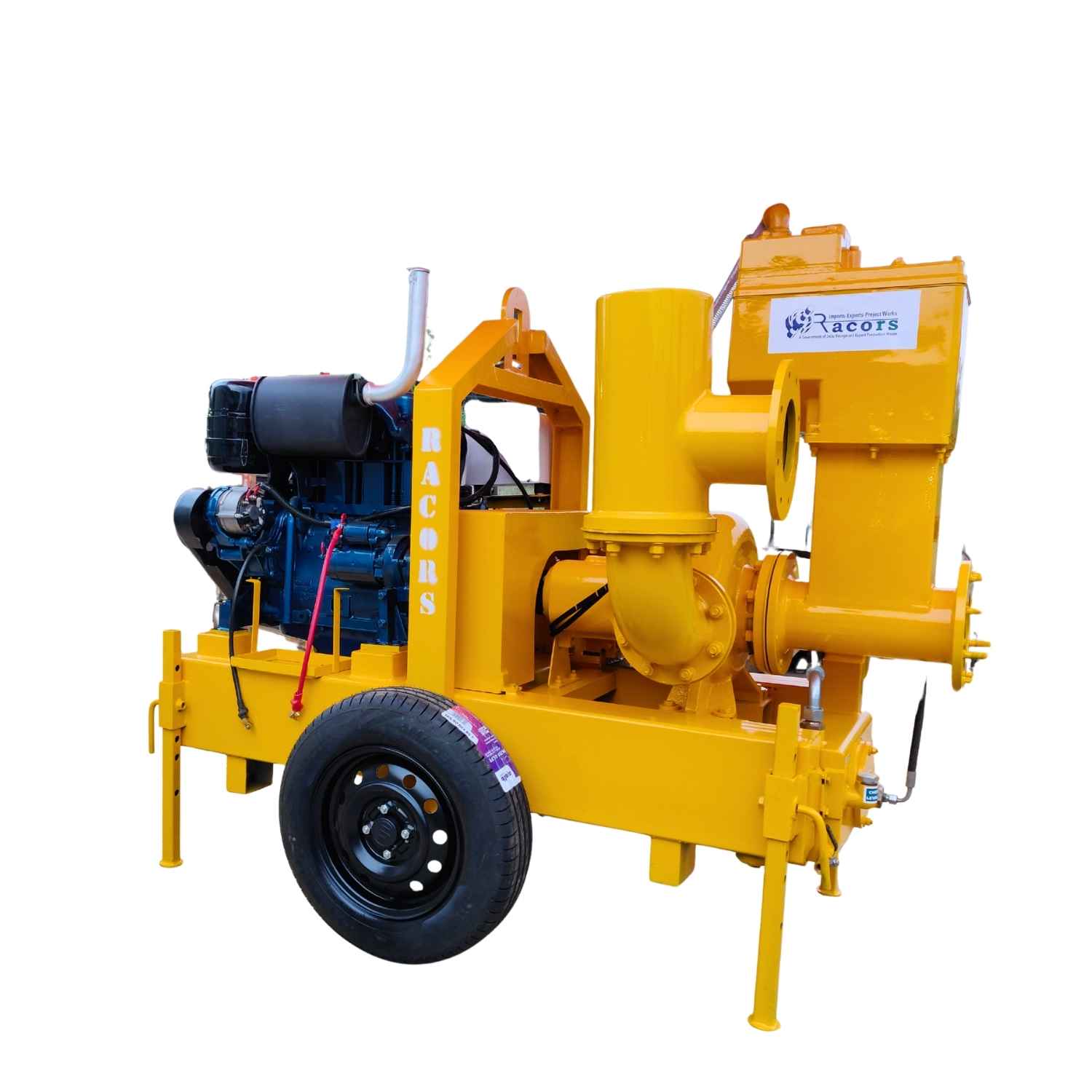

Racors 6-inch Op type dewatering pumps, identified by model number Racors-150 OP, feature a priming tank constructed from aluminum and a side discharge volute casing. These fast-moving dewatering pumps are widely utilized in the Kingdom of Saudi Arabia. Recently, we supplied 12 units of Op type dewatering pumps to leading dewatering contractors in KSA. Racors is a premier supplier of dewatering pumps for project applications in Saudi Arabia. Our competitively priced and high-quality pumps are operational in construction and oil & gas projects, requiring minimal maintenance.
