6" canopy pump

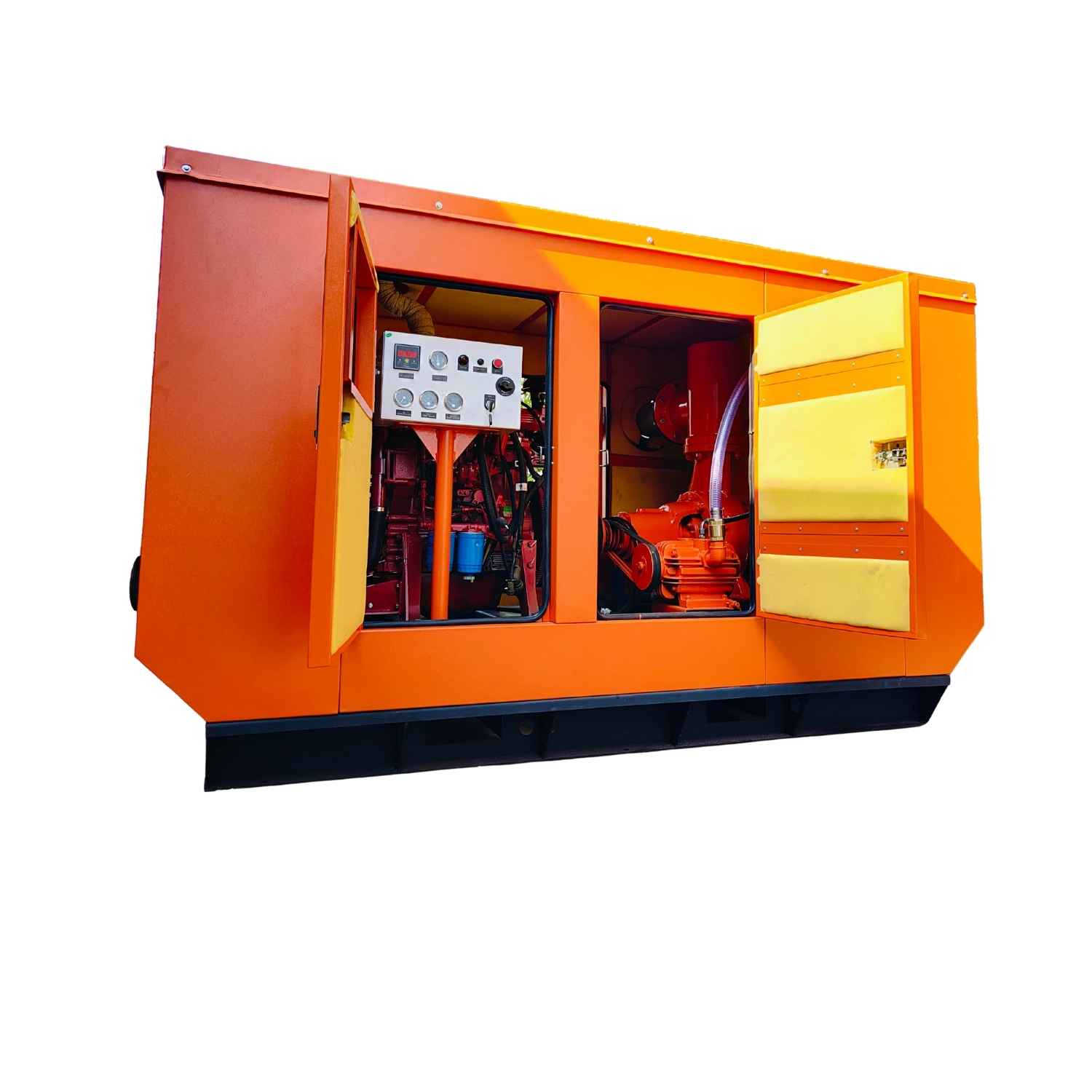

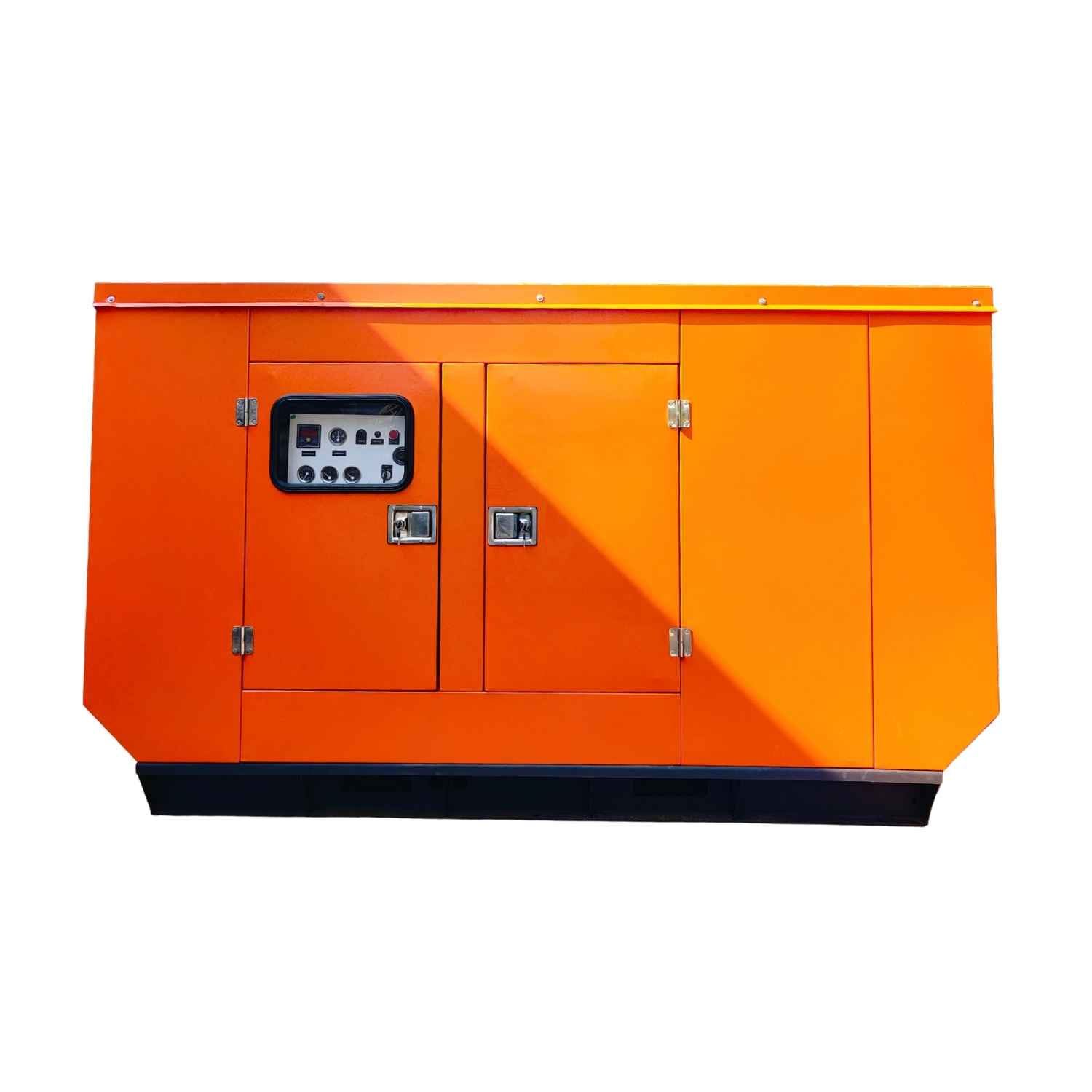

6 inch dewatering pump with canopy
Racors dewatering pumps with canopies are a vital resource in Qatar, offering efficient, durable, and safe solutions for water management across various industries. Their design and features make them particularly well-suited to the environmental and industrial challenges faced in Qatar. Whether it's for construction, mining, or flood control, these pumps are a reliable choice for any dewatering needs.
Pump Specification
6 inch dewatering pump canopy data sheet
Download pdf
| Pump Make | Racors |
|---|---|
| Model | Racors - 150F |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" / 3" |
Engine Specification
The pumps are standardly paired with Kirloskar engines. Upon request, alternative engine brands and electric motors can also be provided.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |

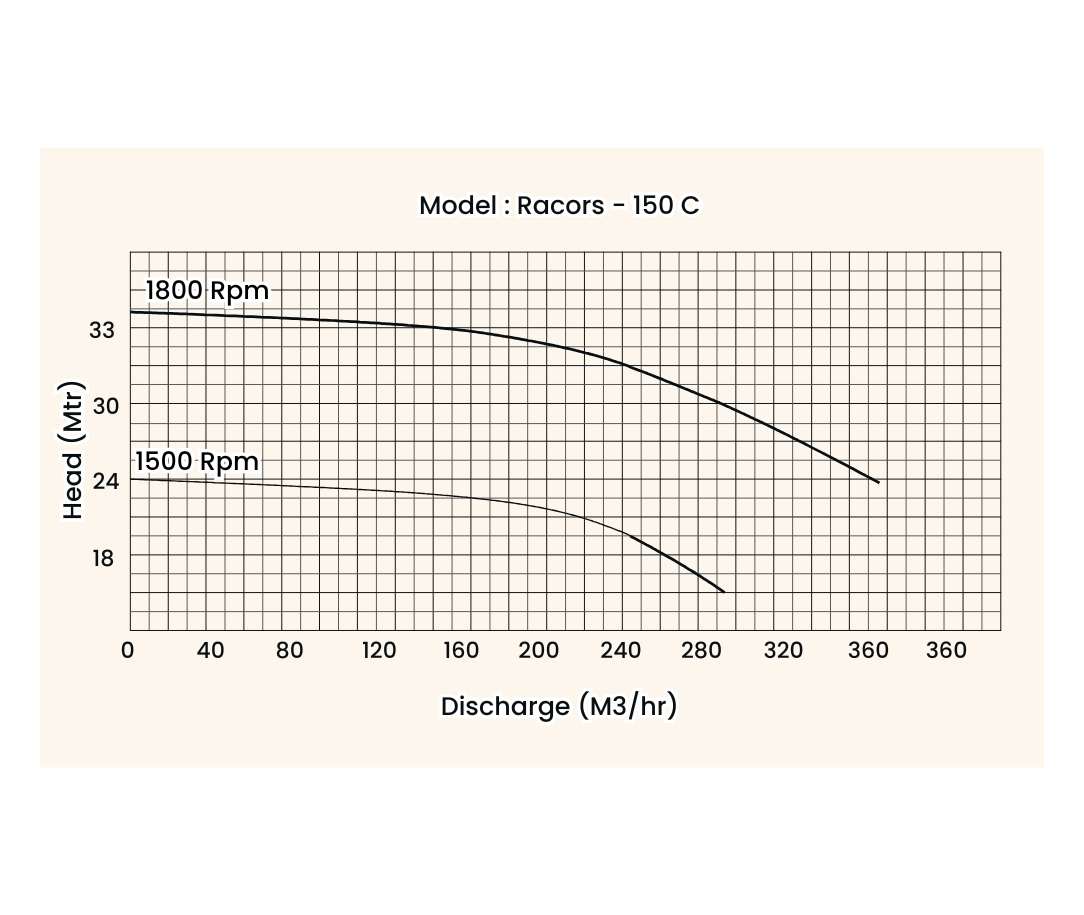

Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight | 2050 kg |
|---|---|
| Length x width x height(cm) | 295 x 131 x 176cm |
| 20ft container | 2 nos |
| 40 ft container | 4 nos |
Racors is a well-known manufacturer of dewatering pumps, which are essential in various industries for the removal of water from construction sites, mining pits, and other locations where water accumulation can be problematic. In Qatar, where construction and infrastructure development are booming, the demand for reliable dewatering solutions is significant. Racors' dewatering pumps with canopies offer an efficient and durable solution for these needs.
Categories :
Weather Protection: The canopy shields the pump from extreme weather conditions, prolonging its lifespan.
Noise Reduction: The canopy also acts as a sound barrier, reducing noise pollution, which is particularly beneficial in urban construction sites.
Enhanced Safety: With protective enclosures, these pumps offer safer operation, reducing the risk of accidents.
