6" dewatering pump

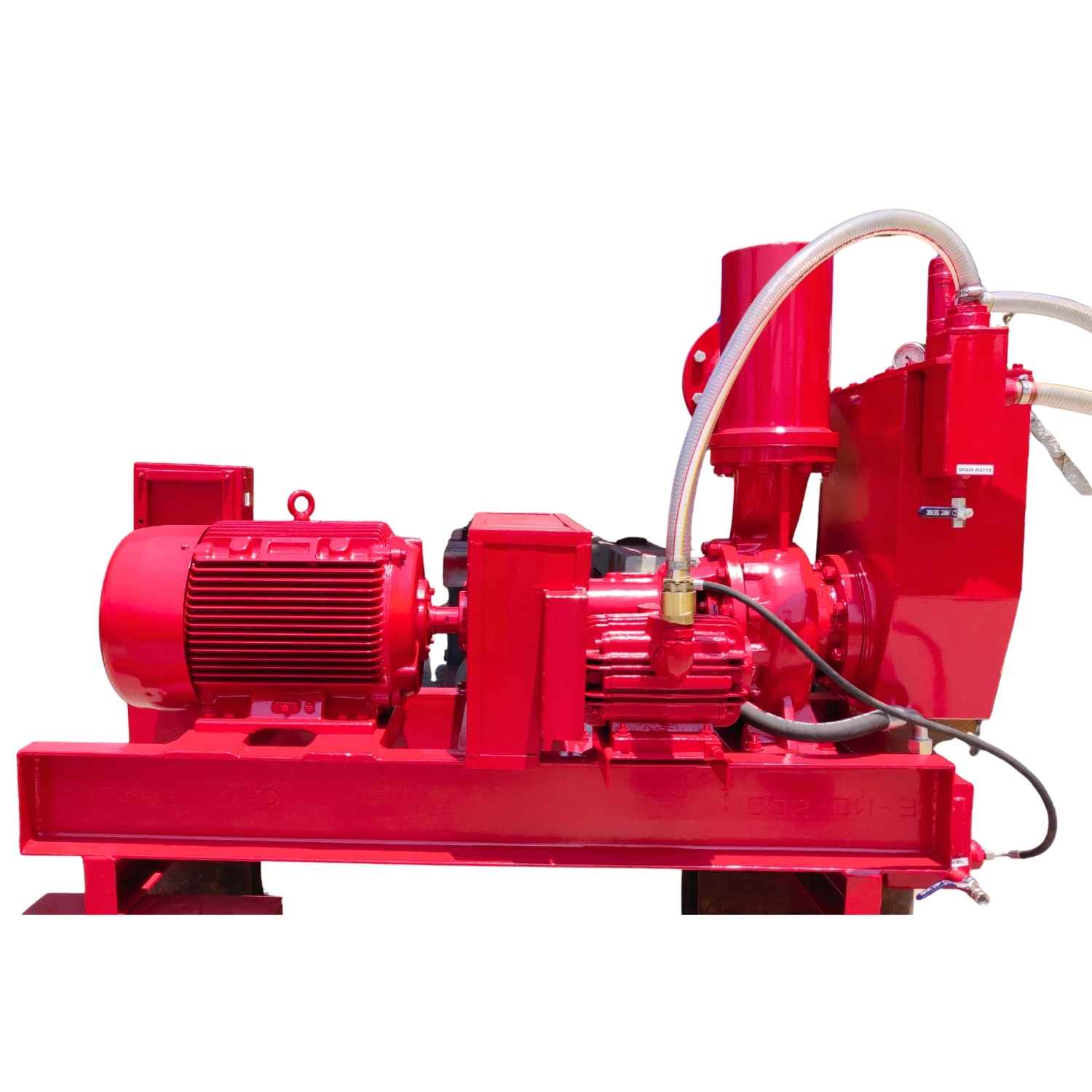

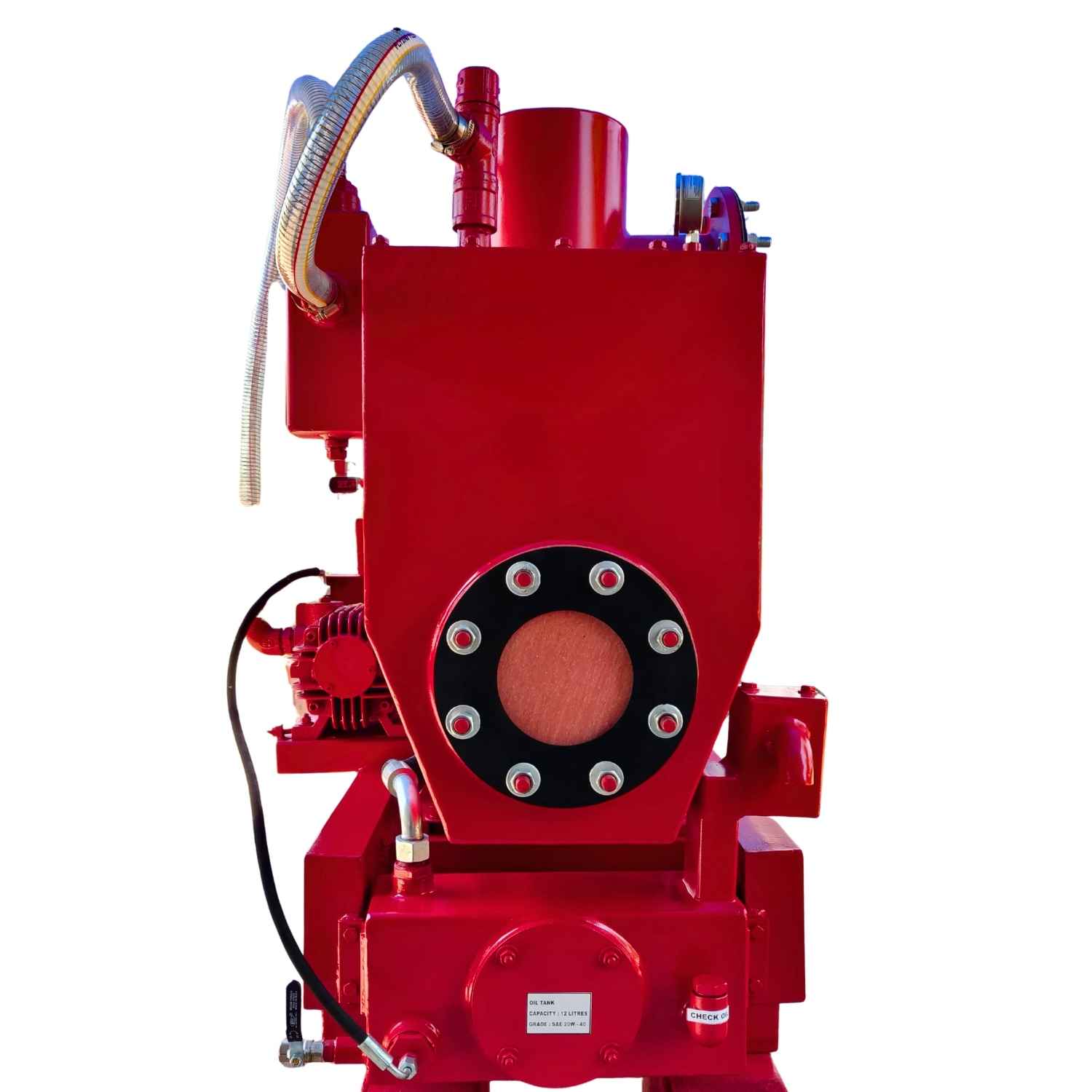

6 inch dewatering pump with electric motor
These pumps are appropriate for dewatering, construction, oil and gas, mining, seawater transfer, marine applications, sewage, drainage pumping, irrigation, and infrastructure development. The suction and discharge dimensions are 150 x 150 mm, featuring a closed type impeller with a mechanical seal. (An open type impeller can also be provided upon request).
Pump Specification
6 inch dewatering pump data sheet
Download pdf
The technical specifications for 6-inch dewatering pumps are outlined below
| Pump Make | Racors |
|---|---|
| Model | Racors - 150 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are typically connected to Kirloskar engines. Additionally, other engine manufacturers like Deutz, Eicher, and electric motors are available if requested.
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |

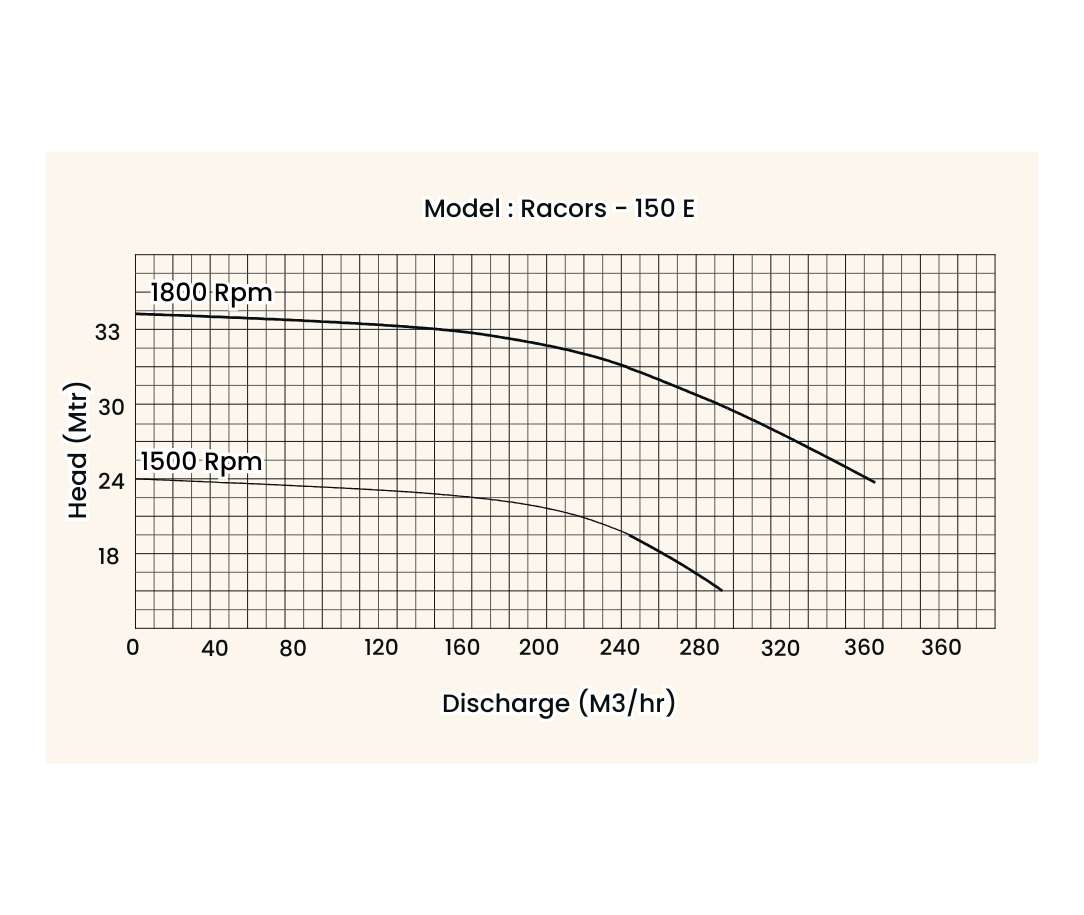

Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Weight & Dimensions
| Weight without engine | 550 kg |
|---|---|
| Weight with engine | 950 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 6 nos |
| 40 ft container | 12 nos |

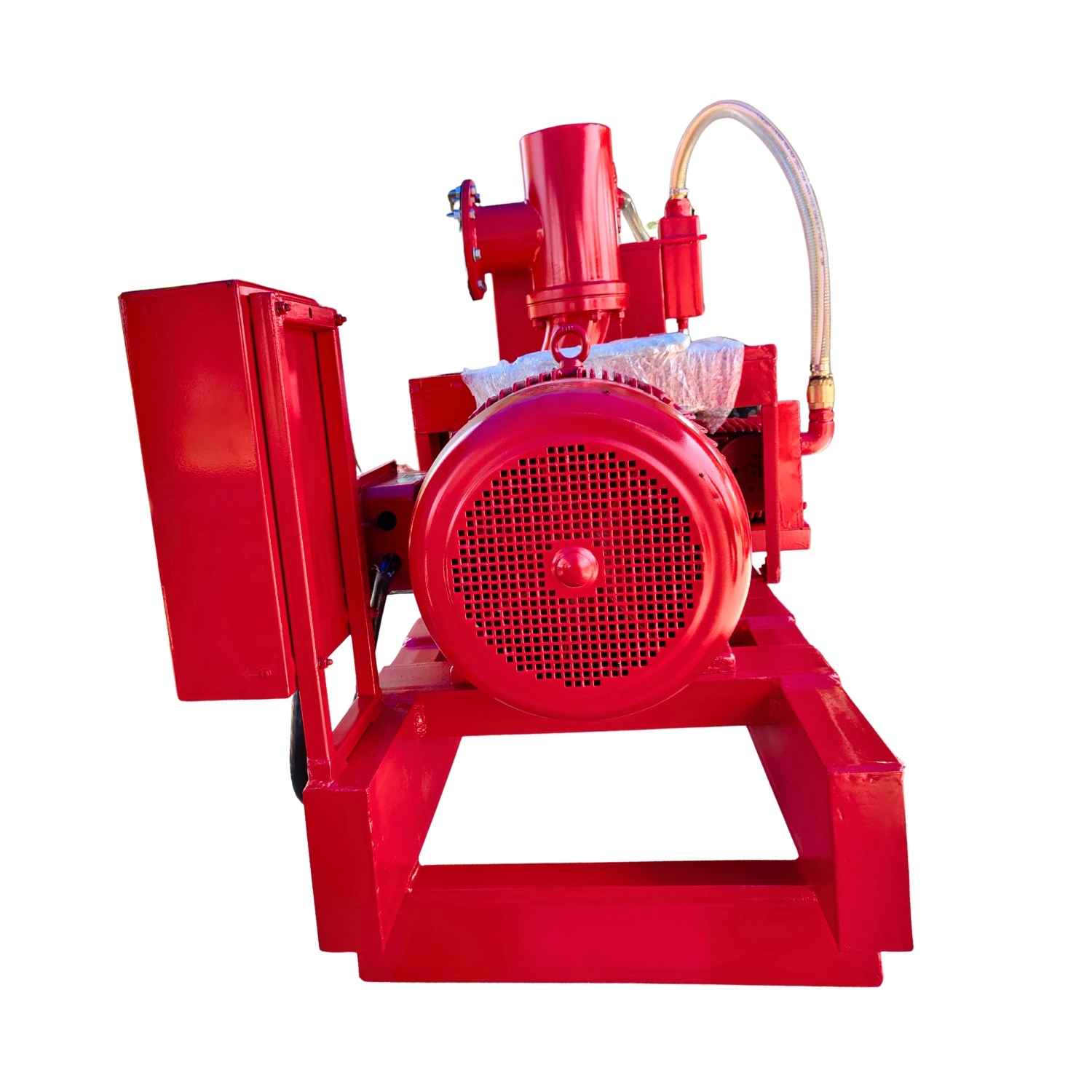

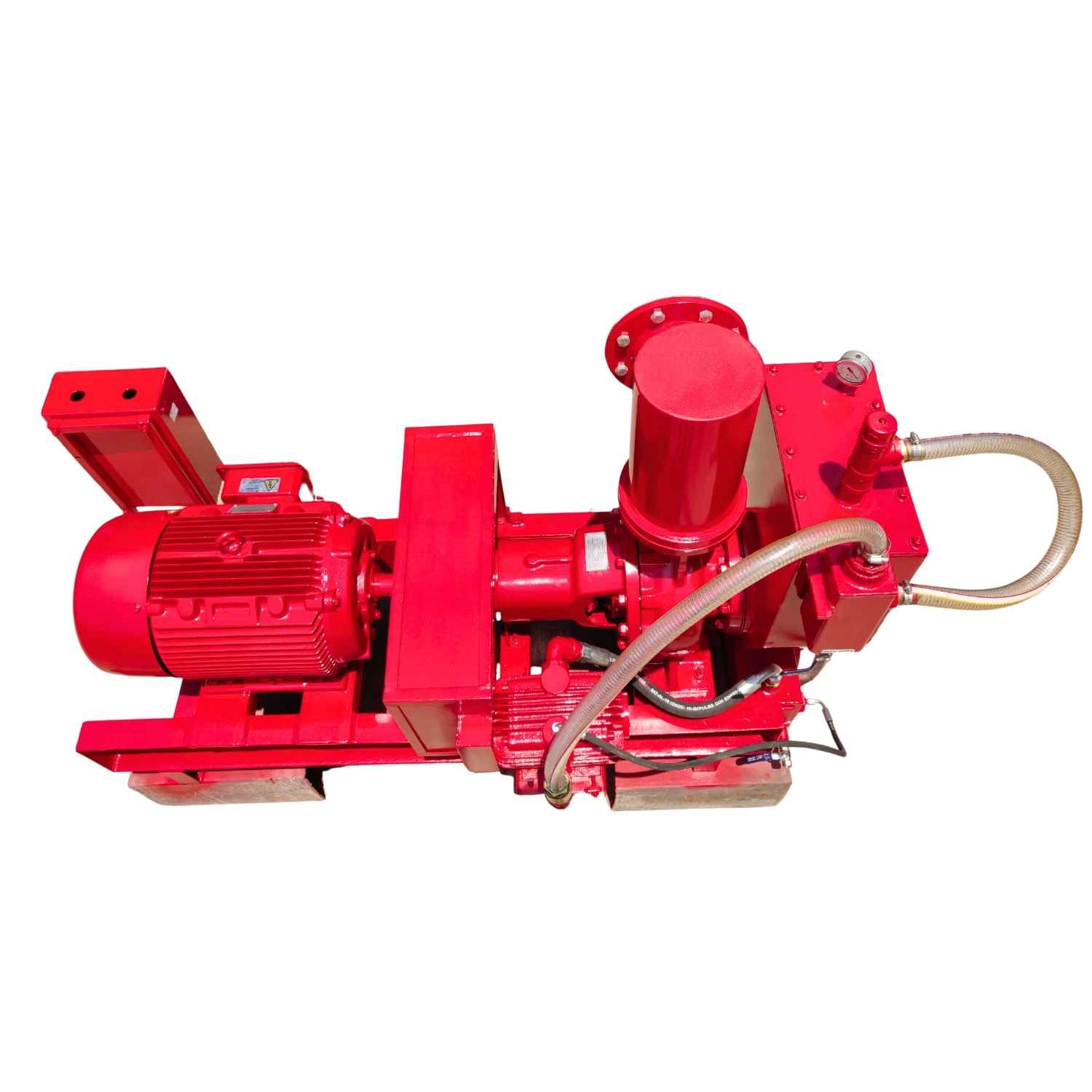

Racors 6-inch dewatering pumps equipped with an electric motor, specifically model no. Racors-150EM, utilize either a Kirloskar or Crompton make electric motor to connect with the dewatering pump. We have provided these dewatering pumps to leading dewatering companies in Nigeria, Uganda, and other African nations. Racors ranks among the premier suppliers of dewatering pumps in African countries for diverse construction and mining projects. We have exported electric-driven dewatering pumps to Uganda, Nigeria, Kenya, South Africa, Namibia, Zimbabwe, Zambia, and Papua New Guinea.
