8" dewatering pump
8 inch dewatering pump special edition
These pumps are ideal for dewatering, wellpoint, deep well, mining, shoring, piling, offshore, marine, and water treatment applications. The suction and discharge measurements are 200 x 200 mm, featuring a closed type impeller with a mechanical seal. (An open type impeller can be requested as well).
Pump Specification
8 inch dewatering pump data sheet
Download pdf
The technical specifications for 8-inch dewatering pumps are outlined below
| Pump Make | Racors |
|---|---|
| Model | Racors - 200 |
| Vacuum Capacity | 70 cfm |
| Max. Water Flow | 550 m3/hr |
| Suction x Discharge | 8” x 8” (200 mm x 200 mm) |
| Max. Head | 40 mtr. |
| Max. suction Lift | 9 mtr. |
| Max solid handling | 2" |
Engine Specification
The pumps are typically paired with Kirloskar engines. Upon request, alternative engine brands such as Deutz, Eicher, and electric motors can also be provided.
| Engine | Kirloskar HA 494, 4 Cylinder, Air cooled Diesel Engine |
|---|---|
| Capacity | 52 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel |
Performance curve
Material of construction
| Volute Housing | High Grade cast Iron |
|---|---|
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS - 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 183 liters. |
Weight & Dimensions
| Weight without engine | 600 kg |
|---|---|
| Weight with engine | 1100 kg |
| Length x width x height(cm) | 214 x 213 x 153cm |
| 20ft container | 4 nos |
| 40 ft container | 8 nos |

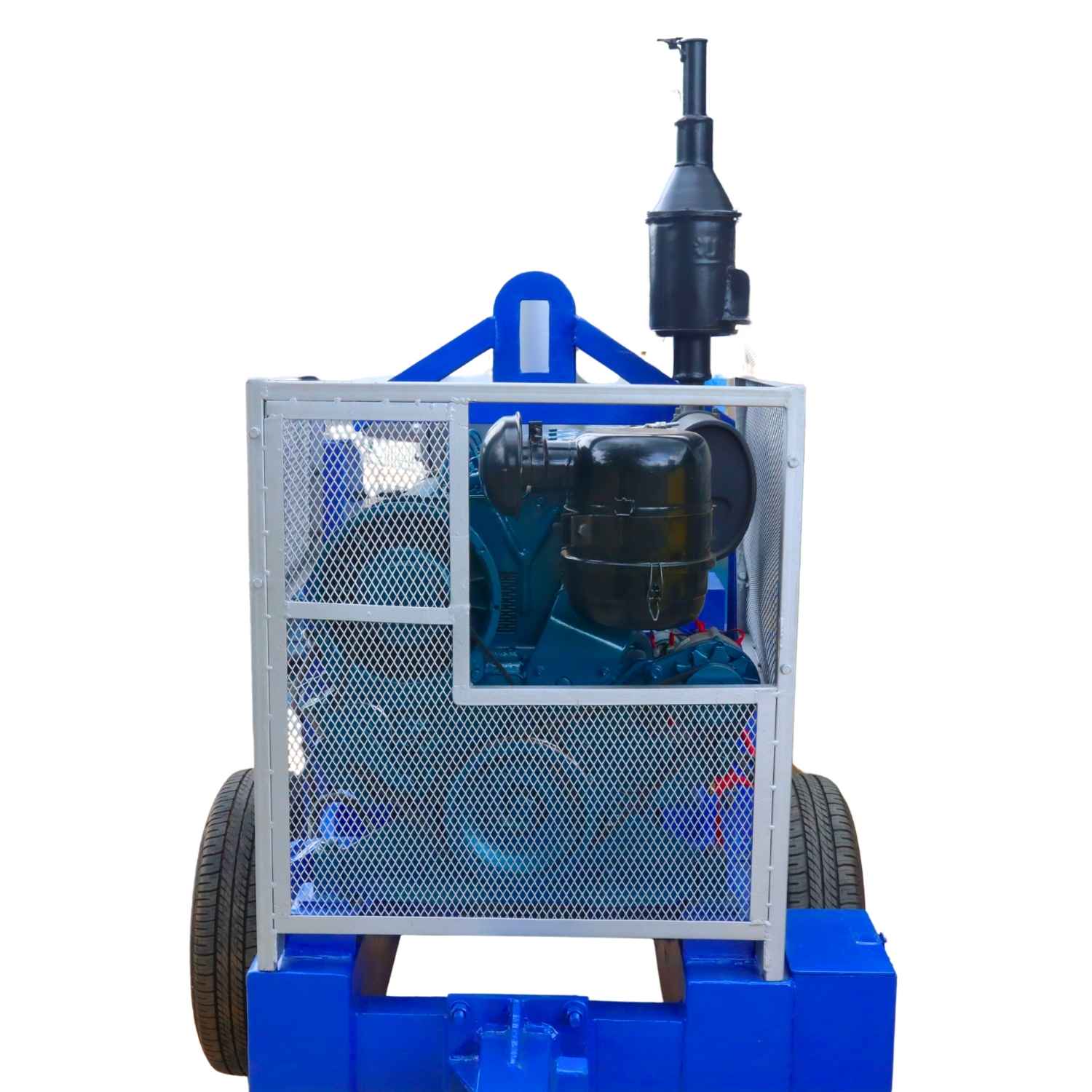

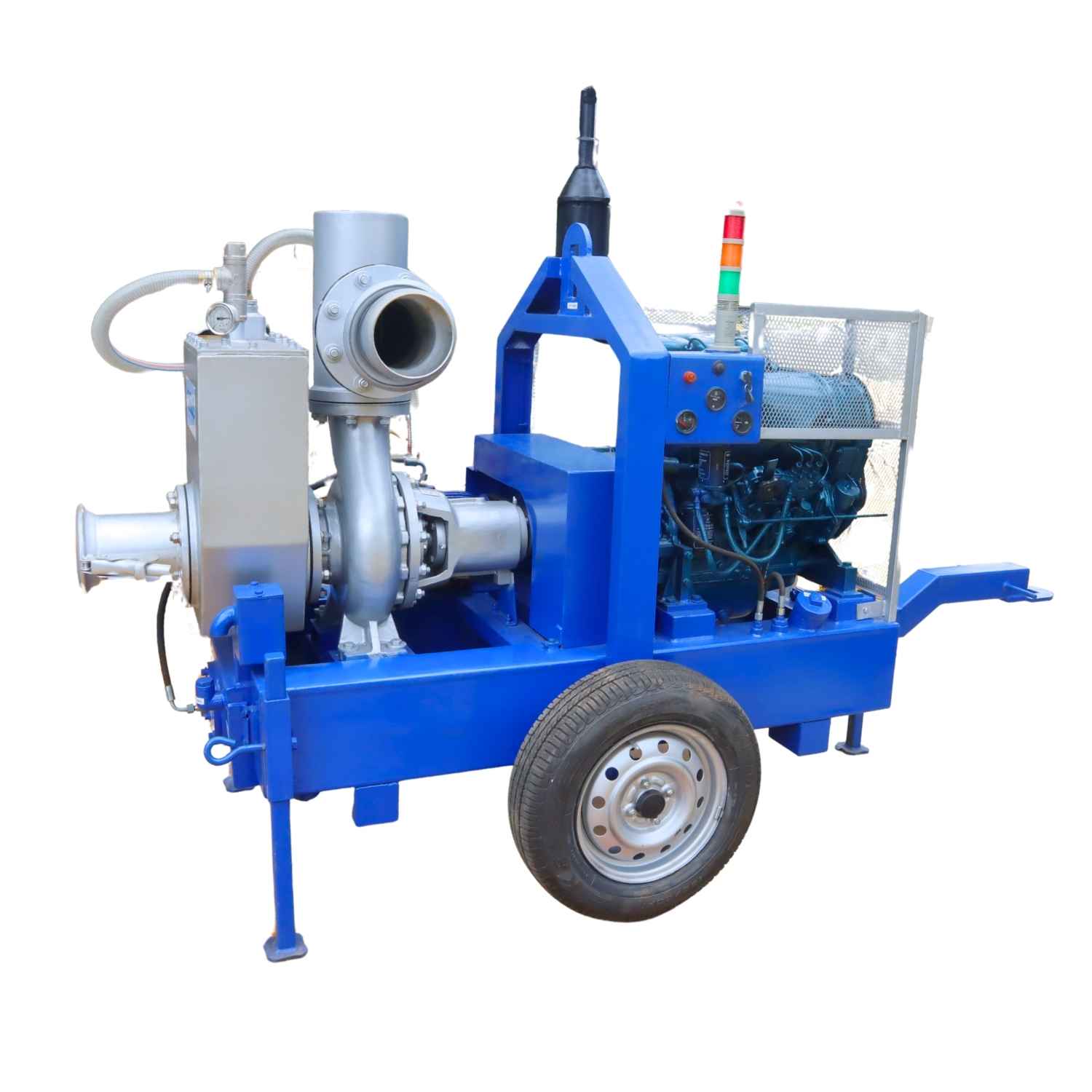

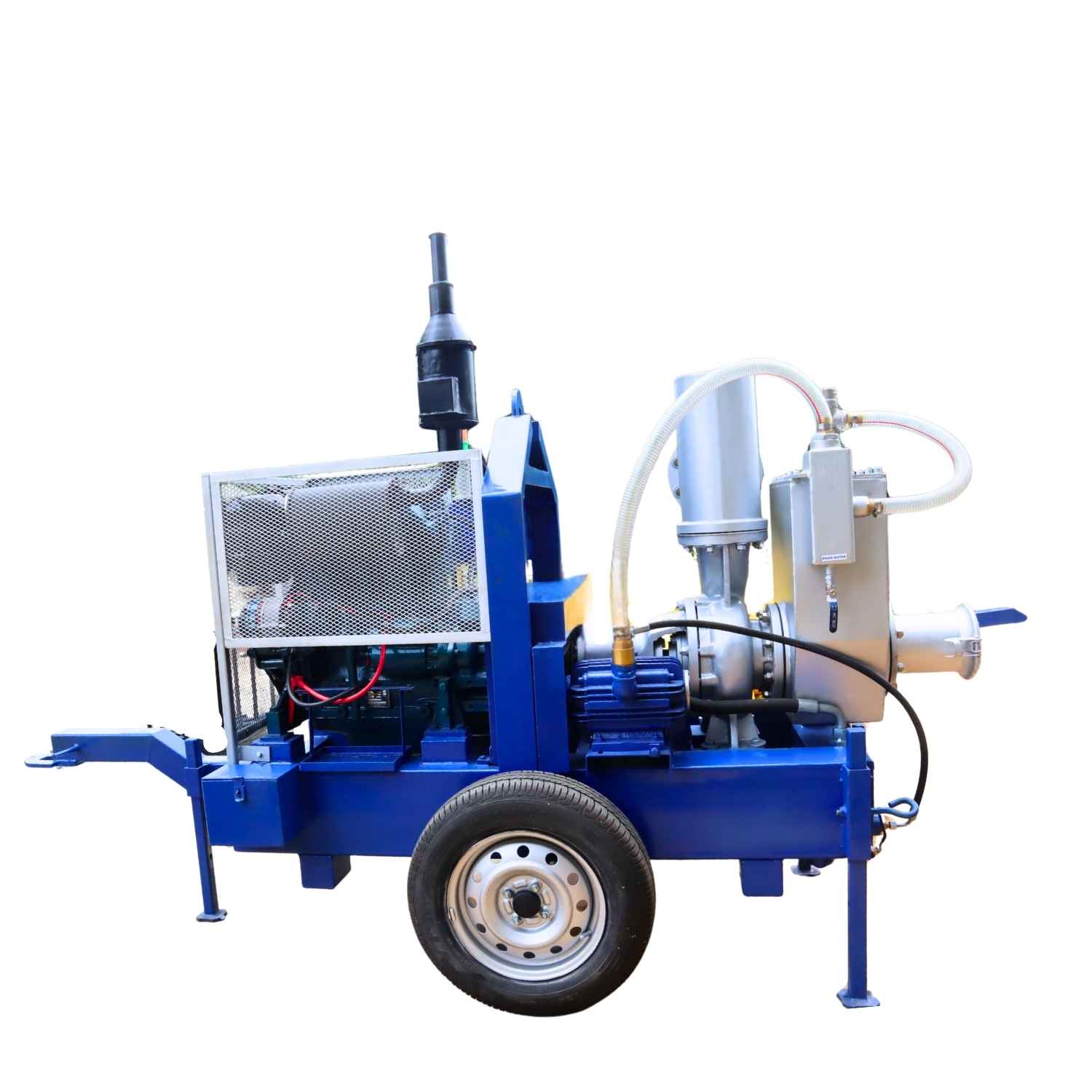

Racors 8-inch dewatering pump special edition, model no. Racors-200SE, features a priming tank, volute casing, and other internal components constructed from stainless steel. This special edition pump is specifically designed for Oil & Gas applications, incorporating additional features such as a belt failure alarm, dry running protection, and an automatic shutdown system.
